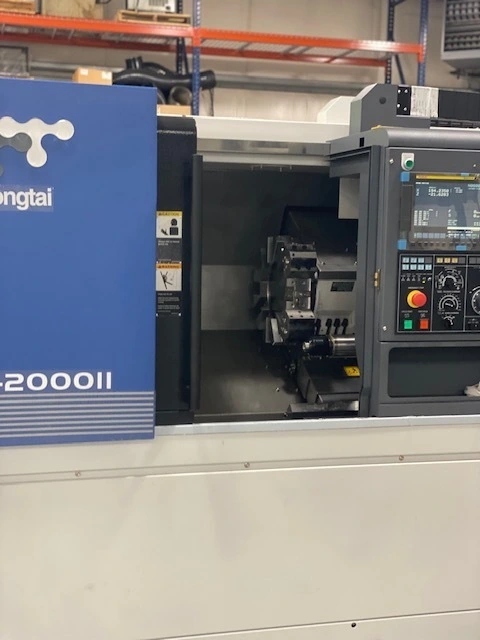

TONGTAI TCS-2000II (New)

Capacities
Swing over bed/Front cover 20.47"
Standard turning diameter 11.8"
Swing over carriage 12.6"
Maximum cross travel (X axis) 5.9" +.787” with 12 station turret)
Maximum longitudinal travel (Z axis) 15.75"
Distance between centers 19.7”

Spindle
Spindle Motor 20 HP
Spindle nose A2-6
Spindle RPM 45-4500 (8” Chuck)
Hole through spindle 2.4"
Bar Capacity 2.01”
Spindle bearing diameter 3.9"
Spindle inside taper M.T. 5

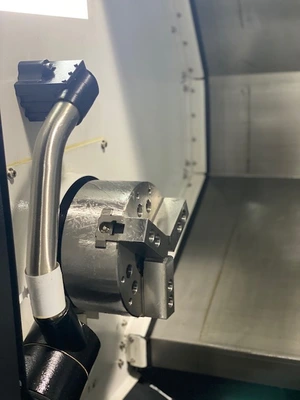

Hydraulic chuck 8” 3-Jaw

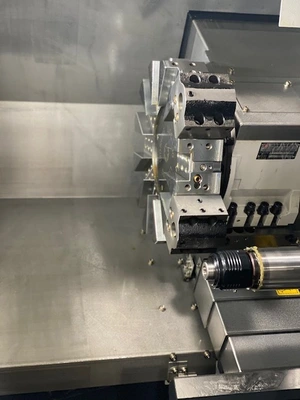

Turret
Turret tool positions 12
Turret type Servo
Tool mounting Block type or VDI
O.D. tool shank size 1”
I.D. tool shank size 1.25”
Index time .23 seconds / .56 seconds 180 degrees

Tailstock
Quill diameter of tailstock 2.95"
Quill stroke of tailstock 3.94"
Quill taper of tailstock M.T. #4
Tailstock body travel (manual) 10.8” (19.7” for TC-2000L)

Ballscrews and axis motors
Z axis ballscrew diameter 32mm (1.25”) x 12 pitch
X axis ballscrew diameter 32mm (1.25”) x 10 pitch
Ballscrew type Class 3 double nut pre-loaded
Ballscrew mounting type Pre-tensioned
X-Z servo motor HP X 2.4HP, Z 2.4HP
Servo motor mounting Direct coupled

Feeds
Rapid Traverse Rate X, Z 1181, 1181 IPM
Cutting feed rate 0.0001 - 19.7 IPR
Positioning accuracy +/- .0002" full stroke
Repeatability .0001"
