2022 HAAS ST-25Y
Have one to sell?
ConditionUsed
1 available

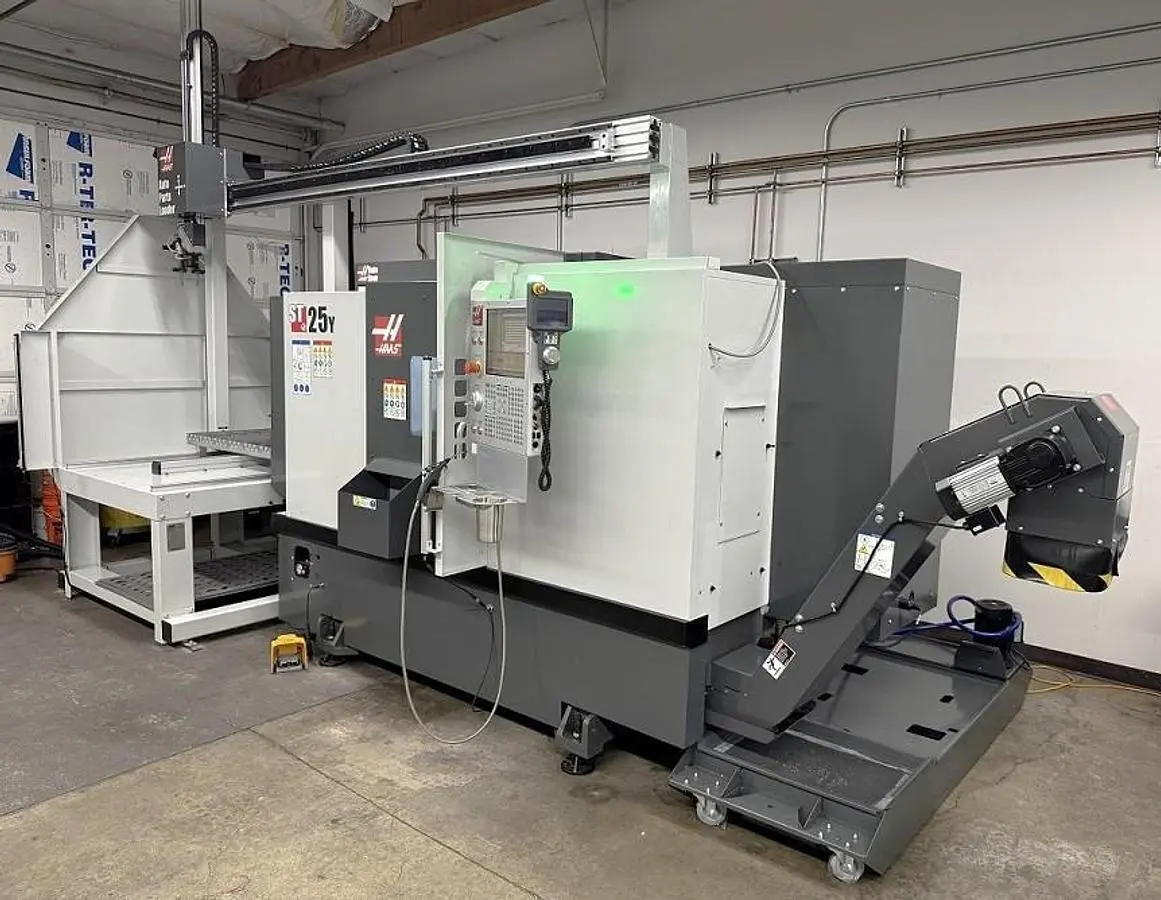

Used CNC Lathe. Featuring a 31.75" swing, 21" machining length, and 10" hydraulic chuck. Equipped with powerful 30 HP spindle, live tooling, Haas Auto Parts Loader, and more.
Chuck Size 10" 3-Jaw Hydraulic
Maximum Swing Over Cross Slide 21"
Maximum Machining Diameter 11.75"
Maximum Machining Length 22.5"
Maximum Bar Capacity 3.0"
X-Axis Travel 8.4"
Y-Axis Travel +/- 2.0"
Z-Axis Travel 22.5"
C Axis Spindle Rotation 0.01 Degree
Spindle Nose / Spindle Bore A2-6" / 3.5"
Spindle Speeds 3,400 RPM
Spindle Motor 30 HP
Spindle Torque 300 ft./lbs. @ 500 RPM
Rotary Tool Speed / Rotary Motor 6,000 RPM / 5 HP
Number of Turret Positions 12 Bolt on Style - BMT65 Type
Rapid Traverse Rates X, Y / Z 472 IPM / 945 IPM
Tailstock Taper MT #4
Machine Dimensions LxWxH 142" x 90" x 92" less loader
Machine Weight 12,300 lbs.
C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Live Milling Option
Y Axis Capability

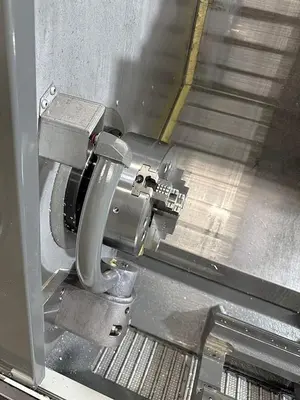

10" 3 Jaw Hydraulic Chuck

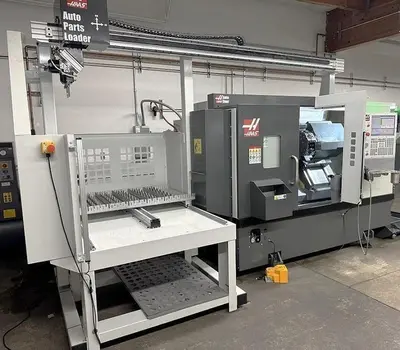

Haas Automatic Parts Loader System
Auto Door
Chip Conveyor - Belt Type
Auto Parts Catcher
Tool Presetter
Auto Jet Air Blast
Wireless Intuitive Probing System
Remote Jog Handle
Coolant System with Tank & Pump
