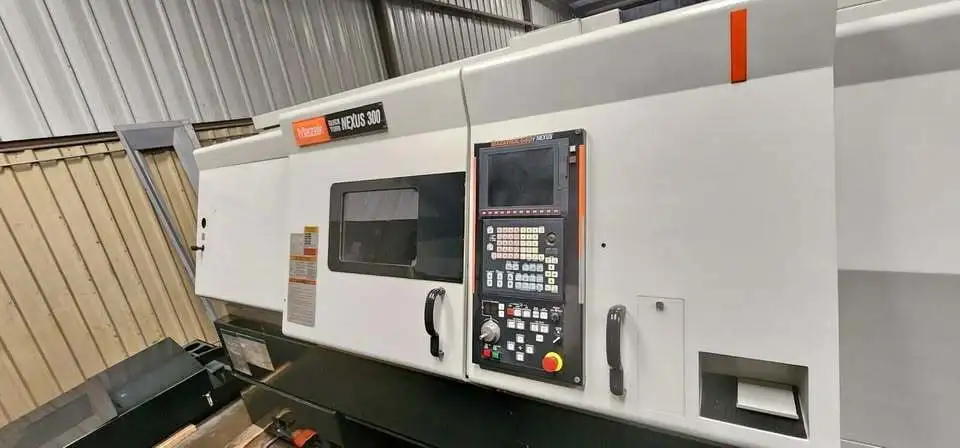

2006 MAZAK QUICK TURN NEXUS 300
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition. Equipped with Mazatrol 640T Nexus CNC, 10” Kitagawa B210 Chuck, automatic tool eye, and more. With a 24” swing and 16.5” max turning diameter.
Swing Over Bed: 24.0”
Max Turning Diameter: 16.5”
Distance Between Centers: 50”
Spindle Bore: 3.46” (3" Bar Capacity)
Spindle Speed: 3,300 RPM
Spindle Motor: 35 HP (Integral Spindle Motor)

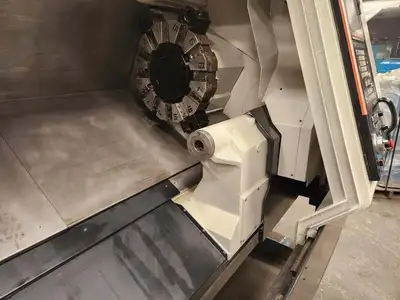

ATC Capacity: 12 Station Turret
X-Axis Travel: 9.125”
Z-Axis Travel: 51.5”
Electrics: 230/460 Volt, 3 Phase
Dimensions: 144” L x 84” W x 84” H
Weight: Approx. 14,000 lbs.

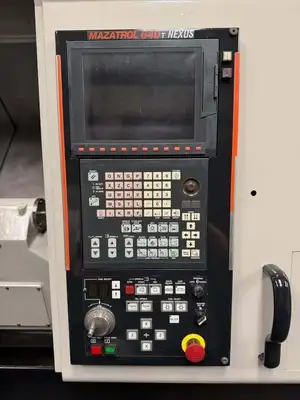

Mazatrol 640T Nexus CNC Control

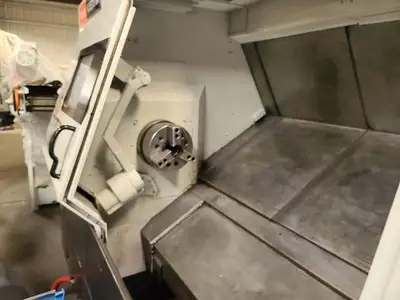

10” Kitagawa B210 Hydraulic Chuck
Automatic Tool Eye
Programmable Tailstock
Chip Conveyor
Coolant System
Full Enclosure
