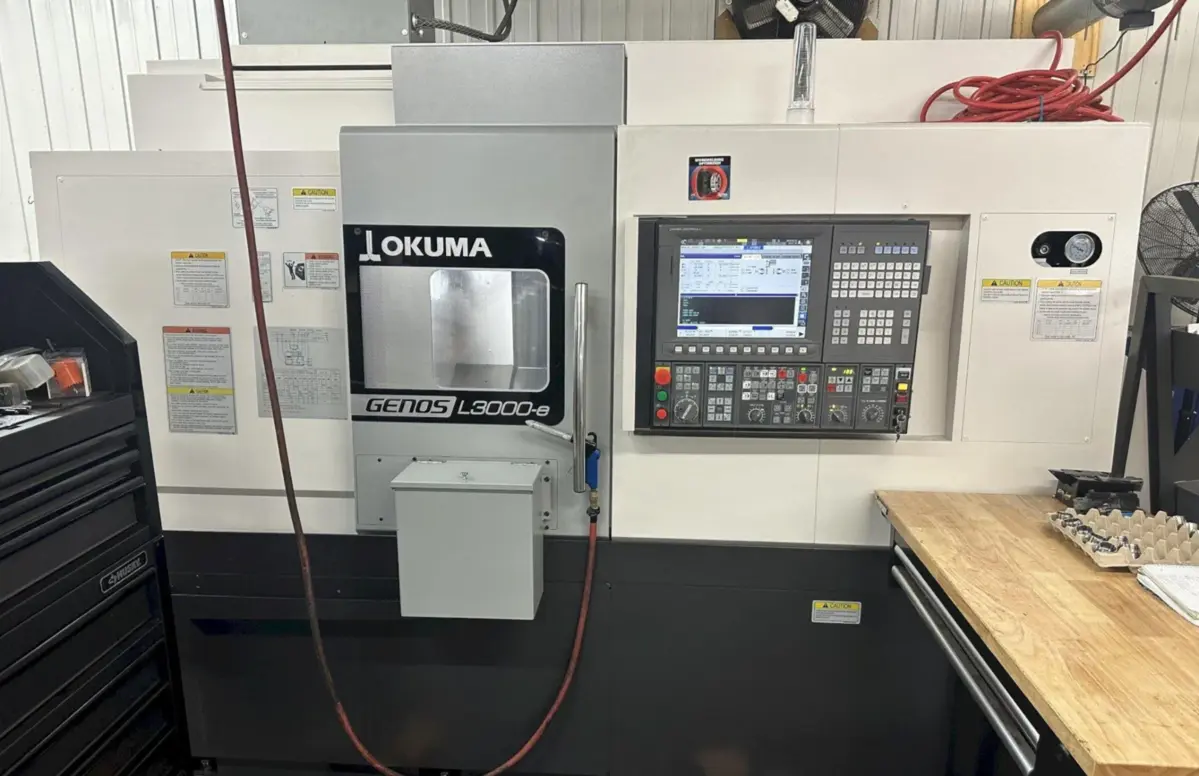

2024 OKUMA Genos L3000MYW-EX
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used, features a swing of 20.47", 2-axis, 10" chuck, 3.15" bar capacity, 20 hp power, and max 3,000 RPM. Includes OSP-P300LA-e CNC control, chip conveyor, programmable tailstock, and Marposs tool presetter. Only 105 cutting hours.
# Axis 5
Swing 20.47 in 519.94 mm
Turning Diameter 15.35 in 389.89 mm
Center Distance 20.47 in 519.94 mm
Chuck Size 10 in 254.00 mm
Bar Capacity 3.15 in 80.01 mm
X Axis Travel 9.25 in 234.95 mm
Y Axis Travel 3.94 in 100.08 mm
Z Axis Travel 18.11 in 459.99 mm
B Axis Travel (Sub Spindle) 20.47 in 519.94 mm
C Axis Index 0.001°
Spindle Nose A2-8
Spindle Speed 3,800 rpm
Main Motor 30 hp
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Sub Spindle Nose 140 Flat
Sub Spindle Chuck 6 in 152.40 mm
Sub Spindle Bar Capacity 2.09 in 53.09 mm
Sub Spindle Speed 6,000 rpm
Sub Spindle Motor (HP) 10 hp
Turret Capacity 12 12
Machine Dimensions 120" x 79" x 90"
Machine Weight 13200 lb 5,987.41 kg

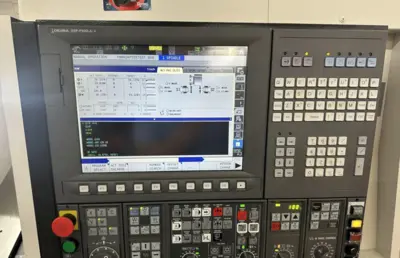

- Okuma OSP-P300LA-e CNC Control

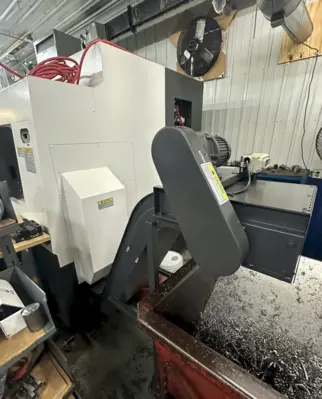

- Chip Conveyor
- 10" 3-Jaw Hydraulic Chuck (Main Spindle)
- 6" 3-Jaw Hydraulic Chuck (Sub Spindle)
- Bar Feed Interface
- Parts Catcher
- (4) Live Tool Holders

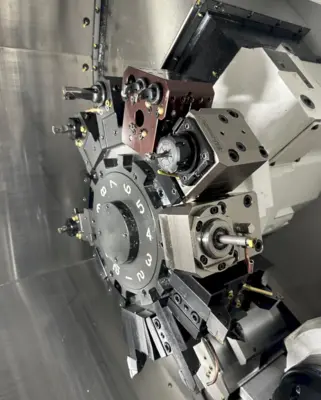

- Static Holders As Shown on Turret Included
- Live Tooling
- Sub Spindle
- Y Axis
- One Touch IGF (Conversational Programming)
- Collet Chuck Shown NOT INCLUDED
