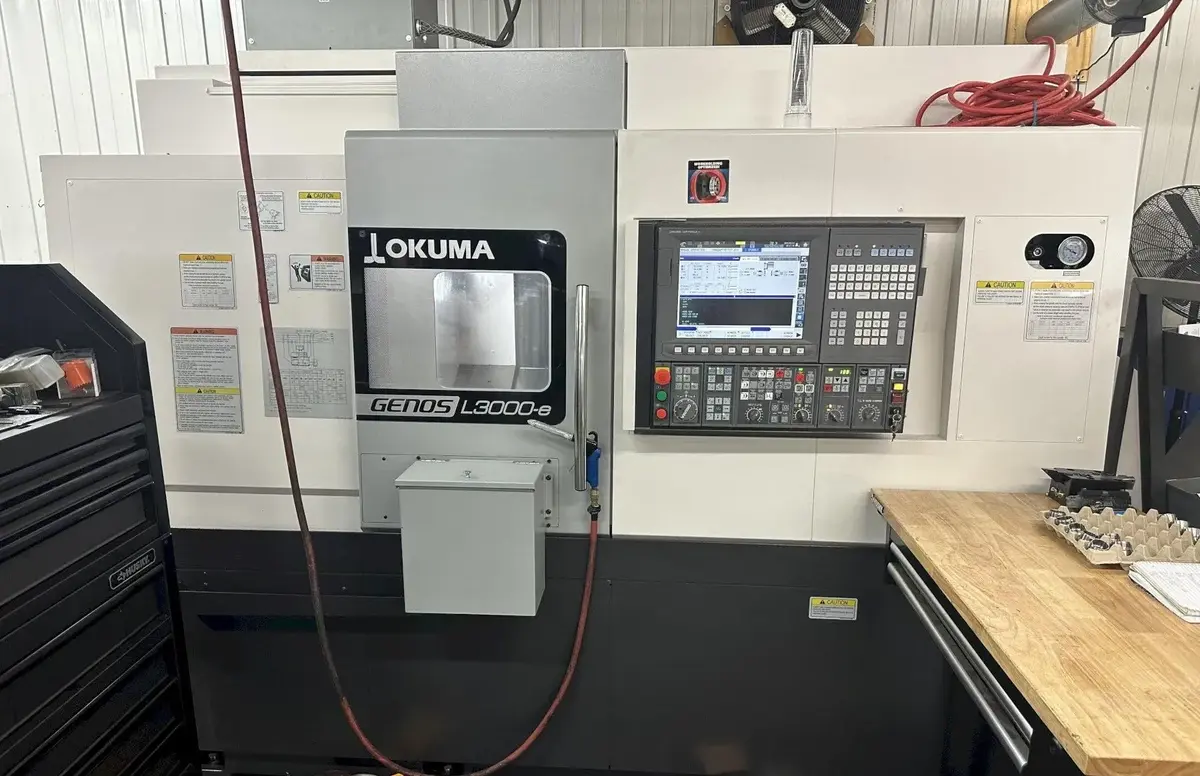

2024 Okuma Genos L3000MYW CNC Lathe with Y-Axis & Sub Spindle
Have one to sell?
ConditionUsed
1 available
This 2024 Okuma Genos L3000MYW CNC lathe pairs Y-axis live tooling with a 6" sub spindle and shows approximately 35 cutting hours. Its main spindle runs a 10" hydraulic chuck with 30 HP and 3,800 RPM, offering 20.47" of swing and a 15.35" max turning diameter.
X Travel: 9.25"
Y Travel: 3.94"
Z Travel: 18.11"
Sub Spindle Travel (B-Axis): 20.47"
Center Distance: 20.47"
C-Axis Index: 0.001°
Spindle Nose: A2-8
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 7.5 HP
Sub Spindle Nose: 140 Flat
Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 2.09"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 10 HP

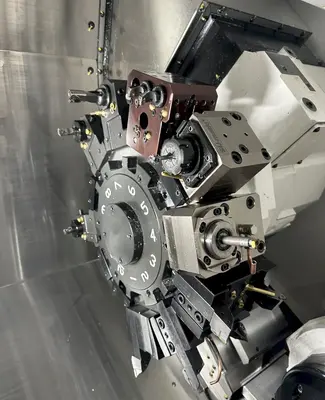

Turret Capacity: 12

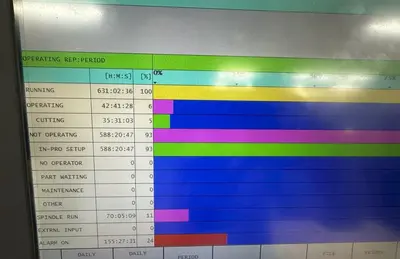

Approximately 35 Cutting Hours
Approximate Dimensions: 120" x 79" x 90"
Approximate Weight: 13,200 lbs

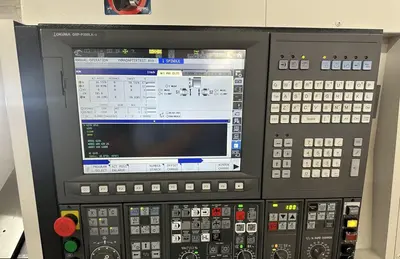

Okuma OSP-P300LA-e Control
Y-Axis

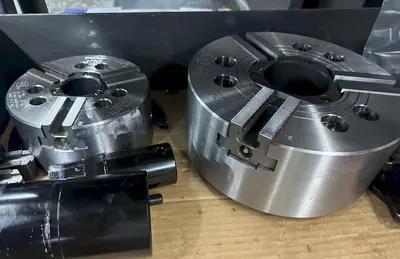

10" 3-Jaw Hydraulic Chuck (Main Spindle)
6" 3-Jaw Hydraulic Chuck (Sub Spindle)

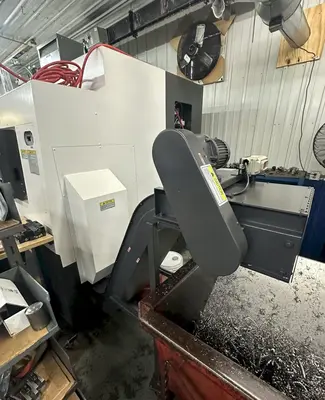

Chip Conveyor
Bar Feed Interface
Parts Catcher
(4) Live Tool Holders
Static Tool Holders (As Shown on Turret)
One Touch IGF Conversational Programming
This 2024 Okuma Genos L3000MYW CNC lathe pairs Y-axis live tooling with a 6" sub spindle and shows approximately 35 cutting hours. Its main spindle runs a 10" hydraulic chuck with 30 HP and 3,800 RPM, offering 20.47" of swing and a 15.35" max turning diameter.
The Okuma Genos L3000MYW, also searched as Genos L3000MYW-EX, Genos L3000 MYW, L3000MYW, or Genos L3000, is a CNC turning center with Y-axis live tooling and a sub spindle (mill-turn).
This 2024 machine has 9.25" of X-axis travel, 3.94" of Y-axis travel, and 18.11" of Z-axis travel, with 20.47" of sub spindle travel and a 12-station turret. Live tooling runs to 6,000 RPM at 7.5 HP, and the sub spindle runs to 6,000 RPM at 10 HP with a 2.09" bar capacity. It comes equipped with an Okuma OSP-P300LA-e control, One Touch IGF conversational programming, a chip conveyor, bar feed interface, parts catcher, four live tool holders, and static tool holders, with approximate dimensions of 120" x 79" x 90" and an approximate weight of 13,200 lbs.
All specifications are approximate, provided by the seller, and subject to buyer verification.
X Travel: 9.25"
Y Travel: 3.94"
Z Travel: 18.11"
Sub Spindle Travel (B-Axis): 20.47"
Center Distance: 20.47"
C-Axis Index: 0.001°
Spindle Nose: A2-8
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 7.5 HP
Sub Spindle Nose: 140 Flat
Sub Spindle Chuck: 6"
Sub Spindle Bar Capacity: 2.09"
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 10 HP
Turret Capacity: 12
Approximately 35 Cutting Hours
Approximate Dimensions: 120" x 79" x 90"
Approximate Weight: 13,200 lbs
Okuma OSP-P300LA-e Control
Y-Axis
10" 3-Jaw Hydraulic Chuck (Main Spindle)
6" 3-Jaw Hydraulic Chuck (Sub Spindle)
Chip Conveyor
Bar Feed Interface
Parts Catcher
(4) Live Tool Holders
Static Tool Holders (As Shown on Turret)
One Touch IGF Conversational Programming
