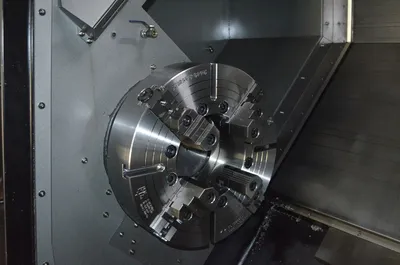

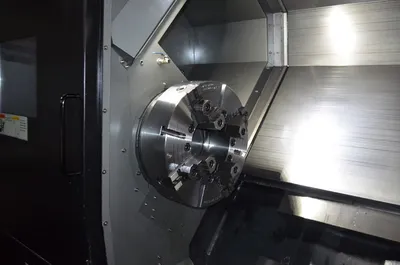

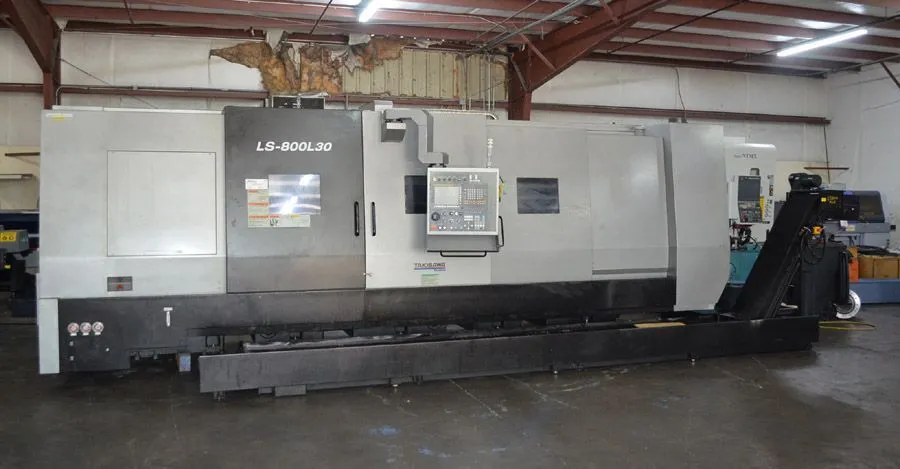

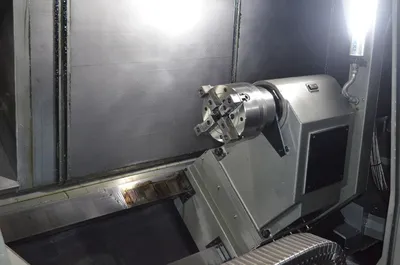

Main Spindle Chuck: 24"
Maximum Swing: 32.68"
Maximum Cutting Diameter: 29.92"
Maximum Machining Length: 120"
Maximum Bar Size: 7.1"
Main Spindle HP: 40/50 HP
Main Spindle RPM: 1200 RPM
Main Spindle Nose: A2-15
Main Spindle Bore: 8.07"

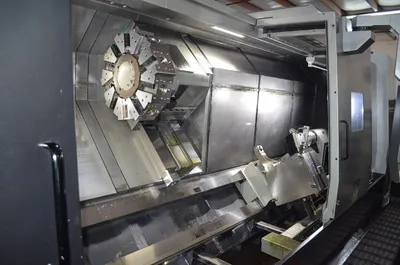

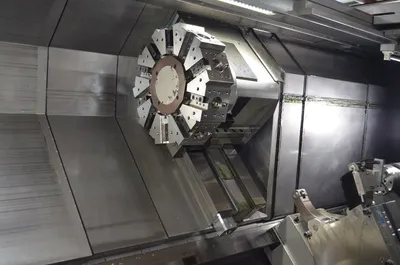

Tool Storage Type: Turret
Number of Tool Stations: 10
X Axis Travel: 15.35"
Z Axis Travel: 124"
Rapid Traverse Rate X: 472 IPM
Rapid Traverse Rate Z: 472 IPM
Tailstock Body Travel: 118.1"
Tailstock Center Stroke: 4.7"
Tailstock Center: MT #5
Floor Space: 101" x 270" x 109"
Machine Weight: 35,500 lbs.
Programmable Tailstock
Programmable Quill
Coolant Pump
Gear Head Spindle
45 Deg True Slant Bed Design

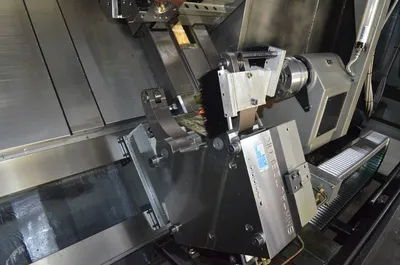

Prep of Auto Pin Base for Autoblok-SLU Steady Rest

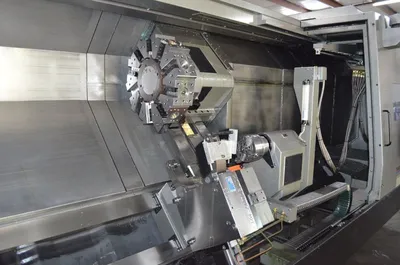

Automatic Steady Rest AUTOBLOK SLU-5.1 (85-350mm)
Heavy Duty Side Discharge Chip Conveyor
