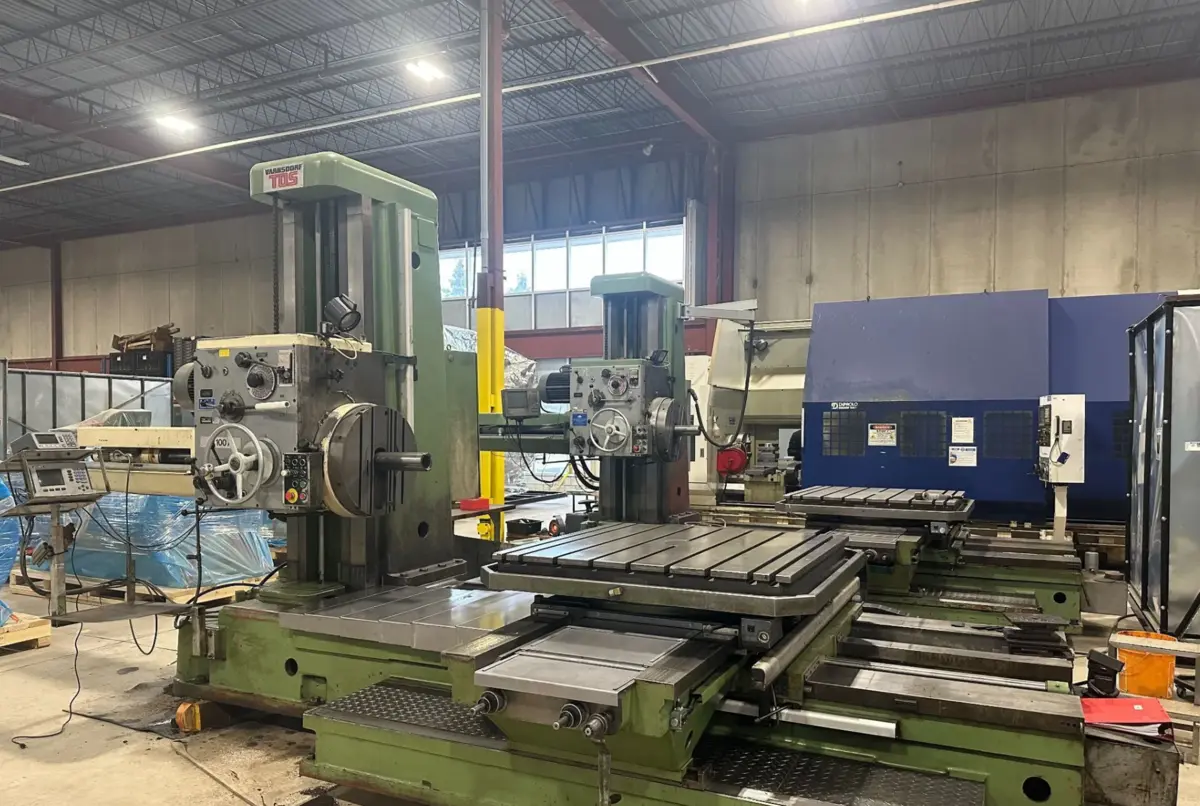

1996 TOS VARNSDORF W100A
Have one to sell?
ConditionUsed
1 available
Used Horizontal Table Type Boring Mill, used but well-equipped with features like a 101.6 mm spindle diameter, 11.2 kW motor, 4-Axis ACU-RITE DRO, and new X/Z axis covers. Spindle speed at 1,120 RPM.
SPINDLE DIAMETER 101.6 mm
SPINDLE TAPER 50 TAPER
X-AXIS - TABLE CROSS TRAVEL 1,600.2 mm
Y-AXIS - VERTICAL TRAVEL OF SPINDLE 1,117.6 mm
W-AXIS - SPINDLE TRAVEL 899.92 mm
TABLE WIDTH 1,249.7 mm
TABLE LENGTH 1,249.7 mm
TABLE LOAD CAPACITY
SPINDLE MOTOR 11.2 kW
SPINDLE SPEED 1,120 RPM
Weight 34,000 LBS
4-AXIS ACU‑RITE DRO DISPLAY & SCALES
NEW HEIDENHAIN DRO DISPLAY FOR B‑AXIS TABLE WITH ROTARY ENCODER TO .001 DEGREE
NEW X‑AXIS COVERS
NEW Z‑AXIS COVER
50 TAPER POWER DRAW BAR WITH VARIOUS PULL STUDS / RETENTION KNOBS
BUILT‑IN FACING HEAD
COOLANT
MACHINE IS WIRED FOR 575V/3/60
