MAX SWING 876.3 mm
MAX CUTTING DIAMETER 647.7 mm
MAX CUTTING LENGTH 1,117.6 mm
X-AXIS TRAVEL 431.8 mm
Z-AXIS TRAVEL 1,117.6 mm
CHUCK SIZE 457.2 mm
BAR CAPACITY 1,651 mm
SPINDLE BORE 177.8 mm
SPINDLE NOSE A2-11
SPINDLE MOTOR 29.8 kW
SPINDLE SPEED 1,400 RPM
RAPID TRAVERSE RATE X-AXIS 1,803.4 cm/min.
RAPID TRAVERSE RATE Z-AXIS 1,803.4 cm/min.

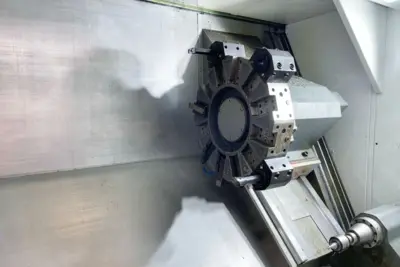

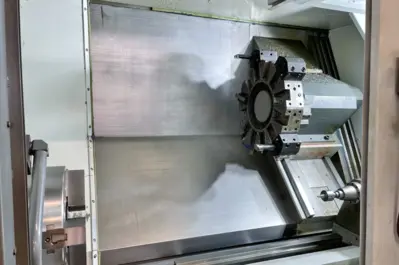

TURRET POSITIONS 12
TURRET TYPE BOLT-ON

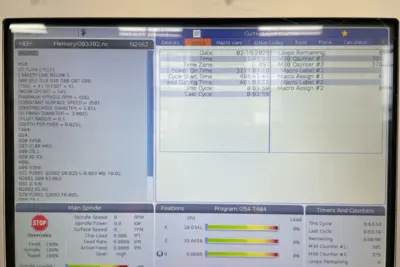

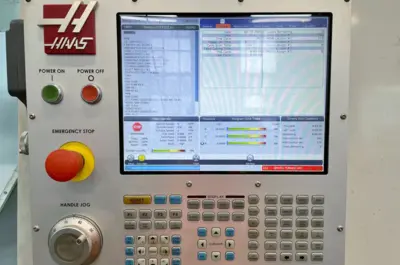

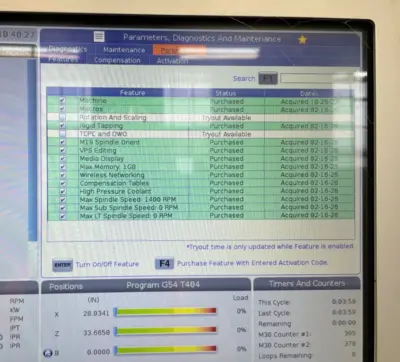

HAAS NEXTGEN CONTROL
2-SPEED GEARBOX

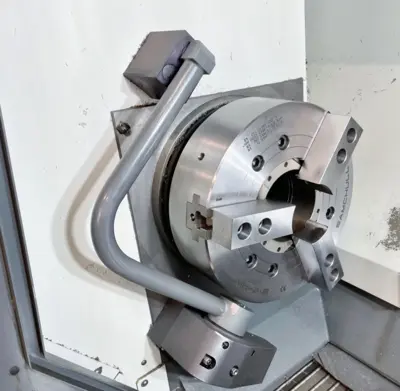

18”, 3-JAW SAMCHULLY HYDRAULIC CHUCK (MH-218)
6.5” BAR CAPACITY
EXTENDED TOOL POCKET (UP TO 33”)

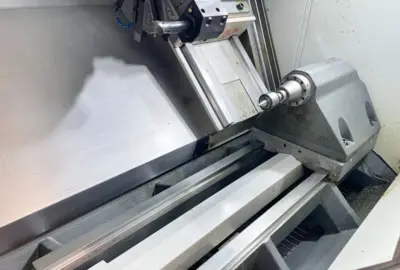

PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR

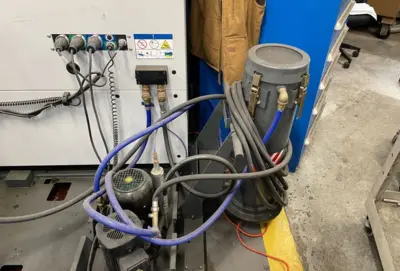

HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
CHIP TRAY FILTER KIT
REMOTE JOG HANDLE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTIVITY
** AS OF MARCH 2026, FEED CUTTING TIME – 465 HOURS
** MACHINE CUT PRIMARILY CARBON STEEL
This equipment is currently unavailable. Similar equipment available now is shown below.
