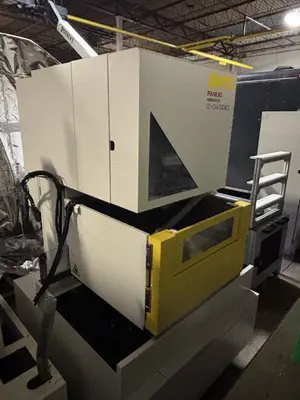

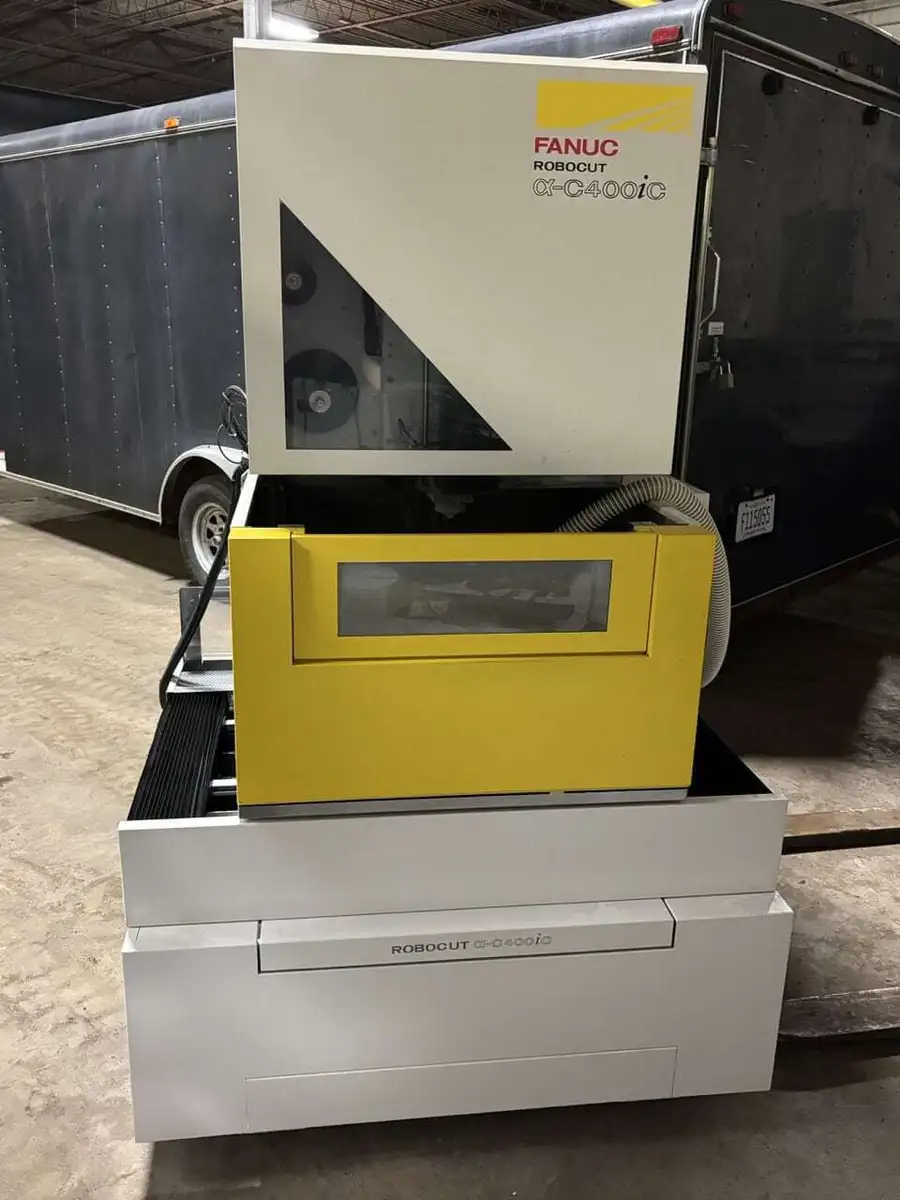

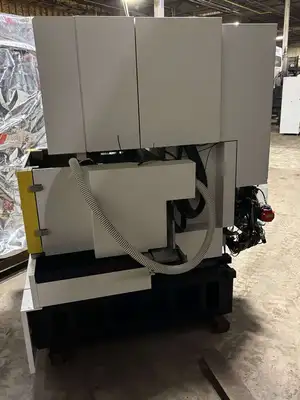

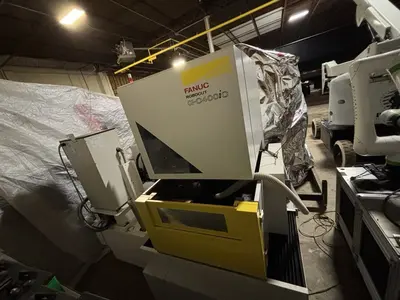

2021 FANUC ROBOCUT ALPHA C400IC
Have one to sell?
ConditionUsed
1 available
Wire EDM in used condition. Features 15.7 x 11.8 x 10.6 in travel, automatic wire threading, and taper cutting. Handles workpieces up to 1,100 lbs. Equipped with FANUC i-series CNC control.
X-Axis Travel: 15.7 in (400 mm)
Y-Axis Travel: 11.8 in (300 mm)
Z-Axis Travel: 10.6 in (270 mm)
U / V Axis Travel: ±2.4 in (±60 mm)
Work Capacity
Maximum Workpiece Size:
Width: 31.5 in (800 mm)
Depth: 24.8 in (630 mm)
Height: 10.6 in (270 mm)
Maximum Workpiece Weight: 1,100 lbs (500 kg)
Wire Diameter Range: 0.006 – 0.012 in (0.15 – 0.30 mm)
Standard Wire Size: 0.010 in (0.25 mm)
Wire Feed System: Automatic wire threading (AWT)
Taper Cutting: Yes (with U/V axes)

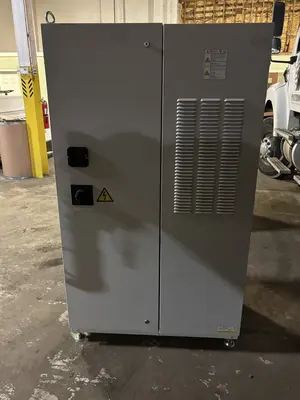

Power Requirement:
200–220V
3-Phase
50/60 Hz

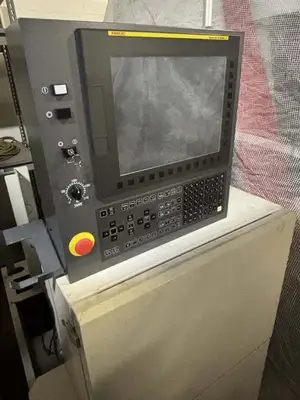

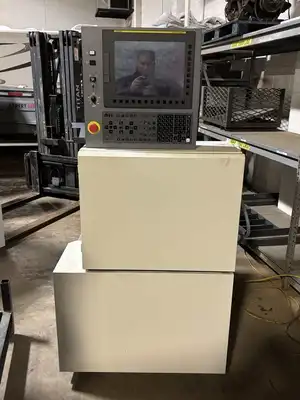

FANUC CNC Control (i-series)
