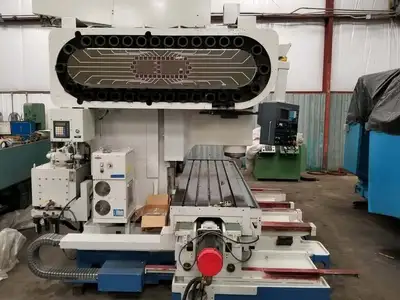

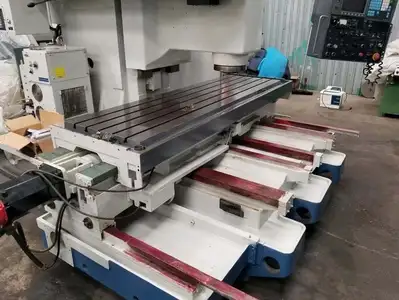

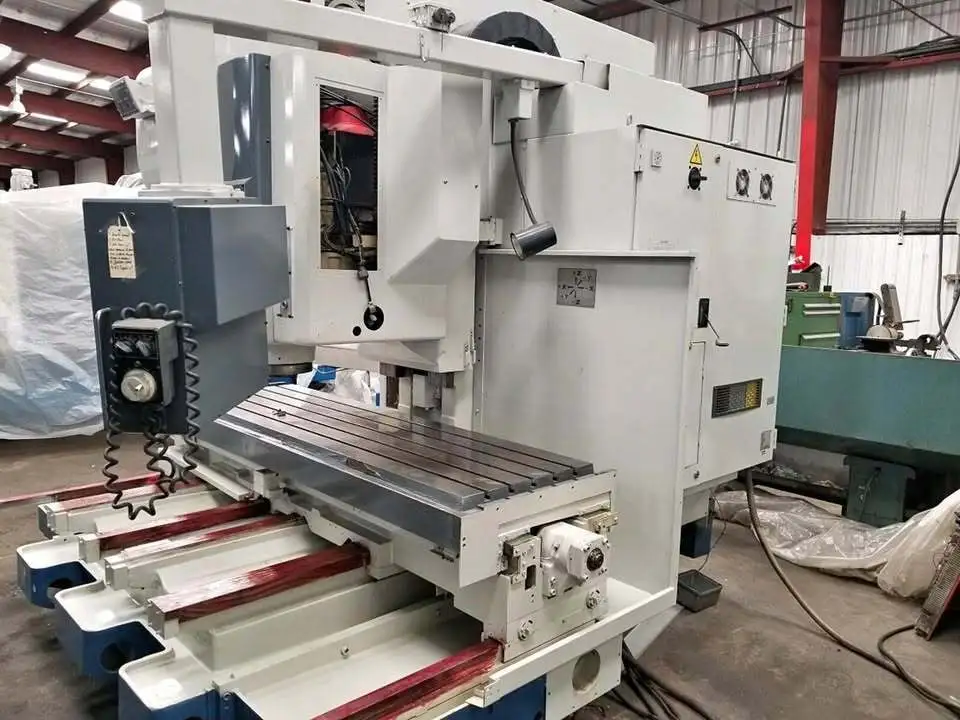

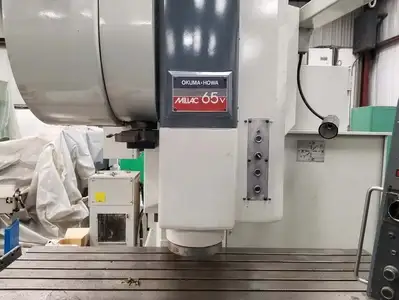

Used vertical machining center, featuring a 94" x 29" table, 4,400 lbs. max load, and 78" x 25" x 22" travel. With 30 tool stations, a CAT 50 spindle, and Fanuc 15M control.
Table dimensions 94” x 29”
Max. tableload 4,400 lbs.
Travels, X x Y x Z 78” x 25” x 22”
Cutting feedrate 0.039—196.86 ipm
Spindle taper CAT 50
Tool stations 30 stations
Tool changetime 5 seconds
Chip tochip -10 seconds
Spindle speeds 20-3,600 rpm (2 steps)
Spindle motor 15-18.5Kw
Coolant tank 220 gallons
Hydraulic tank 200 gallons
Max. electricaldraw 36 Kva
Dimensions 9’ 6” H x 110”
Fanuc 15M
