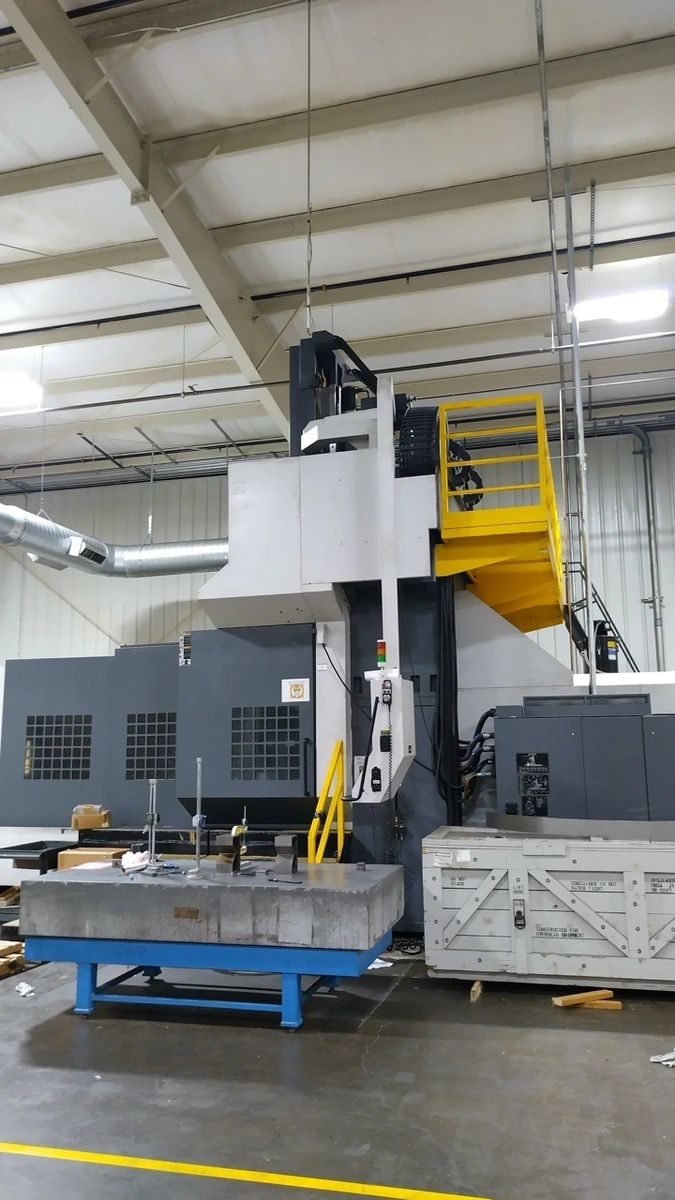

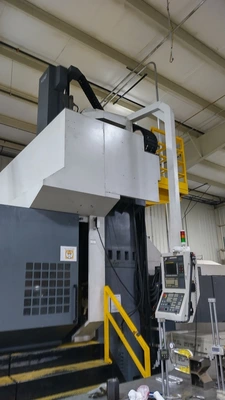

Used 5-axis Gantry Machining Center with Fanuc 31i-CM-B5 control, 10,000 rpm speed, and 60 HP motor. Features 160" x 137.8" x 40" axes, 40-tool ATC, and HSK A100 taper. Equipped with dual augers, spindle chiller, and more.
X-Axis: 160″
Y-Axis: 137.8″
Z-Axis: 40″
C-Axis: ±360º continuous rotation

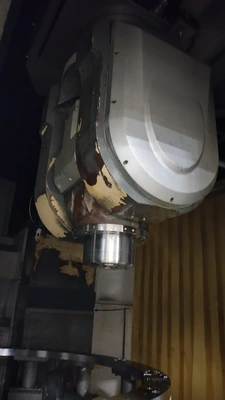

B-Axis Swivel Tilt: ±110º
Distance Between Columns: 122″
Distance Between Spindle Nose and Table: 0.79″-50.79″
Table Size: 161.42″ x 94.49″
No. T-slot x Size x Pitch: 11″ x 1.1″ x 7.87″
Max Load on Table: 44,092 lbs
Taper: HSK A100
Speed: 10,000 rpm
Motor: 60 HP

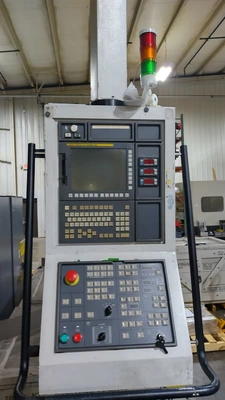

Fanuc 31i-CM-B5 Control
ATC with 40 Tool Capacity
Rigid Tapping
Manual Pulse Generator
Leveling Bolts and Plates
Dual Augers
Lift Chip Conveyor
Glass Scales

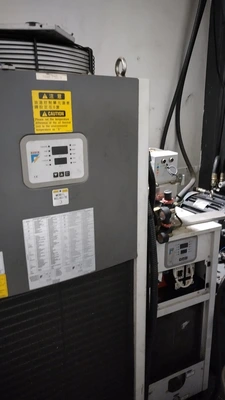

Spindle Chiller
