Table Working Surface, W x L 19.75" x 39.5"
Grinding Width Capacity, Maximum 20.125"
Grinding Length Capacity, Maximum 40.125"
Spindle Center to Table, Maximum 23"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Grinding Wheel Speed 1740 RPM
Table Longitudinal Feeds, Range 13 to 73 FPM
Incremental Power Down Feeds, Range .0002 to .0016 IPR
Power Column Cross Feed 60 IPM
Spindle Motor Horsepower 5 HP
Hydraulic System Motor 3 HP
Overall Dimensions, L x W 130" x 83"
Overall Height 83"
Weight, Approximately 11000 LBS

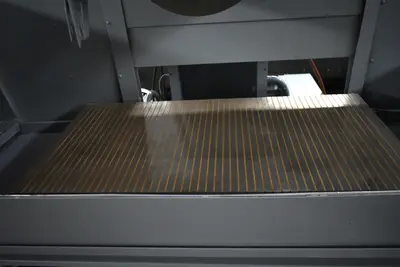

20" x 40" Kanetsu Electro-Magnetic Chuck
Over-The-Wheel-Dresser
Automatic Incremental Power Down Feed

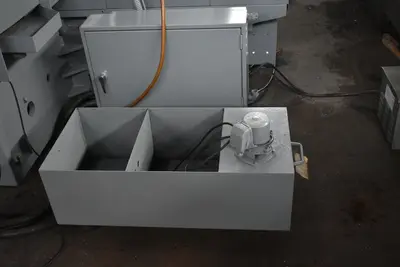

Auto Lube System - Coolant System

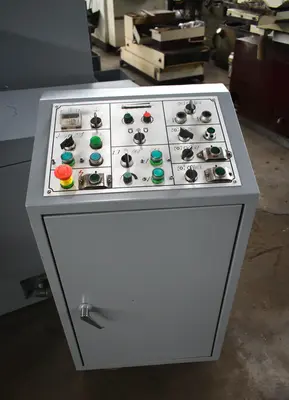

Stand Alone Control Console
This equipment is currently unavailable. Similar equipment available now is shown below.
