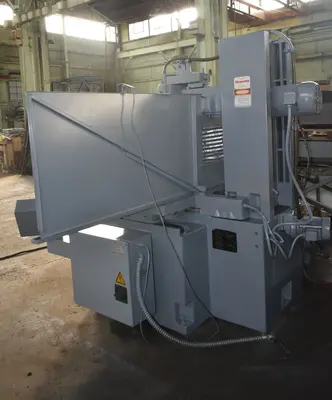

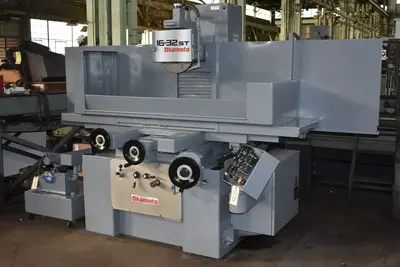

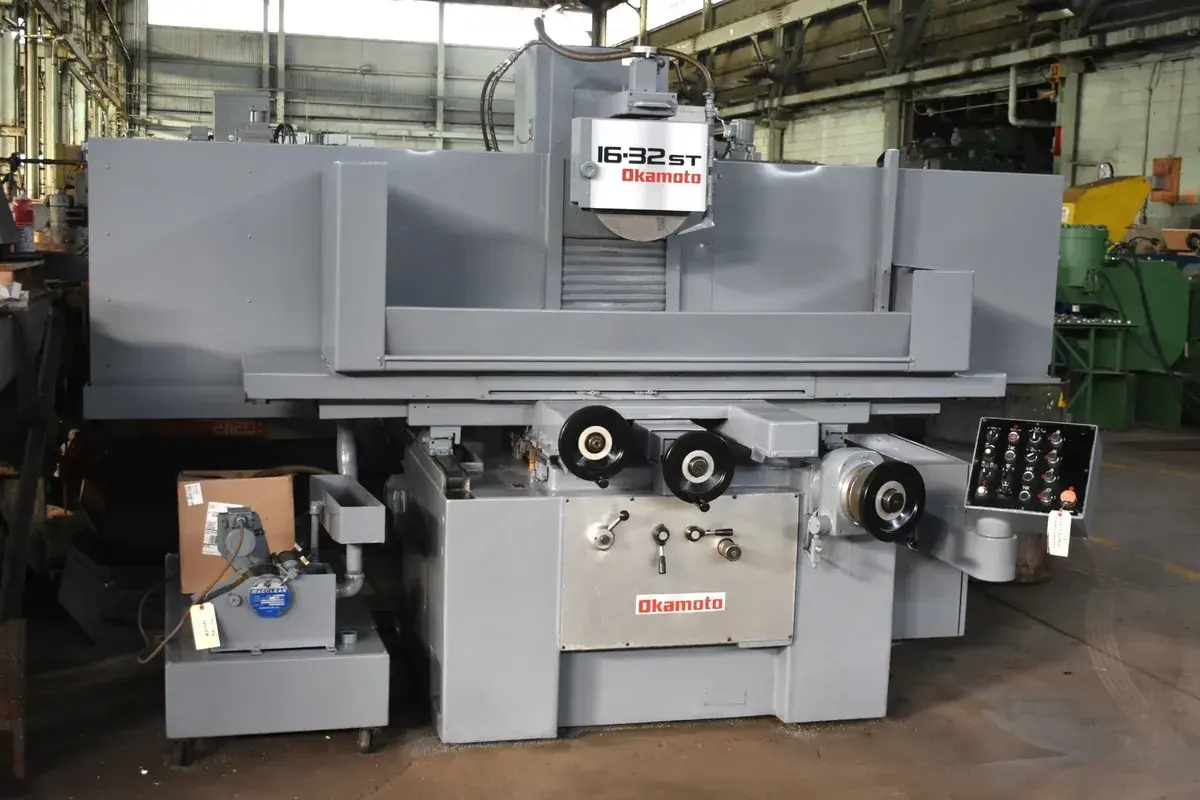

OKAMOTO ACC16.32ST

Table Working Surface, W x L 16” x 33.5”
Grinding Width Capacity 16”
Grinding Length Capacity 32”
Table Load Capacity 1540 LBS
Height Grinding Wheel to Table, Maximum 21.6”
Longitudinal Table Travel 37.5”
Cross Table Travel 17.5”
Longitudinal Table Speed, Variable 10 to 82 FPM
Cross Table Feed, Range .02 to 0.8 IPM
Automatic Down Feed, Variable .0002 to .0015 IPM
Grinding Wheel Diameter 12”
Grinding Wheel Width, Maximum 1.5”
Grinding Wheel Hole Diameter 5”
Grinding Wheel Motor, Horsepower 5 HP
Hydraulic System Motor, Horsepower 3 HP
Overall Dimensions, L x W 132” x 87”
Overall Height 82”
Weight Approximately 8800 LBS
