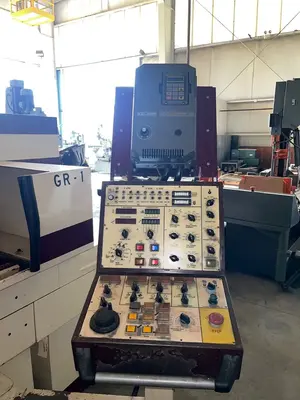

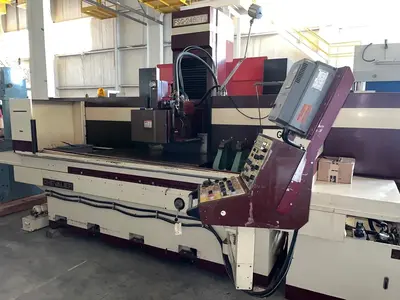

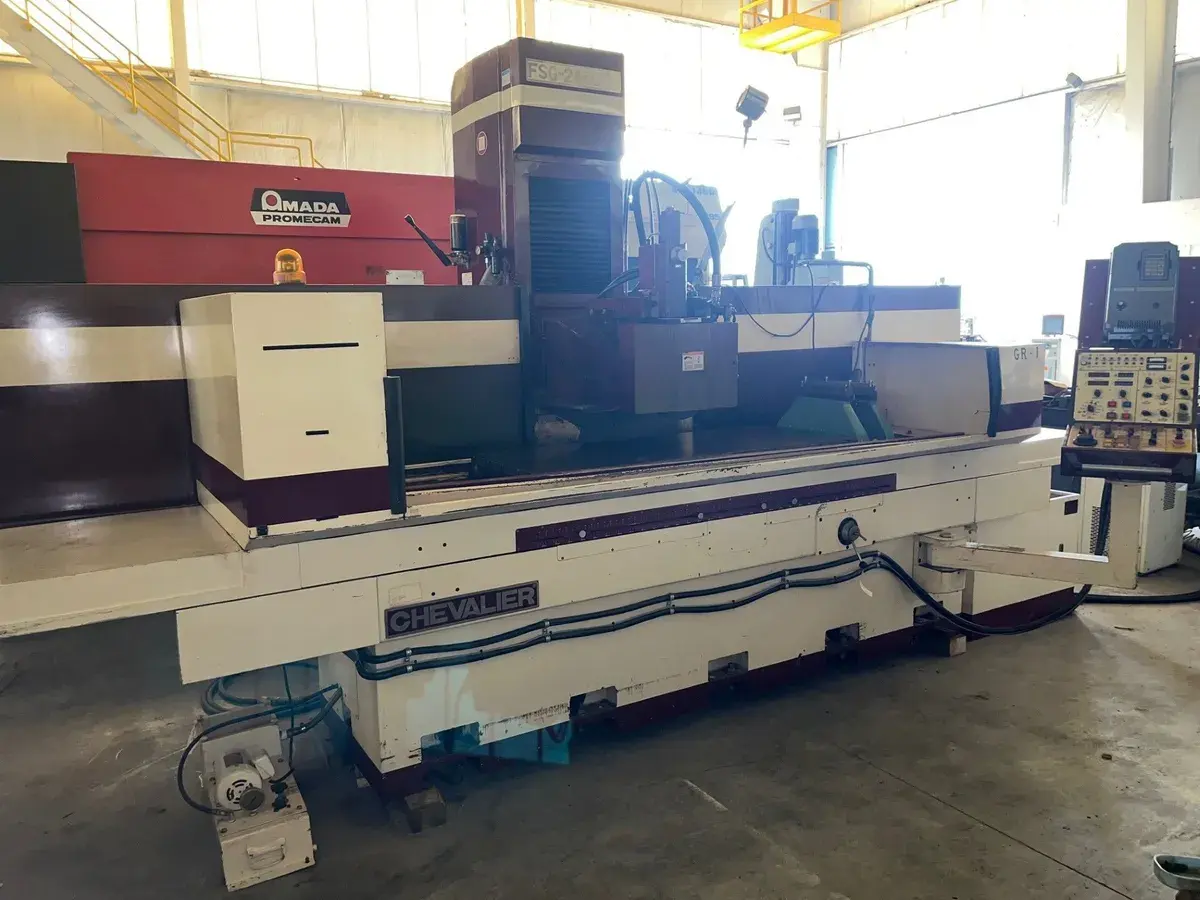

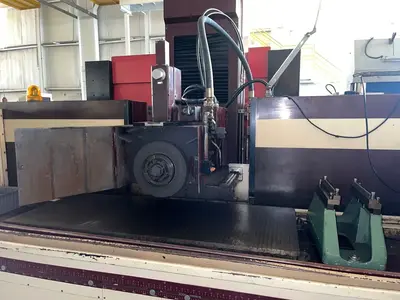

CHEVALIER FSG-2460TX

Table Working Surface, W x L 24" x 60"
Grinding Width Capacity, Maximum 24"
Grinding Length Capacity, Maximum 60"
Table Load Capacity, Maximum 3960 LBS
Height Table to Spindle Center, Maximum 33.46"
Longitudinal Table Travel, Maximum 60"
Crossfeed Table Travel, Maximum 24"
Grinding Wheel Diameter, Maximum 16"
Grinding Wheel Width, Maximum 3"
Grinding Wheel Hole Diameter 5"
Table Longitudinal Feeds, Range 16 to 82 FPM
Incremental Downfeed Automatic, Range .0001" to .002"
Cross Movement Automatic Increment, Range .125" to 2"
Spindle Motor Horsepower 15 HP
Hydraulic Motor Horsepower 5 HP
Floor Space Required, L x W 255" x 134"
Overall Height 108"
Weight Approximately 18000 LBS
