| X | 28" | 711.2 mm |
| Y | 16" | 406.4 mm |
| Z | 15.5" | 393.7 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 18 | 18 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 15" | 381 mm |
| Table-L | 34" | 863.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |

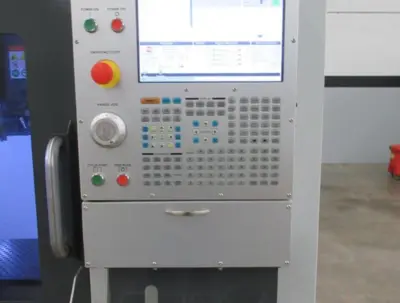

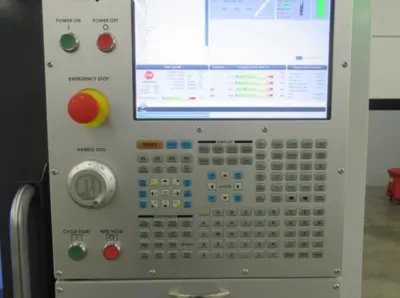

Machine Control Haas NextGen CNC Control
Table Size 34" X 15"
Spindle To Table Distance 6" - 15.5"
Table Capacity 250 LBS
Rapid Traverse Rate (X/Y/Z) 2400 IPM
Maximum Cutting Feed Rate 1200 IPM
Tool Changer Style Twin Arm Tool Changer
Tool Changer Capacity 18 + 1
Tool Change Time 1.2 Seconds Tool to Tool
Max Tool Length 7" X 2.5" Diameter
Max Tool weight 5.5 LBS

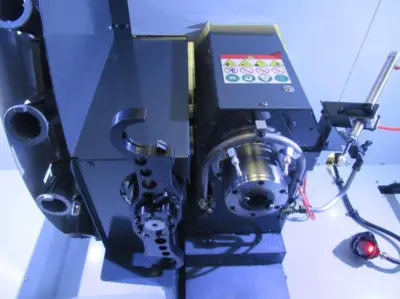

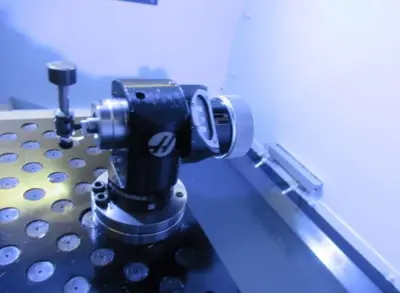

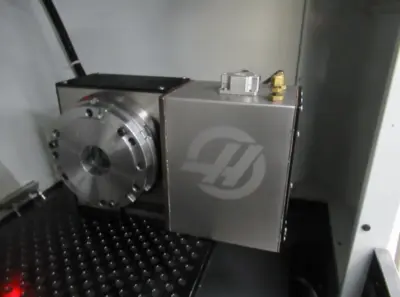

Haas NextGen CNC Control, Haas HRT-210 Rotary Table (s/n 201940 V. P20), Brushless 4th/5th Axis

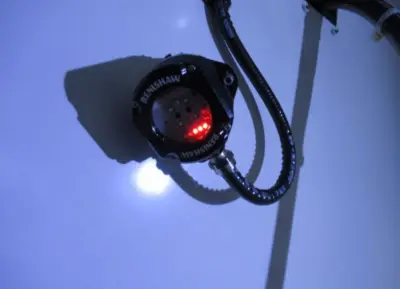

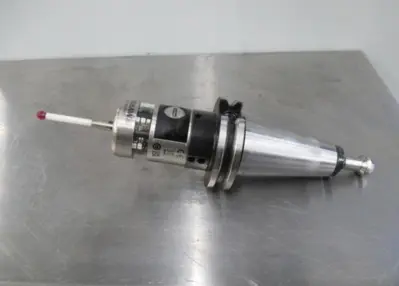

Drive, 4th Axis Linear Scale, 40" x 16" Drill/Tapped Sub Plate, Renishaw Probing System with Part Probe

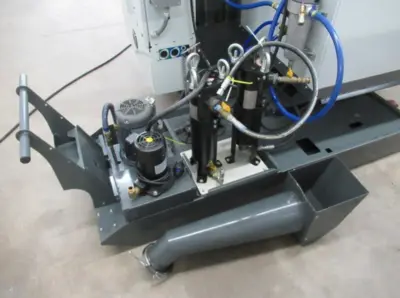

and Tool Setter, 300 PSI Thru Spindle Coolant, Thru Tool Air Blast, 18-Station Side Mount Twin Arm
Automatic Tool Changer, Rigid Tapping, Auxiliary Filter, USB, 55 Gallon Coolant Tank, Psytronics
Transient Voltage Protection System
This equipment is currently unavailable. Similar equipment available now is shown below.
