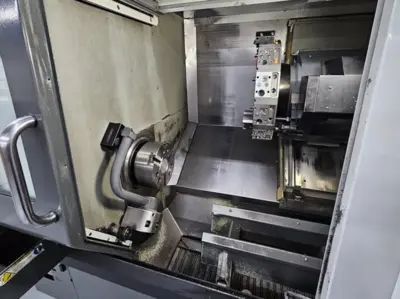

2013 HAAS ST-30SSY
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe features a 3" bar capacity, 10" chuck, and 4800 RPM spindle speed. Includes HP Coolant, Y Axis, rigid tapping, chip conveyor, and more. 30 HP spindle motor, 24-station turret, and USB.
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 4800 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"

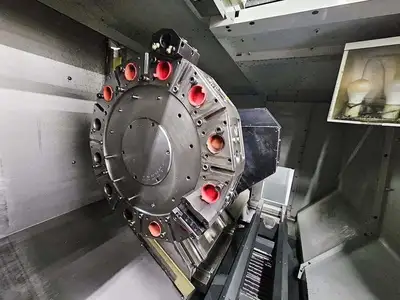

Turret Tools: 24 Station
Rapid Rate: Z Axis: 945 IPM
Rapid Rate: Y, X Axis: 472 IPM
Max Turning: Dia: 18"
Max Turning Length: 23"
Max Swing: 31.75"
Max Thrust: X 4100 lbf
Max Thrust: Y 2300 lbf
Max Thrust: Z 5100 lbf
Spindle Nose: A2-6
Max Rating: 30 hp
Max Speed Spindle: 4800 rpm
Max Torque: 300 ft-lbf
Max Torque: 1000 ft-lbf

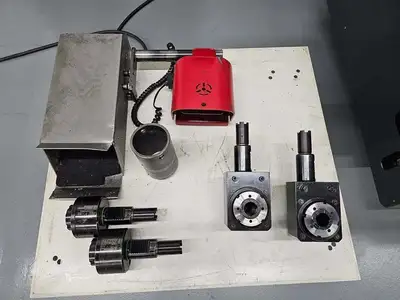

LIVE TOOLING:
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Force 1,000 lbf
Brake Diameter 14.4"
Number of Tools 12 Stations Live
Max Speed Live: 4000 rpm
Weight: 14,300 LBS
Options:
HP Coolant HPC 1000

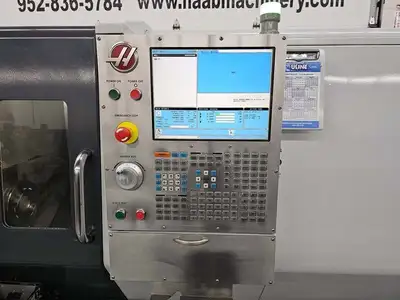

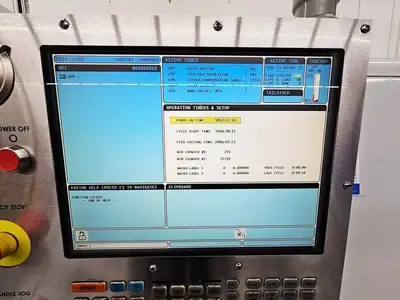

15inch Color LCD Monitor
10” 3 Jaw Chuck
12 Station Live
4800 RPM Spindle
2 Axial
2 Radial

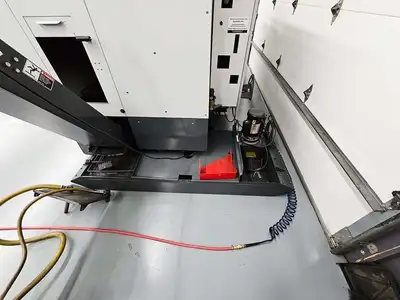

Chip Conveyor
Y Axis
Rigid Tapping
Coolant Tank and Pump
C Axis W/ Live Tools
Parts Catcher
Work Lights
USB Connection
