2000 O-M TMD 55/60
Have one to sell?
ConditionUsed
1 available

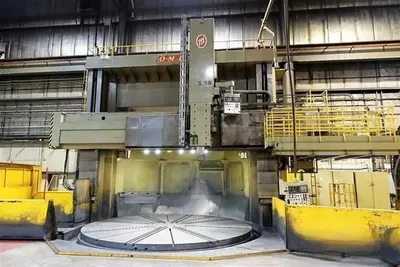

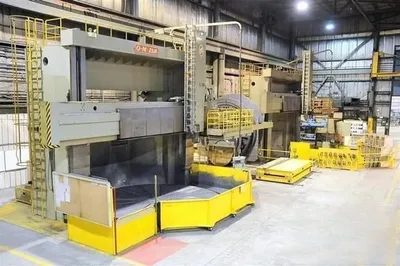

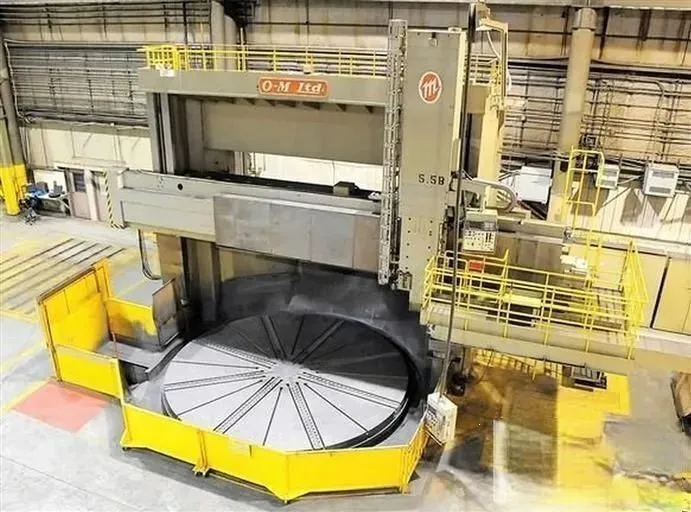

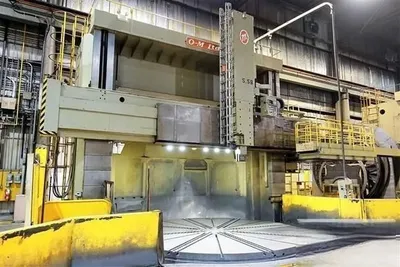

2000 O-M TMD 55/60 Vertical Boring Mill in used condition. Features a 216.53" table diameter, 236.22" max turning diameter, Fanuc 18i-TB CNC controls, and 100 HP table drive. Equipped with chamfering, tool compensation, and more.
Table Diameter 216.53"
Maximum Turning Diameter 236.22"
Maximum Turning Height 145.66"
Horizontal Travel of Rail Head 135.82"
Vertical Travel of Cross Rail 102.36"
Ram Stroke 78.74"
Ram Cross Section 11.02"
Table Speed (3- Ranges) .3-45 RPM
Table T-Slots (Nominal)................ 1.65" 1.65"
Table Weight Capacity 132,277 Lbs.
Table Motor 80 HP / 100 HP

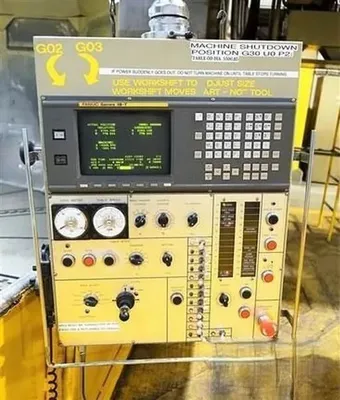

Fanuc 18i-TB CNC Control - Dual Operator Controls

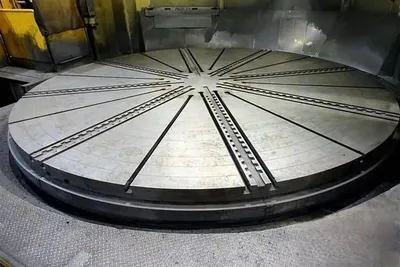

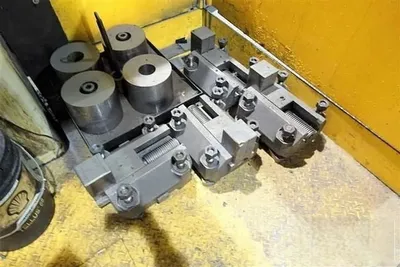

T-Slotted Table with (4) Face Plate Type Jaws

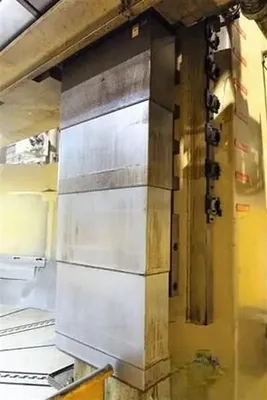

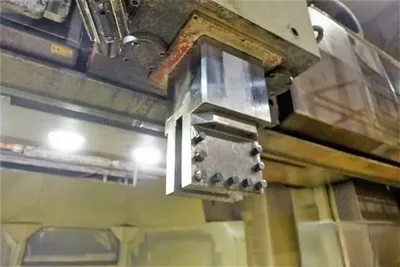

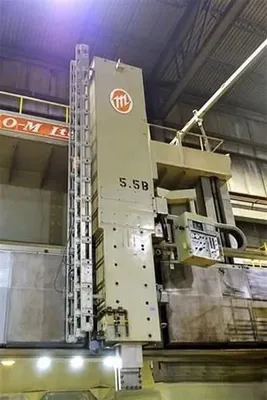

Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation

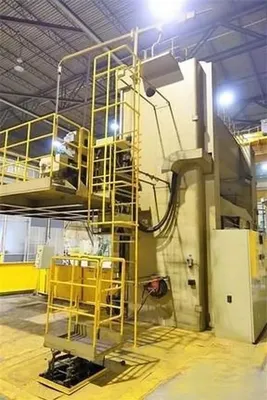

Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive
