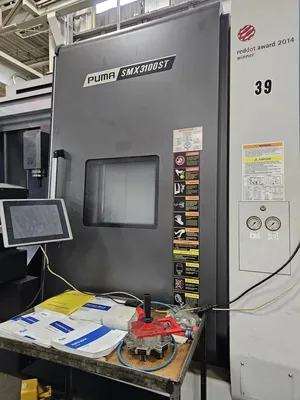

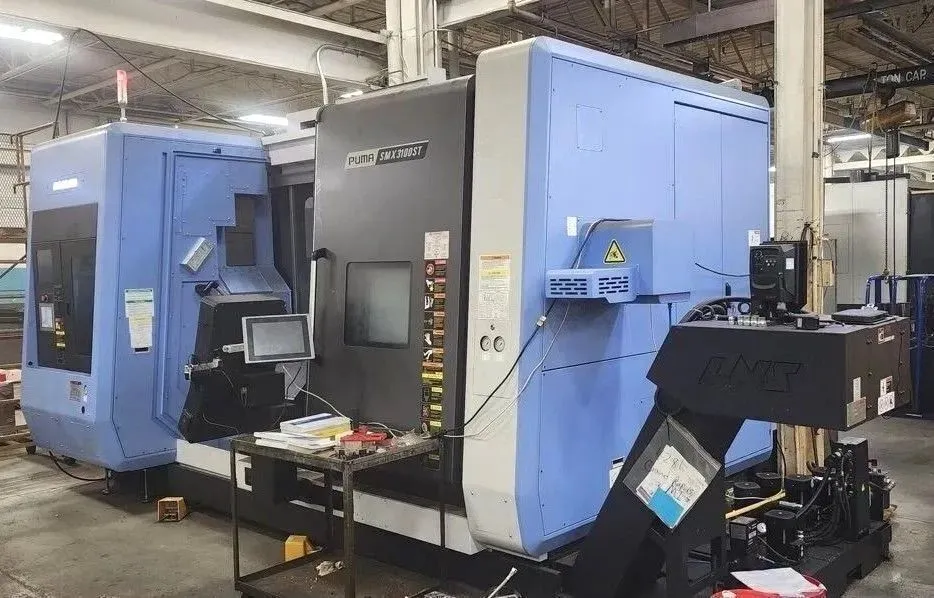

Explore the 2019 Doosan PUMA SMX 3100ST, a reliable used CNC lathe. Equipped with 12,000 RPM B-axis milling head, dual spindles, and 80 station ATC. Features include Fanuc CNC control, LNS barfeed, tool presetter, and Renishaw probing system.
Max Machining Diameter Upper / Lower: 26" Max Turning/Machining Diameter (Main Spindle)
Max Machining Length: 60.6" Max Turning/Machining Length
Main Spindle Chuck Size: Samchully Hch-18 18" 3-Jaw Chuck
Main Spindle Speeds: 3000 Max Rpm
Main Spindle Drive: 40 Hp
Main Spindle Nose / Bore: 4.1" Bore, Current Spindle Liner Setup Is Configured For 2.875" Bar Capacity
Main Spindle Indexing: Full C-Axis
Second Spindle Chuck Size: Samchully Mh-212 12" 3-Jaw Chuck
Second Spindle Speeds: 4000 Rpm
Second Spindle Drive: 35 Hp
Second Spindle Indexing: Full C-Axis
Milling Head Speeds: 12,000 Max Rpm
Milling Head Drive: 35hp
Milling Head Travel X / Z / Y: 27.4" / 62.4" / 11.8"
Milling Head B-Axis Programmable: +/- 240°

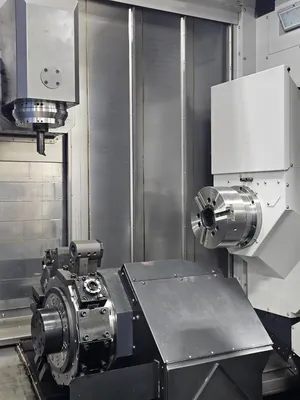

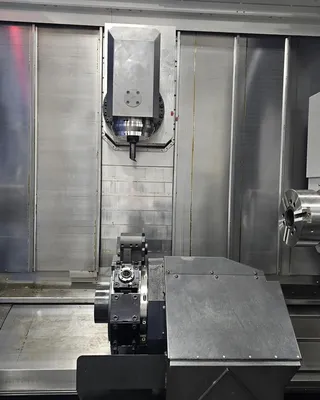

12,000 RPM B-Axis Articulating Milling Head
12 Station Live Tool Lower Turret
80 Station ATC

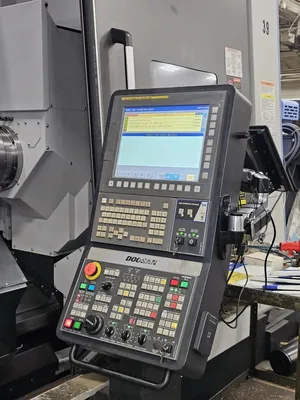

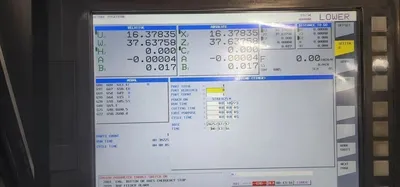

Fanuc Series 31i-Model B5 CNC Control w/ Doosan Easy Operation Package and 15" Display

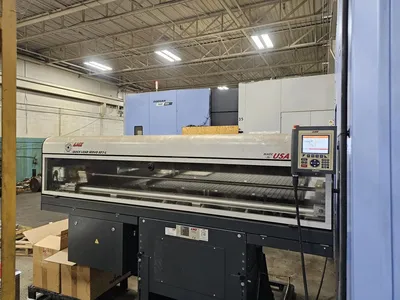

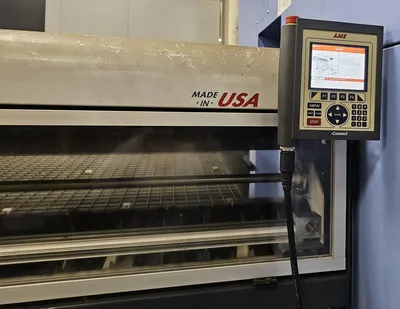

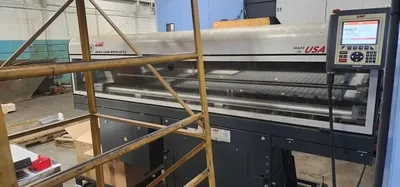

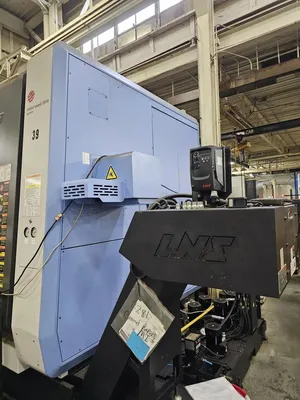

LNS Barfeed
12,000 RPM Capto C6 Taper B, Z, & Y Axis Milling Spindle
80 Station Tool Changer With Tool Library Control Screen

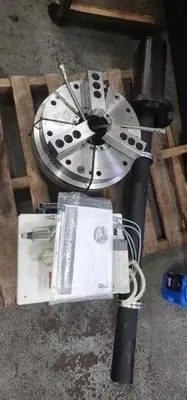

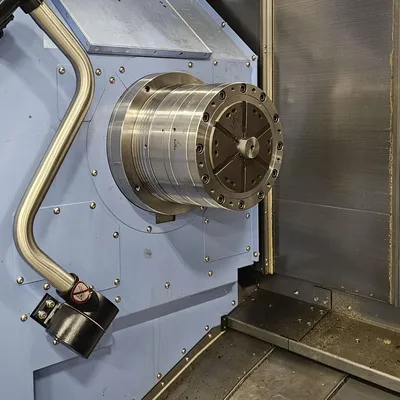

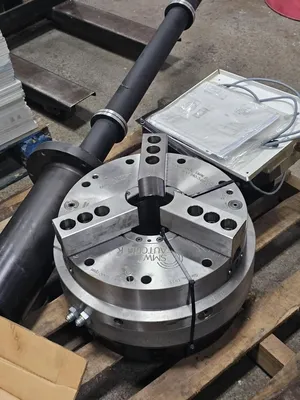

Collet Chuck on Main, Air Chuck with 5.5 Diameter Bore ( on pallet)
Samchully MH-212 12" 3-Jaw Chuck on Right Spindle
Full C-Axis on Both Spindles
40HP Left Spindle
30HP Right Spindle
Lower X/Z Axis Live Milling & Static Tool Turret with 12 Stations (All Live Capable)
Tool Presetter

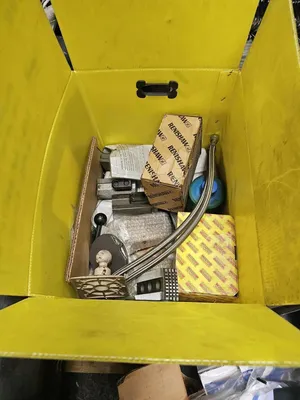

Renishaw Tool & Parts Probing System with RMI-Q Radio Receiver
RPM600 Parts Probe
Renishaw TRS2 Laser Tool Breakage Detection, Servo Auto Door
LNS MF2 Filtering Chip Conveyor with Variable Speed Drive
Complete Coolant System and Tank
Machine Manuals
(3) Capto C6 Tool Holders
(5) Live Tools,
Live Tools, and Static Tool Holders,

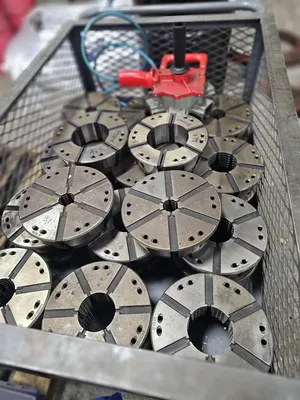

Serrated Collets
1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 , 2 1/4, 2 3/8, 2 1/2, 2 5/8
2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8, 4 1/2,
Smooth Collets, 3 5/8, 3 7/8
