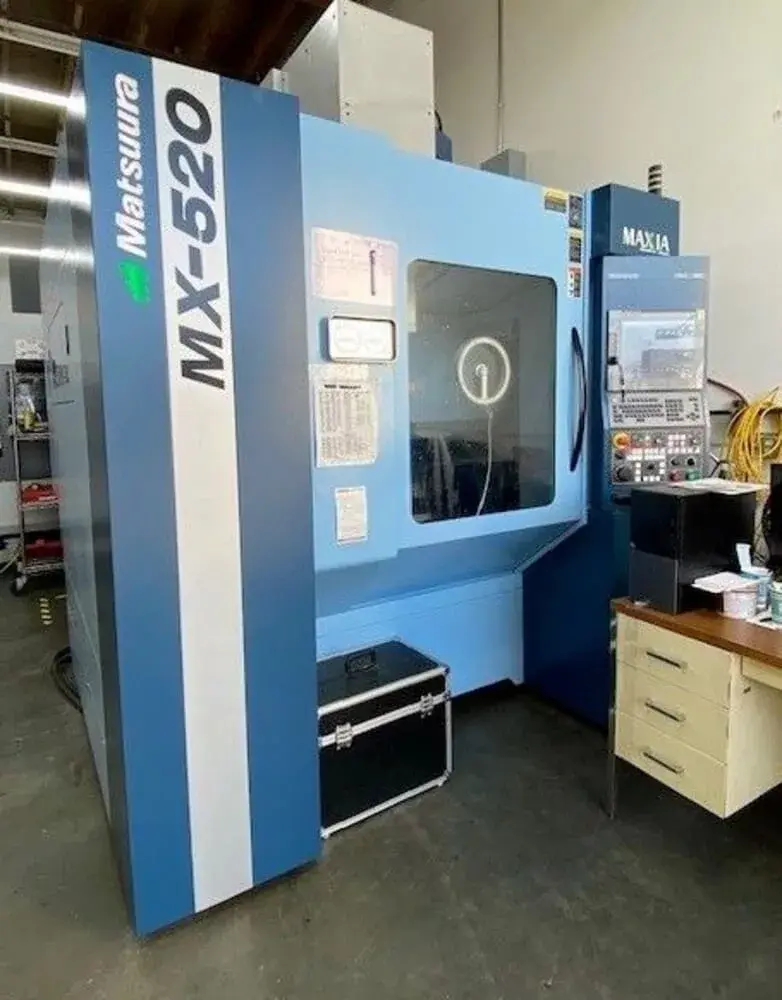

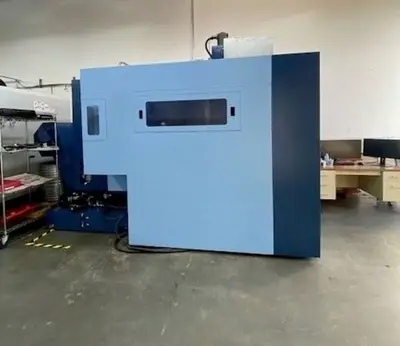

2023 MATSUURA MX-520
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center with high-speed 20,000 RPM spindle, CAT 40 taper, and 15 HP motor. Equipped with G-Tech 31i control, Renishaw NC-4 laser probe, and 60 ATC. Includes advanced 5th axis trunnion table and precision features.
X-Axis Travel 24.8"
Y-Axis Travel 22.04"
Z-Axis Travel 20.07"
Spindle Speed 20,000 RPM
Spindle Taper CAT 40
Spindle Motor 15 HP
Tool Magazine Capacity 60 ATC
Additional Axis

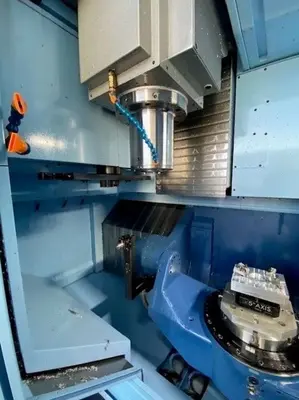

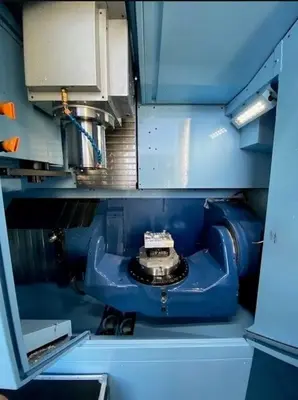

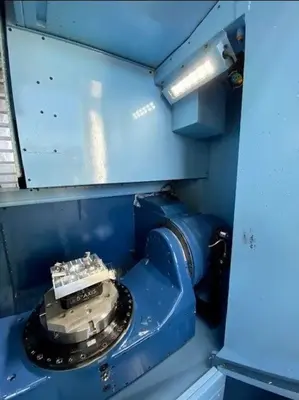

5th Axis Trunnion Table
Table Size 20.47" x 13.78"

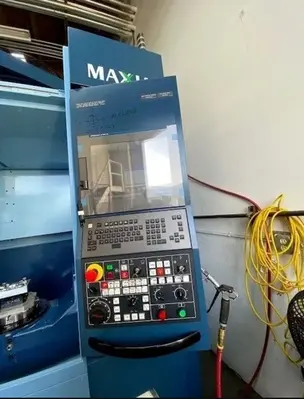

Control Matsuura G-Tech 31i
8 Sets Of Extra M Function
Air Blow for Chip Removal
High-Speed/High-Precision 5-Axis Package
Renishaw NC-4 ATLM/BTD Laser Probe
Rotary Wiper System (Air Supply)
Spindle Load Monitoring Function
Spiral Augers
Touchscreen Display Control
Twin Flat Tables
Vacuum Type Coolant
Renishaw OMP 400 IPM Probe
3 Color Patrol Light
Environmental Thermal Displacement Compensation
Heidenhain Scale
5th Axis Trunnion Table
