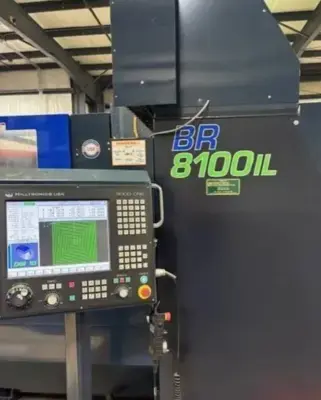

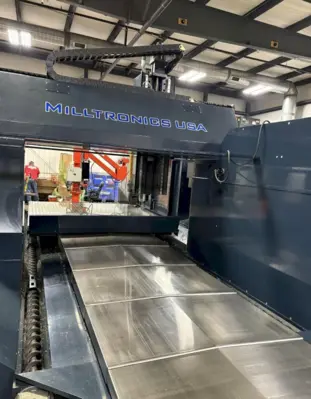

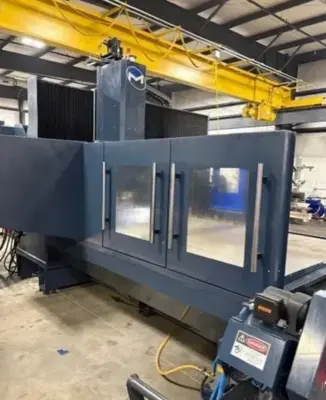

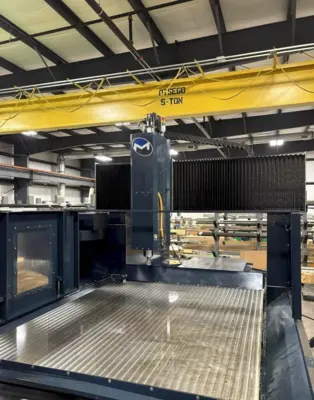

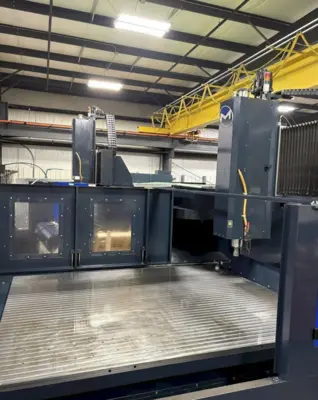

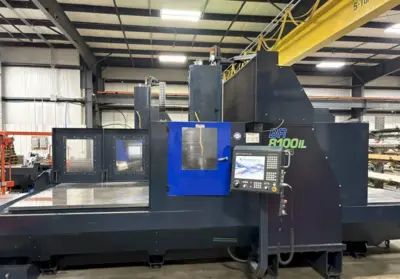

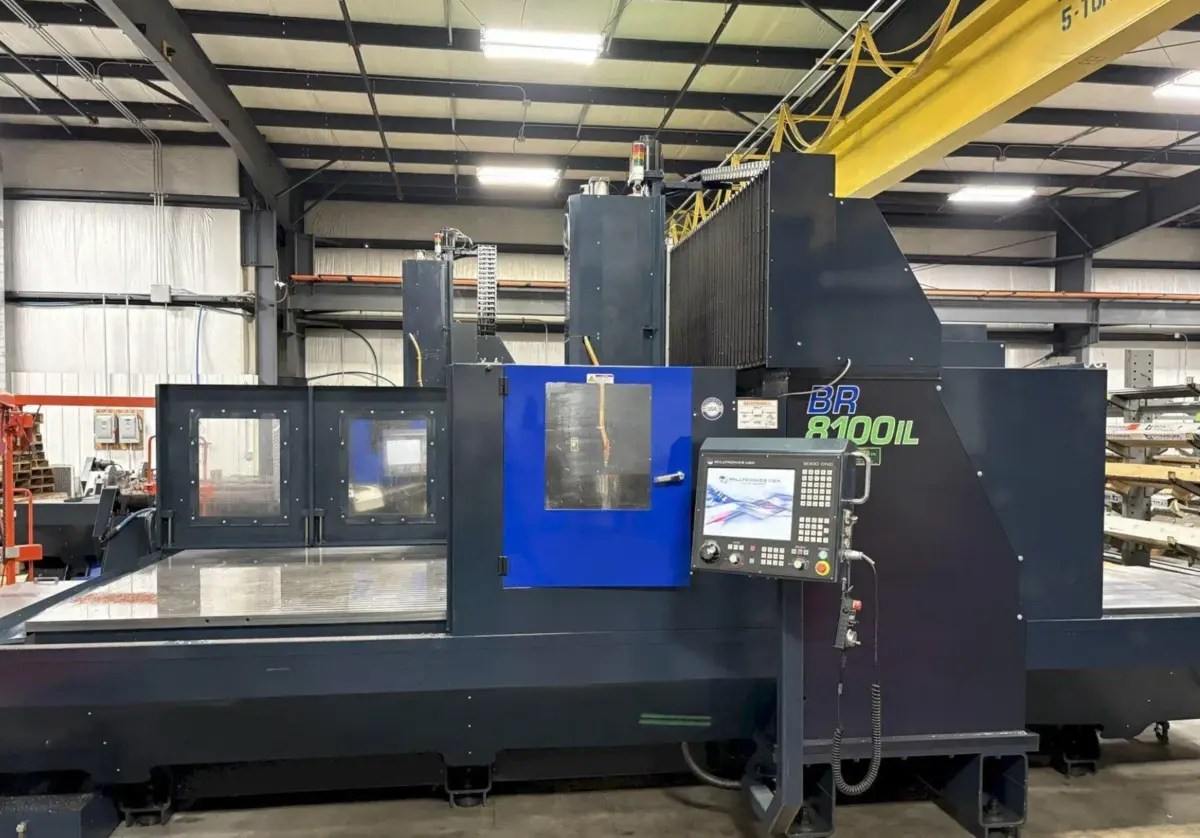

2022 MILLTRONICS BR8100IL

X axis travel - 100"
Y axis travel - 80"
Z axis travel - 28"
Table size 80" x 100"
Allowable table load 5000 lbs.
Spindle gage line to table distance 4" - 32"
Spindle taper BIG-PLUS ISO No. 40
Spindle speed 15,000 RPM
AC spindle motor 24/15 HP
Spindle torque 85 ft-lbs

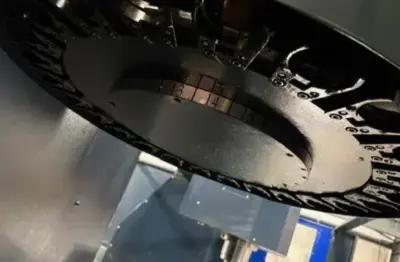

ATC Type Carousel 24 pocket
Tool shank CT-40
Pull stud MAX 60deg Retention Knob
Max tool diameter 3.5"
Max tool length 11"
Max tool weight 15 lbs.
X/Y Z axis rapid traverse rate 1000 IPM
Max. cutting feed rage 500 IPM
X axis ball screw diameter 2.48"
Y axis ball screw diameter 1.57"
Z axis ball screw diameter 1.25"
Lease command increment 0.0001"
Axis thrust (peak) 5000 lbs.
Machine height 152"
Floor space required 280" x 164"
Machine weight 29,500 lbs.
Power requirement 48 kVA / 125 A
Voltage requirement 208-240 Volts / 3 Phase
