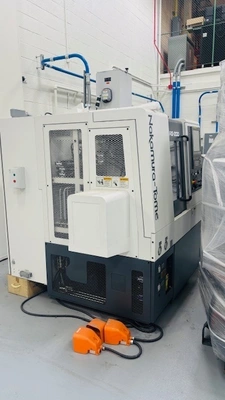

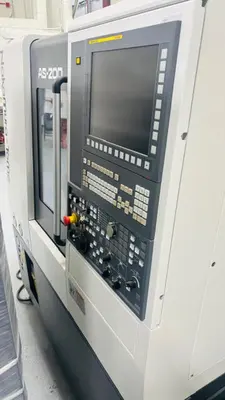

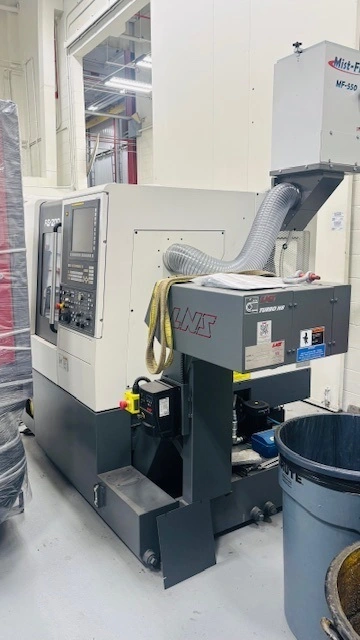

2022 NAKAMURA TOME AS-200MY

Bar Capacity .................................................................................................................2.5”
Chuck Size....................................................................................................................8.0”
Swing Over Bed........................................................................................................15.74”
Swing Over Saddle...................................................................................................12.59”
Turning Diameter........................................................................................................13.4”
Maximum Turning Length.........................................................................................11.81”
MAIN SPINDLE
Drive Motor ............................................. FANUC Spindle Motor 15/20 HP (AC 15/11kW)
Drive Motor Torque....................................................................110/61 Nm (81/50 Ft. Lb.)
Speed Range................................................................................................. 50-4500 rpm
Number of Steps....................................................................................................stepless
Designation..................................................................................... rpm direct designation
Spindle Nose .............................................................................................................. A2-6
Hole through Spindle ..................................................................................................3.15”
Hole through Draw Tube ............................................................................................2.60”
Front Bearing Inner Diameter.....................................................................................4.33”

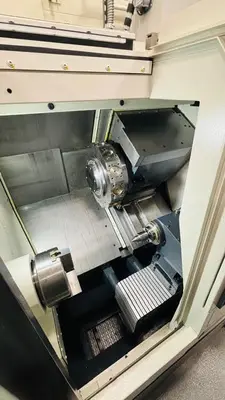

Turret Head Type.........................................................................dodecagonal drum turret
Number of Rotating Tool .................................................................................12 positions
Number of Index Positions ..............................................................................24 positions
Drive Motor (50% ED/Continuous) .....................................................................5/7.37 HP
Spindle Speeds..................................................................................80-6000 min-1 (rpm)
Constant Torque................................................................................................... 23.6 Nm
Rotating Tool Size
Face/Cross Drill (collet AR25-d) ..................................................................... 3/64” - 5/8”
Cross Offset Drill (collet AR11 - 1) ............................................................. 3/64” - 17/64”
Width Across Flats....................................................................................................14.76”
Turret Thickness .........................................................................................................3.15”
Tool Size:
Square .........................................................................................................1” x 1”
Round .............................................................................................................1 1⁄4”
Index Time:
For 1 Station ........................................................................................ 0.2 second
For 180 Degrees (6 Stations) .............................................................. 0.7 second
Turret Clamping Force........................................................................................ 9,913 lbs.
Index Drive with Direction Logic ......................................................................servo motor
Positioning via........................................................................................... Curvic Coupling
Y-AXIS
Y-Axis Stroke.........................................................................................+/-1.6” (+/-41 mm)
Rapid Speed................................................................................236”/min (6000 mm/min)
Cutting Speed...................................................................... 314”/min (1 to 8000 mm/min)
Feed Motor ................................................................................................ 1.6 HP (1.2kW)
Ball screw diameter ..................................................................................... 1.25” (32 mm)
Ball screw lead................................................................................................. .24” (6 mm)
Thrust force............................................................................................... 5880N (600Kgf)

STANDARD MACHINE
Dimensions: 80.0” x 67.6” x 72.9” (standard)
Floor Space: 80.0” x 67.6”
Machine Weight: 6,835 lbs.
Noise Level: Less than 80dBA
