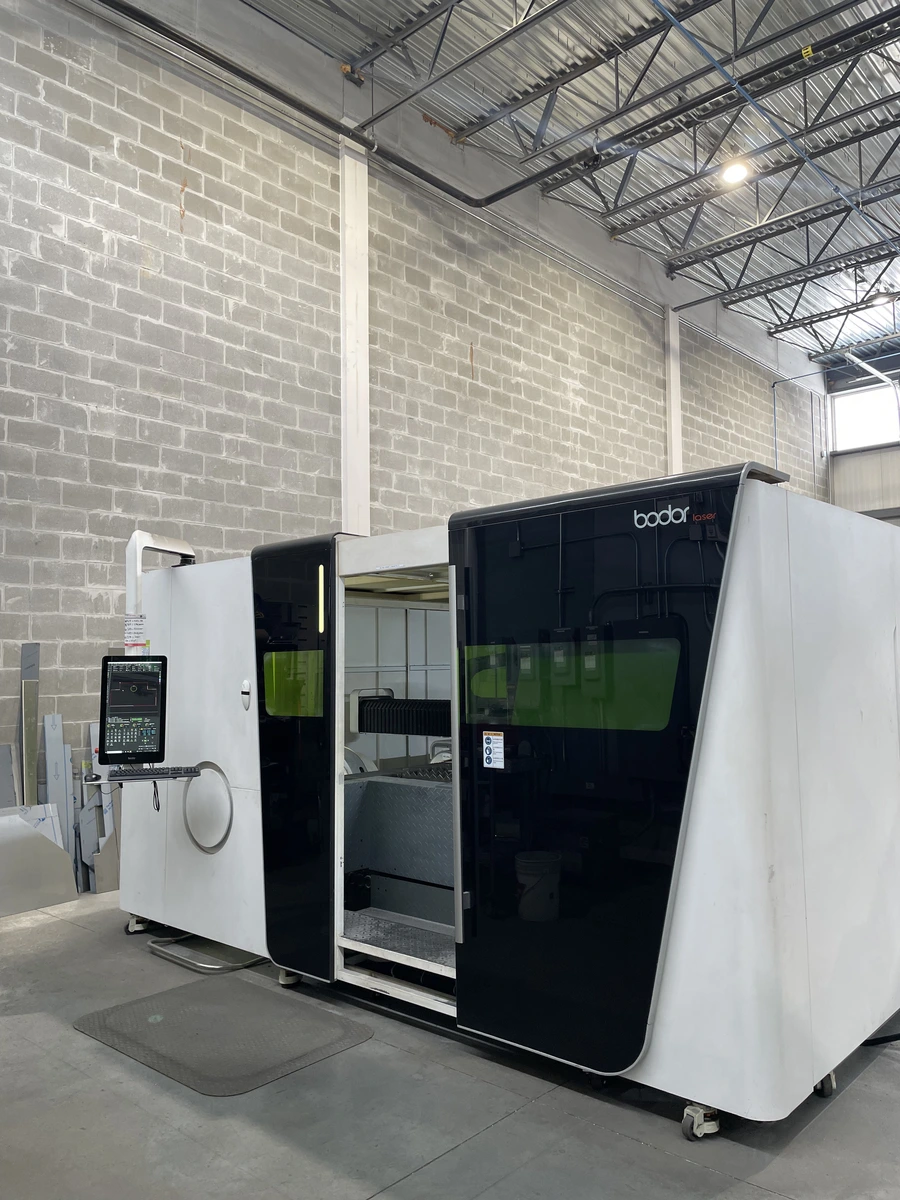

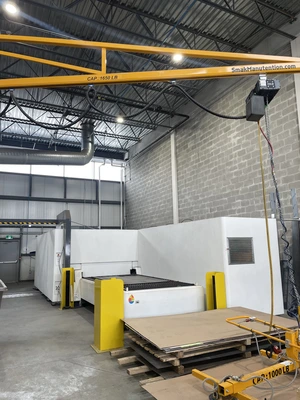

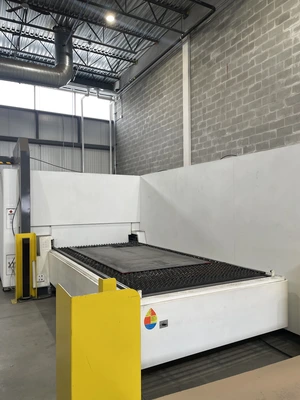

Used 2021 Bodor P3015T6 laser cutter with tube cutter. Features 3kW IPG laser, sheet size 5'x10', max speed 140m/min, 20ft tube length. Includes water chiller, dust collector, and transformer. Handles mild steel, stainless, aluminum.
This machine consists of a two 5ftx10ft table exchangers and a 20ft length tube cutter. The machine also comes with:

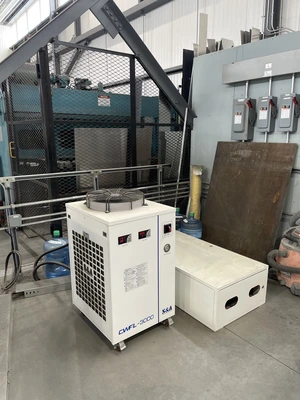

- Water Chiller CWFL-3000BNS

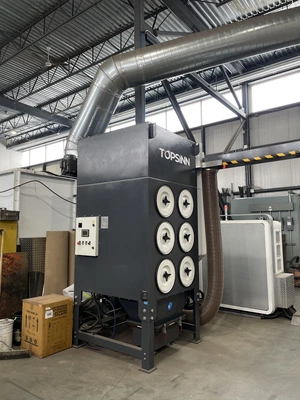

- Dust Collector TODC-6L

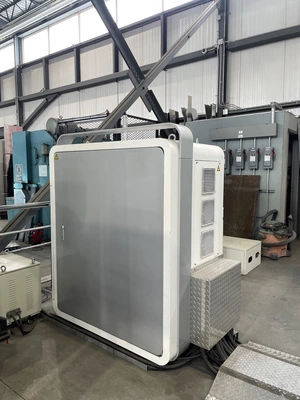

- IPG Resonator YLR-3000
- Electrical transformer MTH75A6 Marcus
General information:
- Positioning Accuracy: 0.05mm
- Repeated Positioning Accuracy: 0.03mm
- Max Moving Speed: 140 m/min
- Cooling Type: Water Cooling
- Table Max Loading Weight: 900 kg (1980 lbs)
- Power Requirements: 380V 3PHS 60Hz (includes transformer 575V)
- Graphic Format Supported: DXF DWG AI PLT BMP DST LAS, etc
- Dimension (L*W*H) mm : 15100*4100*2000mm (49.5*13.4*6.5ft)
- Whole Machine Weight: 10500kg (23,100 lbs)
- Assist gas: oxygen, nitrogen, compressed air
Max cutting thickness:
- Mild Steel: 3/4in
- Stainless steel: 3/8in
- Aluminum: 1/2in

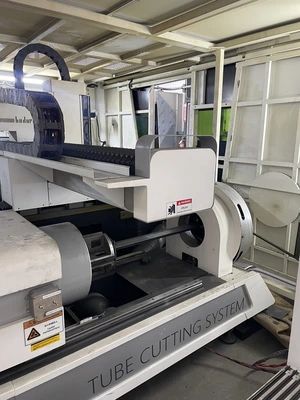

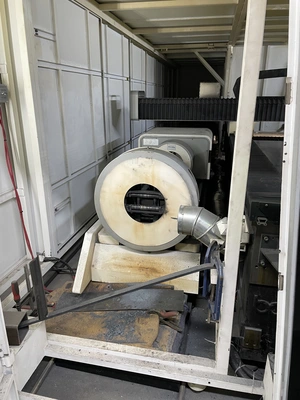

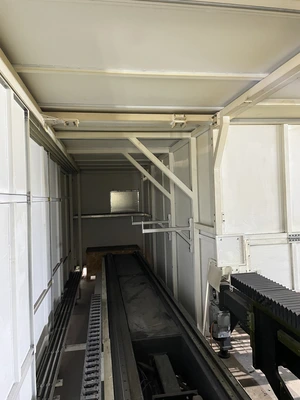

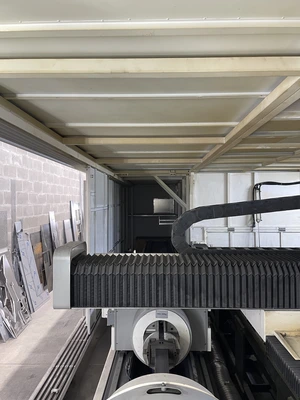

Tube cutter information
- Max length: 6000 mm (20ft)
- Max diameter: 200 mm (7-7/8in)
- Max tube weight 100 kg (200 lbs)
- Wall support for storing material inside the machine
- Rear access door to facilitate the loading of the material into the machine
