| X | 50" | 1,270 mm |
| Y | 26" | 660.4 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23" | 584.2 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 5 | 5 |

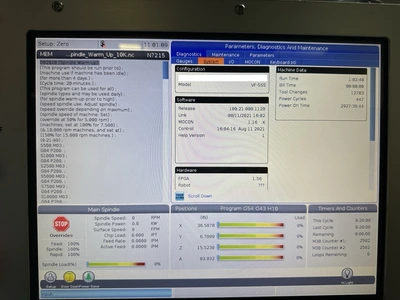

| Control | CNC (HAAS) | CNC (HAAS) |
X-axis travel: 50″
Y-axis travel: 26″
X-axis travel: 25″
Rapid rate x-axis: 1,200 ipm
Rapid rate y-axis: 1,200 ipm
Rapid rate z-axis: 1,200 ipm
Max table load: 1,750 lbs

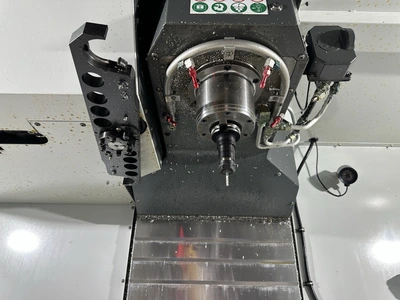

Spindle motor: 30 hp
Spindle speed: 12,000 rpm
Spindle taper: 40

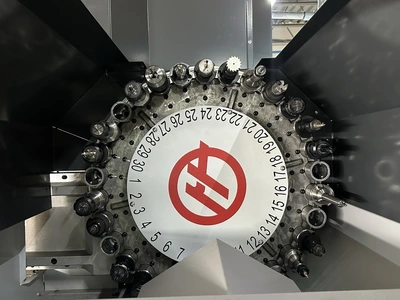

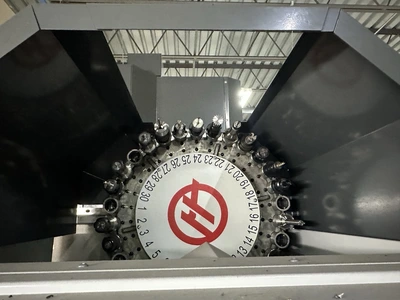

Tool changer: 30 atc
Spindle nose to table: 4.2″ – 29.2″
Max cutting: 833 ipm

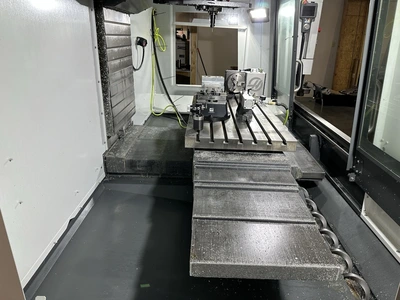

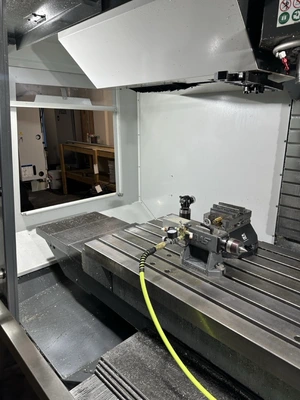

Table size: 52″ x 23″

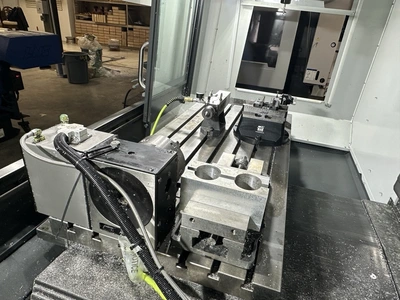

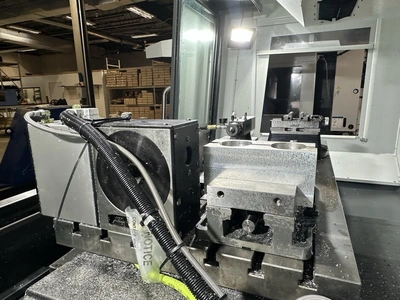

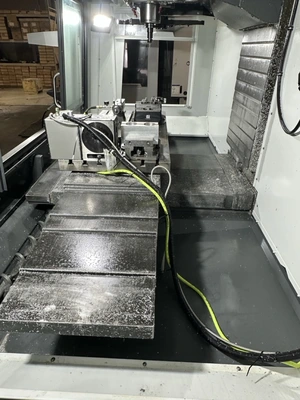

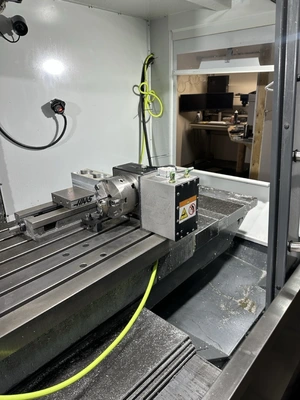

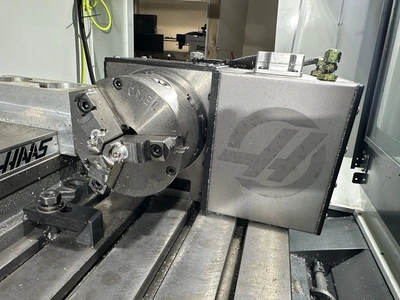

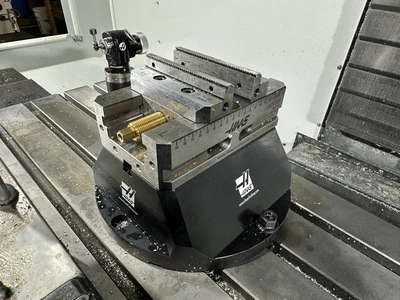

Haas HRT-160 Rotary Table

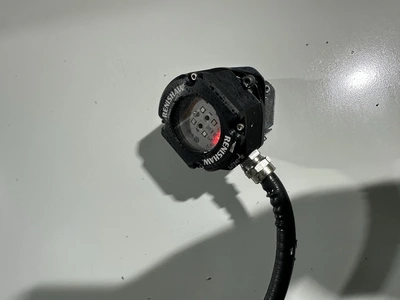

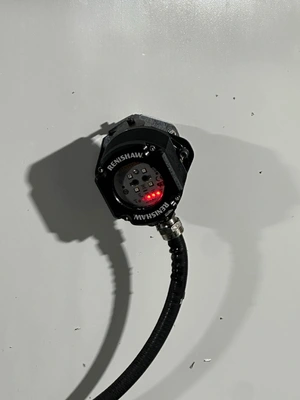

WIPS
Programmable Coolant
Chip Auger
Mist Collection
4th-Axis Drive and Wiring
5th-Axis Drive and Wiring
Large Remote Jog Handle with Touchscreen Display
Visual Part Programming System
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling

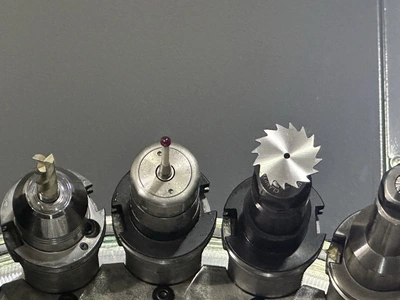

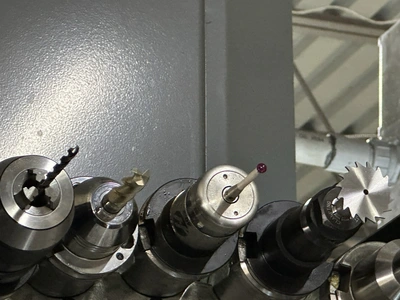

Tool holders included (may vary from photos)
This equipment has been sold. Similar equipment available now is shown below.
