2015 DOOSAN LYNX 220LC
Have one to sell?
ConditionUsed
1 available

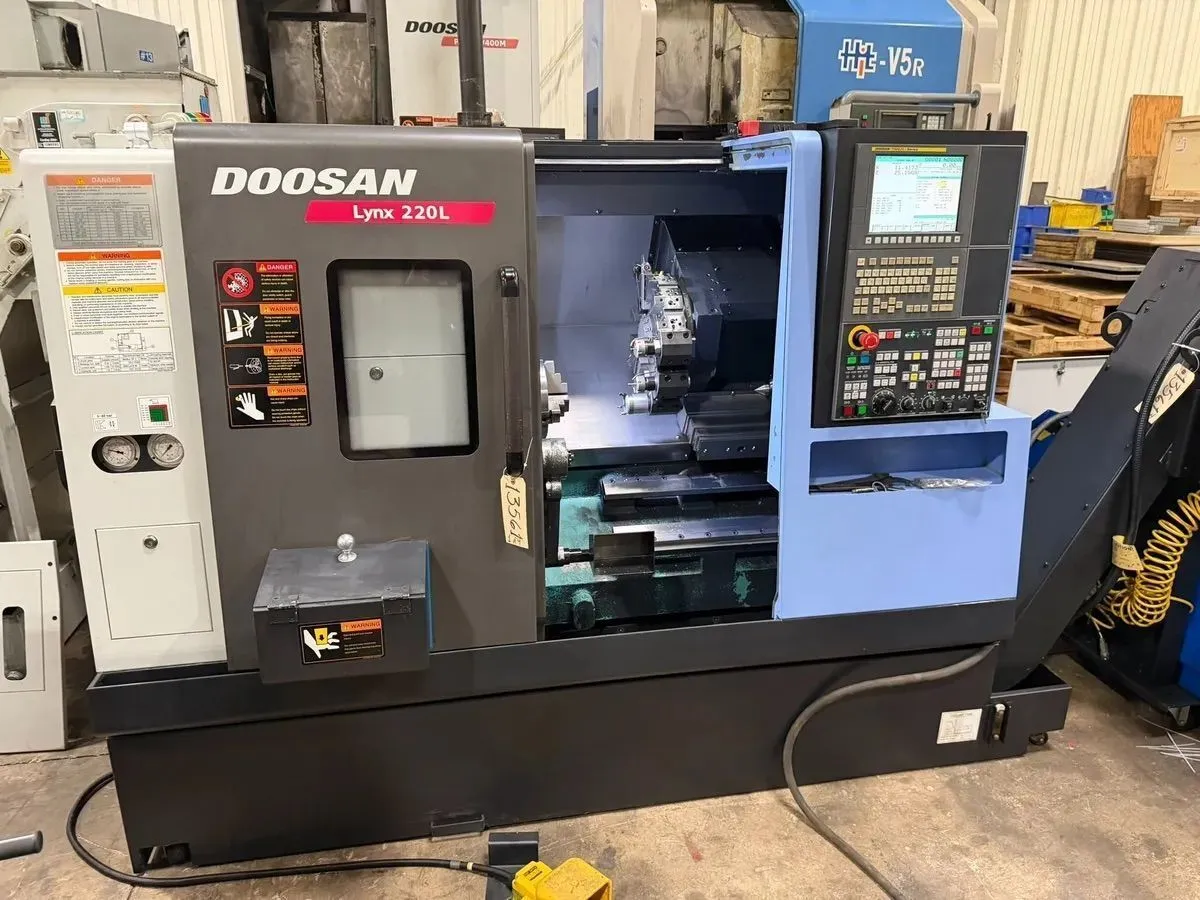

2015 Doosan Lynx 220LC CNC Lathe, featuring 8" main spindle chuck, 20 HP motor, 4000 RPM, tool presetter, turbo chip conveyor, tailstock, and Fanuc i CNC Control. Dimensions: 90"x72"x66". Weighs 7,780 lbs..
Main Spindle Chuck 8"
Maximum Swing 20.08
Maximum Cutting Diameter 12.6"
Maximum Machining Length 20.7"
Main Spindle HP 20
Main Spindle RPM 4000 RPM
Main Spindle Nose A2-6"
Main Spindle Bore 2.99"

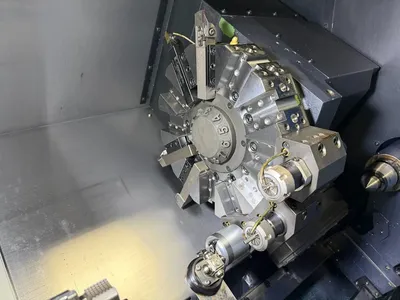

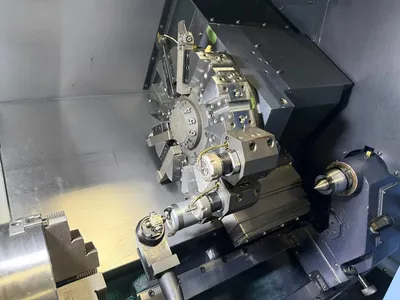

Tool Storage Type Turret
Number of Tool Stations 12
X Axis Travel 6.89"
Z Axis Travel 21.65"
Rapid Traverse Rate X 1181 IPM
Rapid Traverse Rate Z 1417 IPM
Machine dimensions lxwxh
90"x72"x66"
Machine weight
7,780 lbs

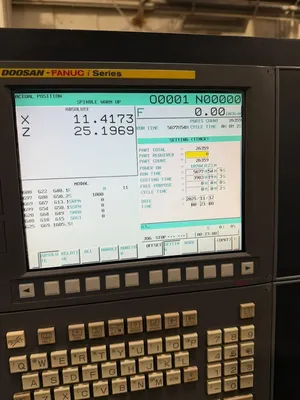

Fanuc i CNC Control
Tool Presetter
Parts Catcher

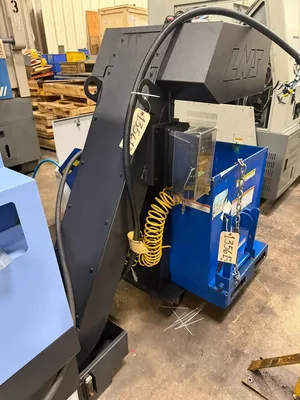

Turbo Chip Conveyor
Barfeed Interface

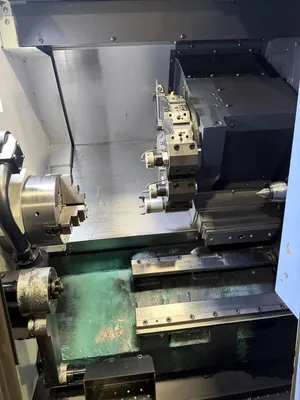

Tailstock

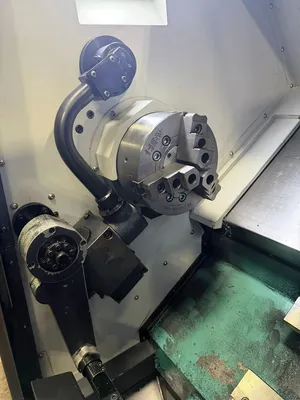

8" Samchully 3 Jaw Hydraulic Chuck
Coolant System with Tank & Pump
Card Drive Interface
RS 232 Port Interface
Misc. Tool Holders
Bar Feeder Interface
