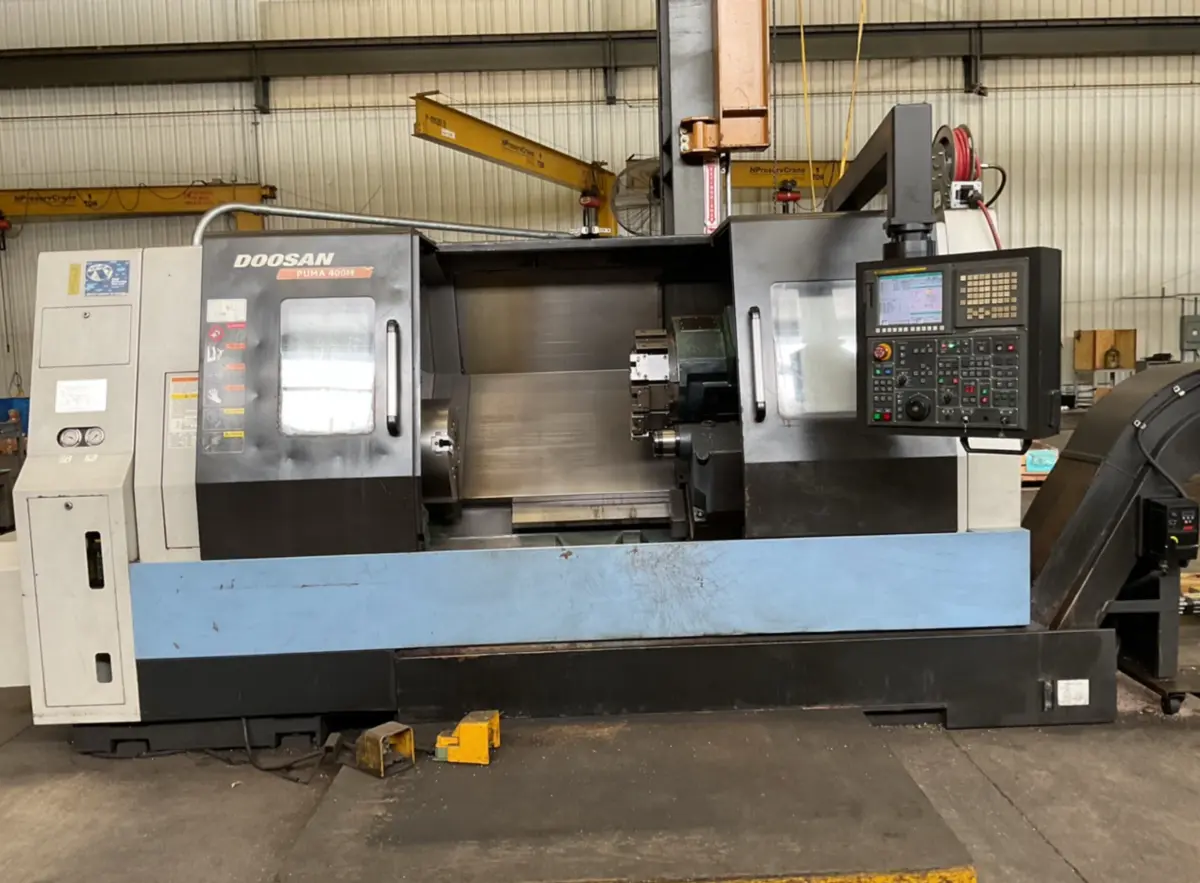

Used Multi-Axis CNC Lathe: powerful 30 hp machine with 30.3” swing, 22” max turning diameter, and 41.3” turning length. Features Fanuc CNC Control, live milling, and an LNS Turbo Chip Conveyor. Approx weight: 24,500 lbs.
Swing over bed: 30.3”
Maximum turning diameter: 22”
Maximum turning length: 41.3”
X axis travel: 14”
Z axis travel: 43.5”
Spindle nose: A2-11
Spindle speed: 2,000 RPM
Spindle bore: 5.2”
Chuck Size: 18″
Power: 30 hp
Approx Weight: 24,500 Lbs.
Approx Dimensions: 170” x 86” x 92”
Fanuc CNC Control
SAMCHULLY HCH-18 Hydraulic Chuck
Live Milling / Live tool capable
Tool Presetter
Programmable Hydraulic Tailstock
PCMCIA Card Interface
12 Station Automatic Turret
Foot Switch
Oil Skimmer
Coolant System with pump
LNS Turbo Chip Conveyor
