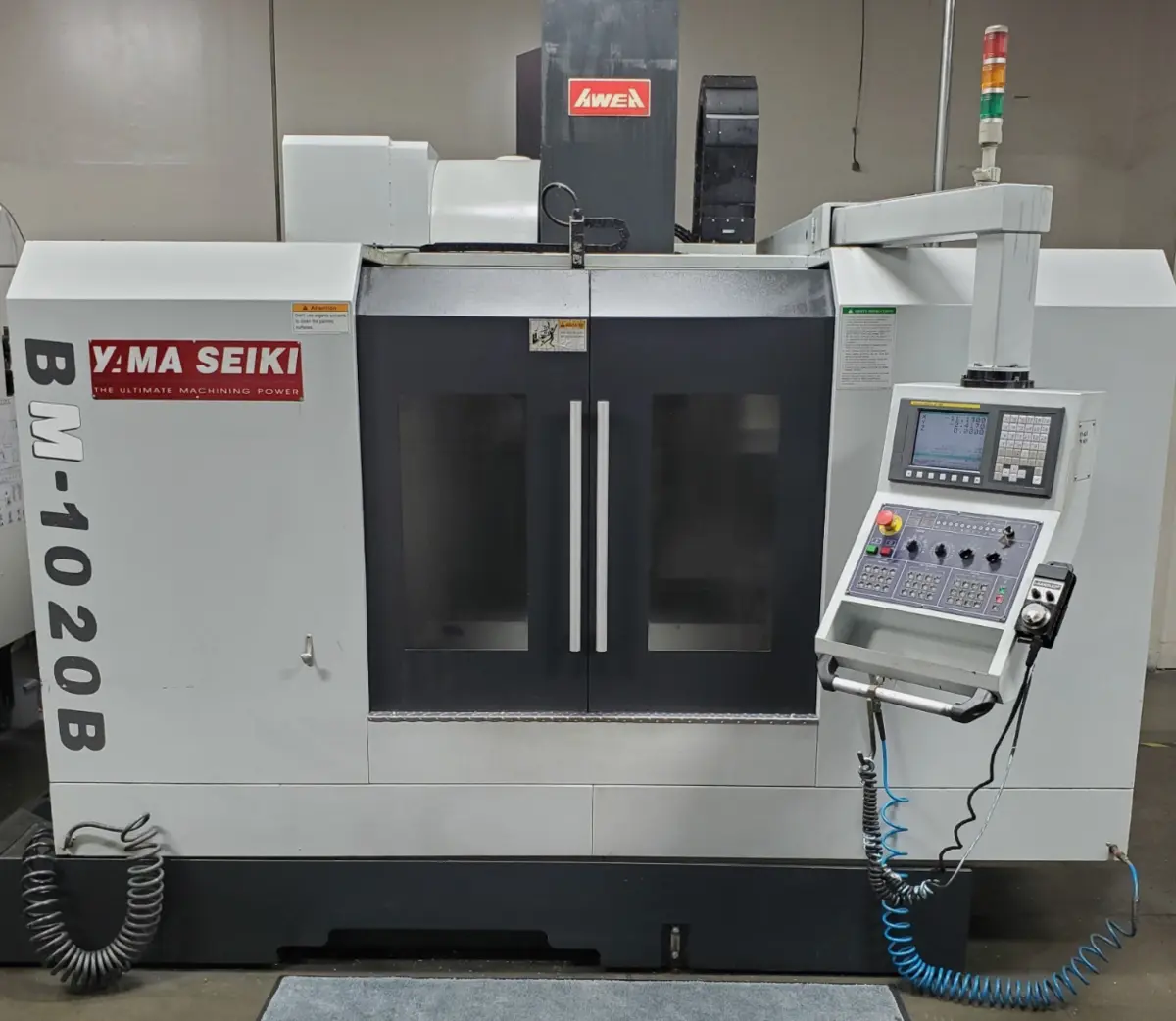

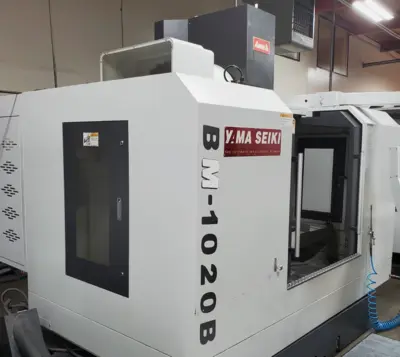

2015 YAMA SEIKI BM-1020B
Have one to sell?
ConditionUsed
1 available

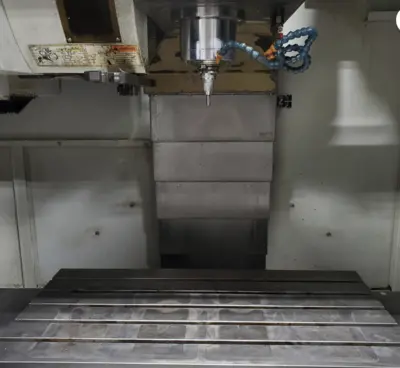

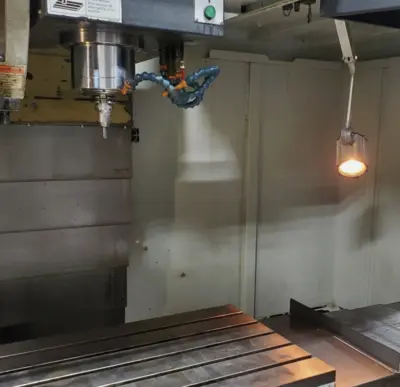

Used Vertical Machining Center with a 44.1" x 23.6" table, 30 HP spindle, max speed 10,000 RPM, and CAT-40 taper. Equipped with FANUC Oi-MD, oil chiller, and pre-wiring for 4th axis. Weighs 15,000 lbs.

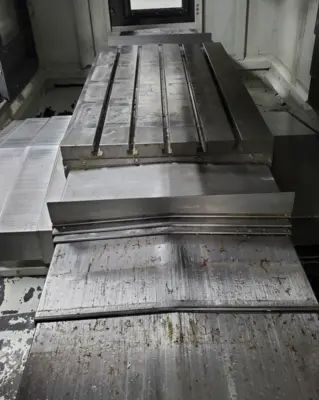

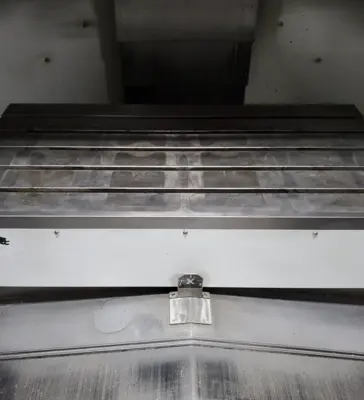

• TABLE WORKING SURFACE 44.1” x 23.6”
• TABLE LOAD CAPACITY 2,210 LBS.
• TRAVELS (X, Y, Z) 40.2” x 23.6” x 23.6”
• SPINDLE CENTER to COLUMN 26.8”
• RAPID TRAVERSE RATE, X&Y 1181 IPM
• TOOL CHANGER ARM STYLE 24
• TOOL CHANGE TIME 1.6 Sec Tool to Tool
• SPINDLE HORSEPOWER 30 HP (peak rating)
• SPINDLE SPEEDS RANGE 10,000 RPM

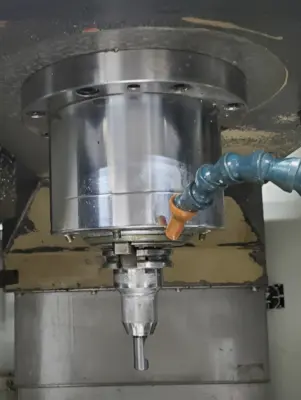

• SPINDLE TAPER CAT-40
• WAY SYSTEM BOX WAY
• WEIGHT 15,000 LBS.
• HEAVY DUTY BOX WAY DESIGN

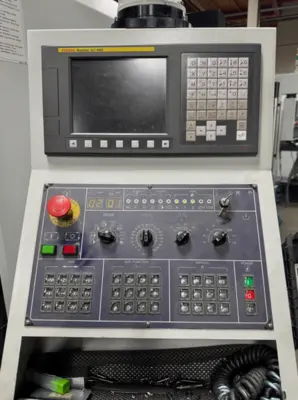

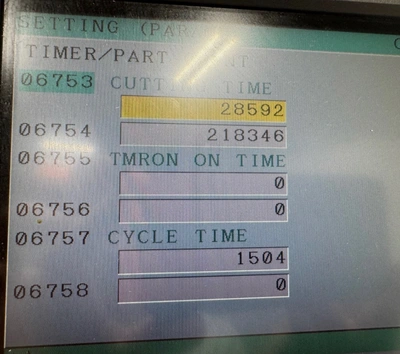

• FANUC Oi-MD with 10.4” Color LCD Monitor
• FLASH DRIVE, RS-232 PORT, ETHERNET
• FANUC AICC with 40 Block Look Ahead
• RIGID TAPPING
• CHIP AUGER
• SPINDLE OIL CHILLER
• BIG PLUS SPINDLE
• CHIP WASH DOWN / COOLANT PUMP / OIL SKIMMER
• COOLANT THRU SPINDLE PREP PRE-WIRE
• 4th AXIS PRE-WIRE
• MPG (MANUAL PULSE GENERATOR) HANDWHEEL for FANUC
