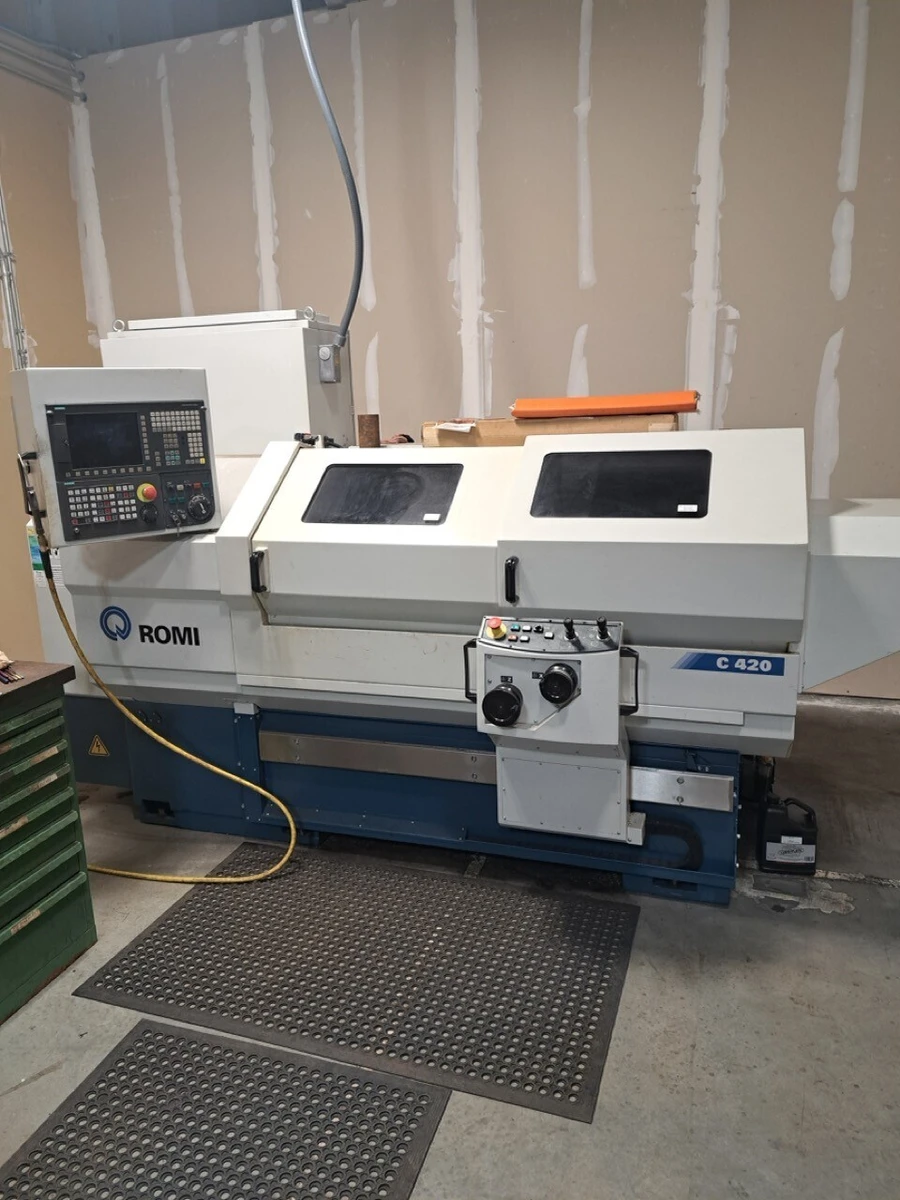

2024 ROMI C-420
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used. Specs: 16.92" swing, 39" centers, A2-5 spindle nose, 3–3500 RPM, 12.5 HP motor, 393.70 IPM traverse. Features Siemens 828D control, 8" chuck, hand wheels, and conversational control. Approx. weight: 5500 lbs.
Distance Between Centers: 39″
Swing Over Bed: 16.92″
Swing Over Cross Slide: 7.87″
Cross Slide (X) Travel: 8.66″
Bed Width: 12″
Bed Height: 13.77″
Spindle Nose: A2-5 ASA
Hole Through Spindle: 2.08″
Range of Spindle Speeds (inf variable): 3–3500 RPM
Rapid Traverse (Z): 393.70 IPM
Rapid Traverse (X): 393.70 IPM
Tailstock Quill Travel: 4.72 inches
Quill Diameter: 2.36 inches
Quill Taper Hole: 4MT
Main Motor: 12.5 HP
Approximate Floor Space: 122″ x 50″
Approximate Weight: 5,500 lbs

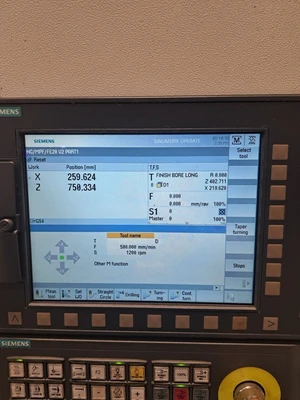

Siemens 828D Control

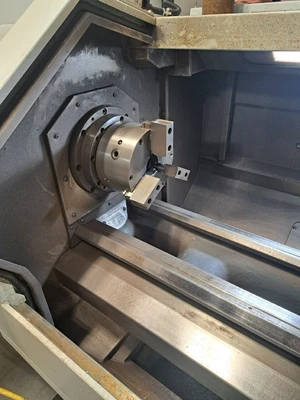

8″ Chuck

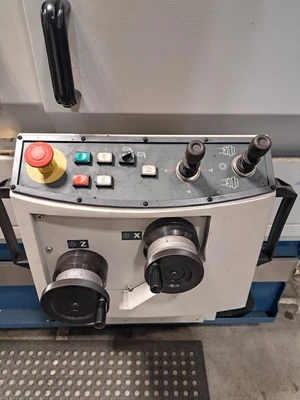

Hand Wheels
Conversational Control
