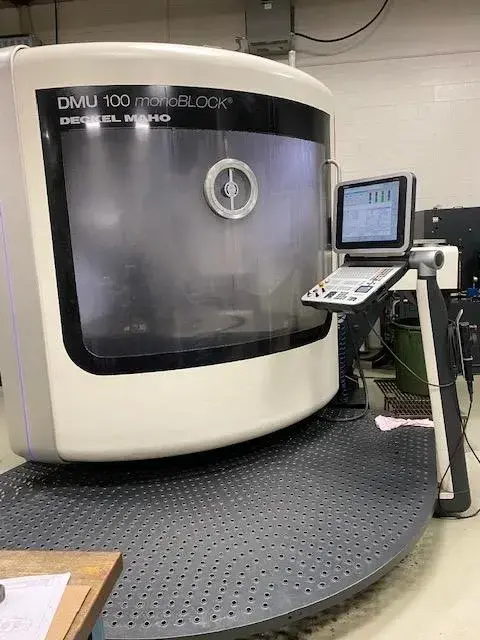

2008 DMG Mori DMU 100 Monoblock 5-Axis Vertical Machining Center with TSC
Have one to sell?
ConditionUsed
1 available
This 2008 DMG Mori DMU 100 Monoblock 5-axis vertical machining center comes equipped with coolant through the spindle, a Blum laser, and an M&H measuring probe, running on a Heidenhain iTNC 530 control. It offers 49.2" of X travel, 28" of Y travel, and 28" of Z travel, with an 18,000 RPM spindle at 20.1 HP, a 32-tool changer, and a 59.1" x 31" table with an integrated NC rotary table.
Table Size: 59.1" x 31"
Max Table Load: 1,760 lbs
Spindle Head Swivel Range: -120° / +30°
Spindle Head Nutating: 0 to 90°
Table Indexing: 0.001°
Heidenhain iTNC 530 Control

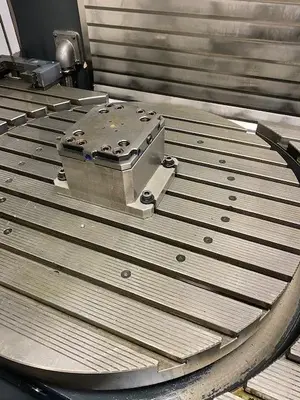

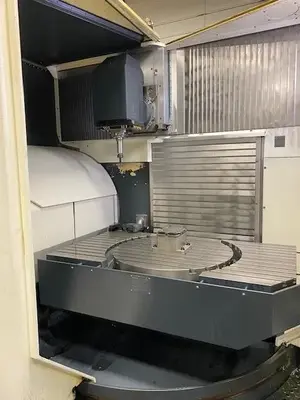

NC Rotary Table Integrated Into Rigid Table
Blum Laser
M&H Measuring Probe
Chip Conveyor
Production Package:
Coolant Through Spindle Centre

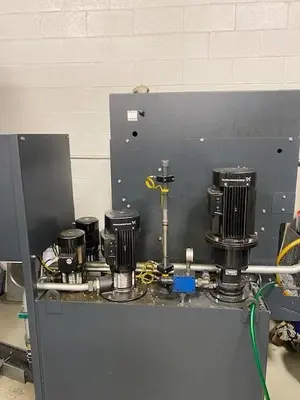

Coolant Pump: 580 PSI / 6 GPM (Theoretical Pump Performance)
Coolant Tank: 160 Gallons
Paper Band Filter
Rotating Clear-View Window
Chip Rinsing in Cabin Door
This 2008 DMG Mori DMU 100 Monoblock 5-axis vertical machining center comes equipped with coolant through the spindle, a Blum laser, and an M&H measuring probe, running on a Heidenhain iTNC 530 control. It offers 49.2" of X travel, 28" of Y travel, and 28" of Z travel, with an 18,000 RPM spindle at 20.1 HP, a 32-tool changer, and a 59.1" x 31" table with an integrated NC rotary table.
The DMG Mori DMU 100 Monoblock, also searched as DMU 100 monoBLOCK, DMU100 Monoblock, DMU-100, DMU 100, DMG DMU 100 Monoblock, and Deckel Maho DMU 100 Monoblock, is a 5-axis vertical machining center (5-axis VMC) with a swivel spindle head and rotary table.
This 2008 machine has a max table load of 1,760 lbs, a spindle head swivel range of -120° / +30°, and 0.001° table indexing. It also comes equipped with a chip conveyor and a production package with a 580 PSI coolant pump, 160 gallon tank, paper band filter, rotating clear-view window, and chip rinsing in the cabin door.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| X | 49.2" |
| Y | 28" |
| Z | 28" |
| # Axis | 5 |
| Power | 20.1 hp |
| RPM | 18,000 RPM |
| # ATC | 32 |
| Control | CNC (HEIDENHAIN) |
Table Size: 59.1" x 31"
Max Table Load: 1,760 lbs
Spindle Head Swivel Range: -120° / +30°
Spindle Head Nutating: 0 to 90°
Table Indexing: 0.001°
Heidenhain iTNC 530 Control
NC Rotary Table Integrated Into Rigid Table
Blum Laser
M&H Measuring Probe
Chip Conveyor
Production Package:
Coolant Through Spindle Centre
Coolant Pump: 580 PSI / 6 GPM (Theoretical Pump Performance)
Coolant Tank: 160 Gallons
Paper Band Filter
Rotating Clear-View Window
Chip Rinsing in Cabin Door
