2017 HAAS ST-15
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe for sale, featuring 16.5" swing, 12" max machining diameter, 4000 RPM spindle speed, and 20 hp motor. Equipped with Haas 2-Axis CNC Control, 15" LCD, automatic tool presetter, and more.
Capacity: Swing ............................. 16.5 "
Maximum Machining Diameter .................. 12 "
Distance Between Centers .................... 16 "
Spindle: Spindle Speed: Minimum (RPM) ....... 0 rpm
Maximum ..................................... 4000 rpm
Spindle Bore ................................ 3.5 "
Main Motor .................................. 20 hp
Spindle Nose ................................ A2-6

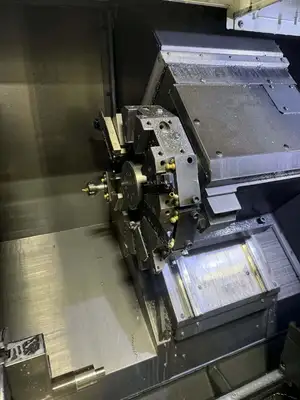

Turret: Number Of Positions ................. 12
X-Axis Travel ............................... 7.88 "
Z-Axis Travel ............................... 16 "
Quill Travel ................................ 3.8 "
Taper ....................................... 3 MT
Body Travel ................................. 20 "
Chuck: Diameter ............................. 8.3 "
Hole Thru ................................... 2.5 "
Number of Jaws .............................. 3

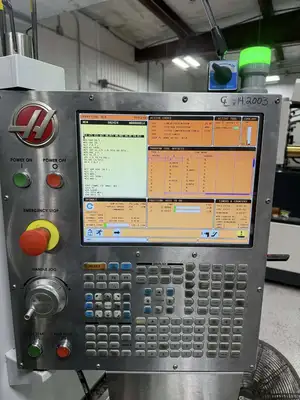

Haas 2-Axis CNC Control with 15" Color LCD Monitor
Memory Lock Keyswitch, USB Port, Rigid Tapping.
Automatic Tool Presetter
Belt-Type Chip Conveyor

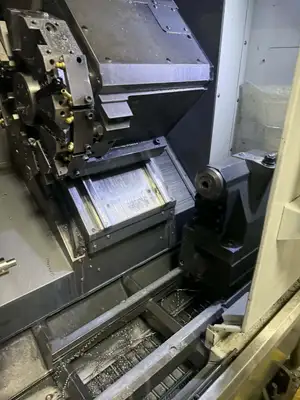

Tailstock with Hydraulic Quill
CabCool: CNC Control Cabinet Cooler; A/C unit
