| Swing | 30.3" | 769.62 mm |
| Machining Length | 70" | 1,778 mm |
| Chuck Size | 26" | 660.4 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 800 RPM | 800 RPM |
| Control | CNC (FAGOR) | CNC (FAGOR) |
| Dimensions | 72" x 88" x 160" | 72" x 88" x 160" |
| Weight | 11,800 Lbs | 11,800 Lbs |
Chuck Size 26"
Swing 30.375"
Spindle Speed 800 RPM
Distance Between Centers 70"

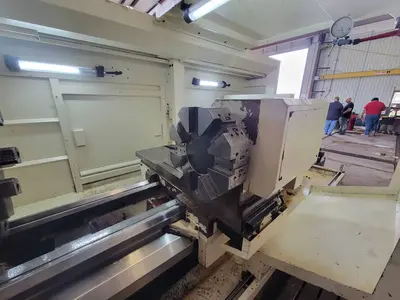

Turret 8 Position
Spindle Bore 9"
Cross Slide Travel 16
Motor 25 HP
Longitudinal Travel (Z-Axis) 70"
Ball Screw Diameter (Z-Axis) 2"
Ball Screw Diameter (X-Axis) 1.25"
Feed Rate 0-196 IPM

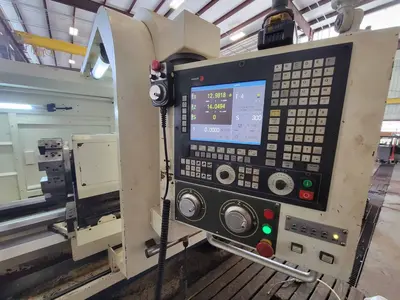

Control Fagor 8055TC

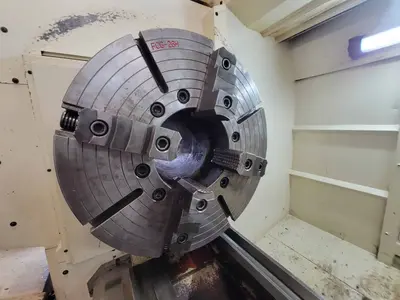

26" Heavy Duty Steel Body 4-Jaw Chuck
RS-232 C Serial Communication Line
USB Connection
A2-15 Spindle Nose
Ethernet
This equipment is currently unavailable. Similar equipment available now is shown below.
