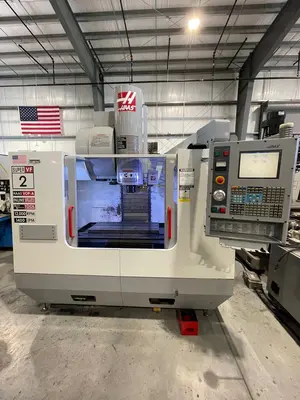

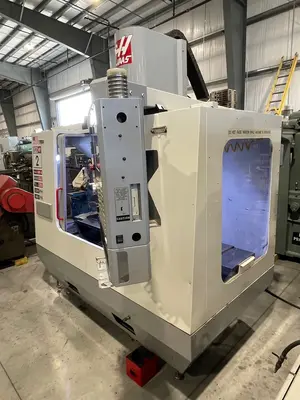

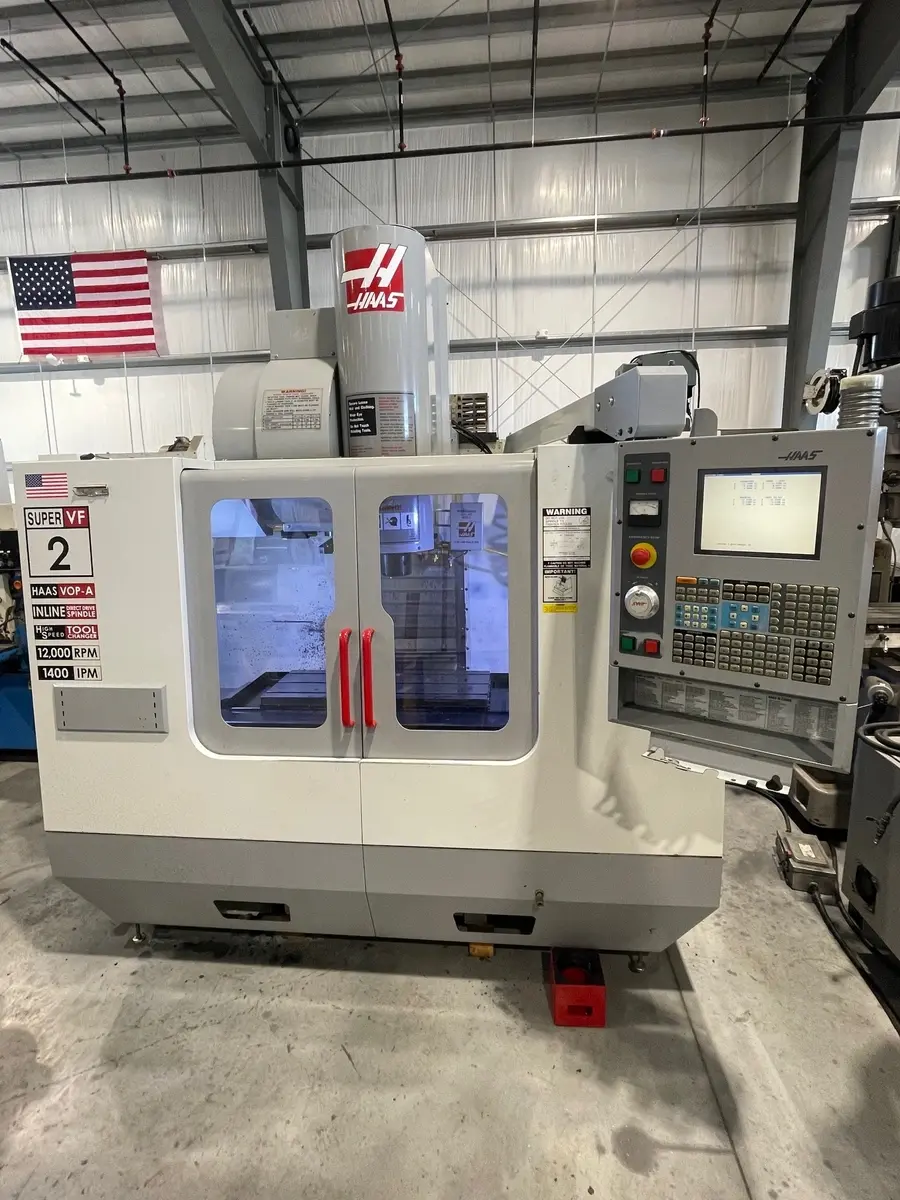

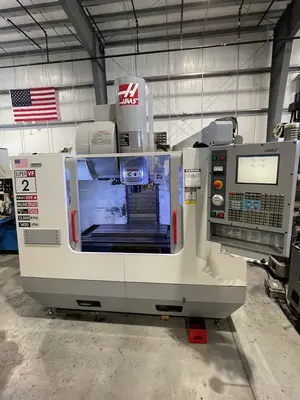

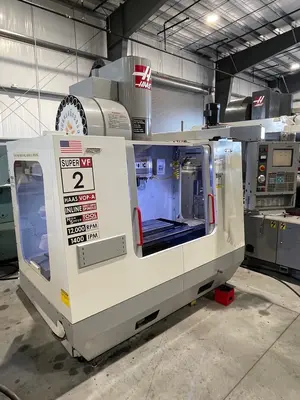

2003 HAAS VF-2SS

Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2SS
Year:
2003
Stock #:
X3X1983
Used Vertical Machining Center available. Features a 30" x 16" x 20" travel, BT-40 taper, 12,000 RPM spindle, and 24-tool changer. Includes programmable coolant, chip auger, and air gun. Wired for 230V/3 phase/60HZ.
X30"762 mm
Y16"406.4 mm
Z20"508 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC2424
TaperBT-40BT-40
Table-W14"355.6 mm
Table-L36"914.4 mm
# Axis33
ControlCNC (HAAS)CNC (HAAS)
Dimensions111’’ L x 91’’ W x 91’’ H111’’ L x 91’’ W x 91’’ H
Weight8000 Lbs8000 Lbs

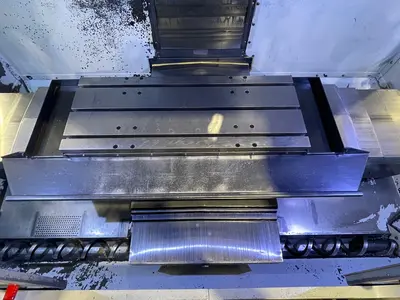

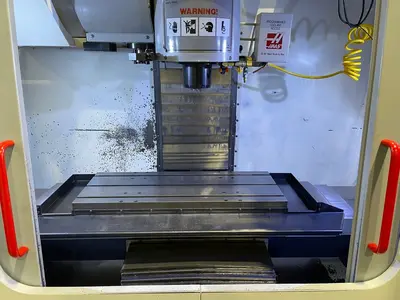

Table size- 16” x 36”
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Maximum distance from spindle nose to table- 24”
Minimum distance from spindle nose to table- 4”
Maximum spindle speeds- 12,000 R.P.M.
Max cutting rate- 833 I.P.M.
X,Y,Z Rapids- 1400 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3”
Max tool length- 11”
Max tool weight - 12 Lbs.

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

Programmable coolant nozzle
Side mount tool changer 24 tool station
Telescopic way covers
Air gun
(6) Leveling pads

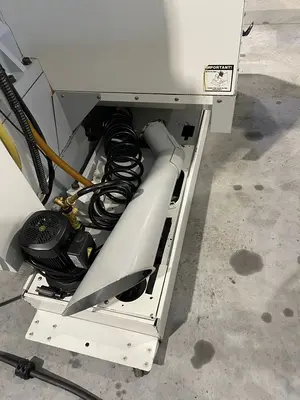

Chip Auger
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Control options- Programmable coolant, Rigid tapping, DNC, M19 spindle orient, Quick code

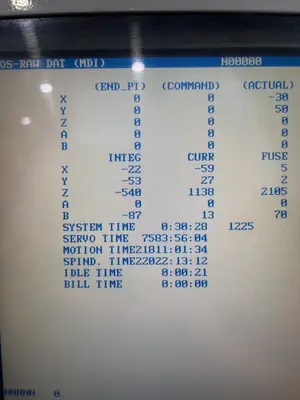

Machine hours -Servo Time 7,583, Motion Time 21,811, Spindle Time 22,022

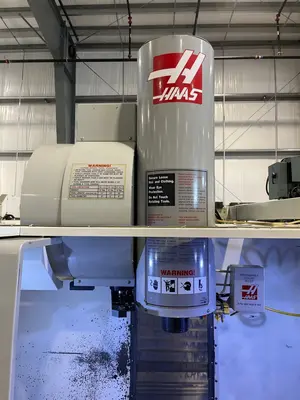

30 H.P. Spindle motor

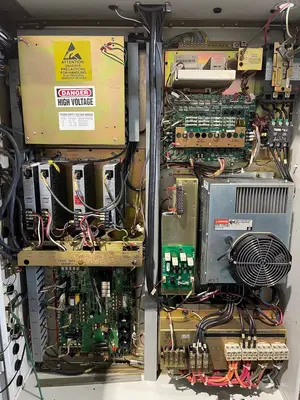

Machine is wired for 230 Volt / 3 phase / 60 HZ
