| X | 26" | 660.4 mm |
| Y | 14" | 355.6 mm |
| Z | 18" | 457.2 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 29" | 736.6 mm |
| # Axis | 3 | 3 |
| Dimensions | 72” L x 90” W x 94” H | 72” L x 90” W x 94” H |
| Weight | 6,500 Lbs. | 6,500 Lbs. |

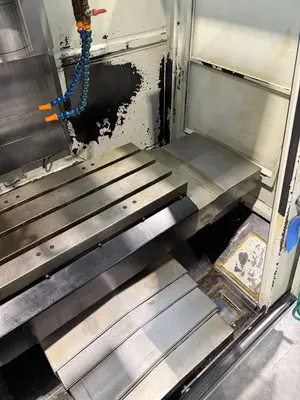

Table size- 30” x 14”
Max table weight- 750 Lbs.
Max spindle speed- 8,000 R.P.M.
ATC # of tools- 20 (side mount)
Tool change time- 3 seconds
X & Y axis rapids- 945 I.P.M.
Z axis rapids- 750 I.P.M.

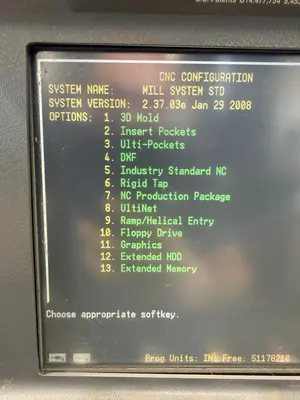

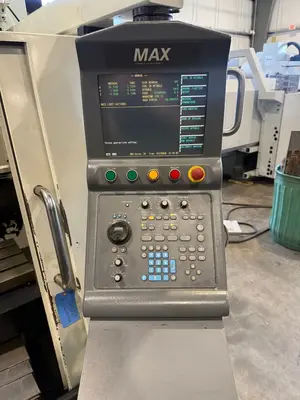

Winmax CNC Control / Touch screen Version 2.37.03e Jan 29/2008’
Control options- 3D mold, Insert Pockets, Ulti-pockets, DXF, Industry Standard NC, Rigid Tap, NC Production Package, Ultinet, Ramp/Helical Entry, Floppy drive, Graphics, Extended HDD, Extended memory
15 H.P. Main spindle motor

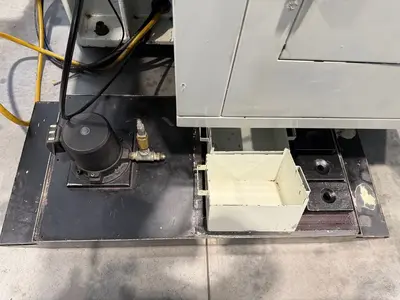

Coolant tank & pump
(6) Leveling pads
Machine is currently wired 220 / 3 phase / 60 H.Z.
This equipment is currently unavailable. Similar equipment available now is shown below.
