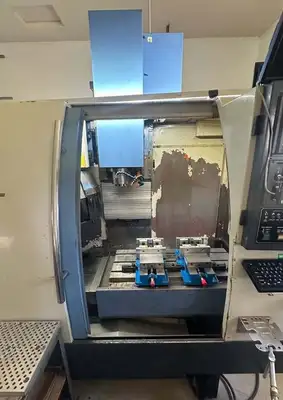

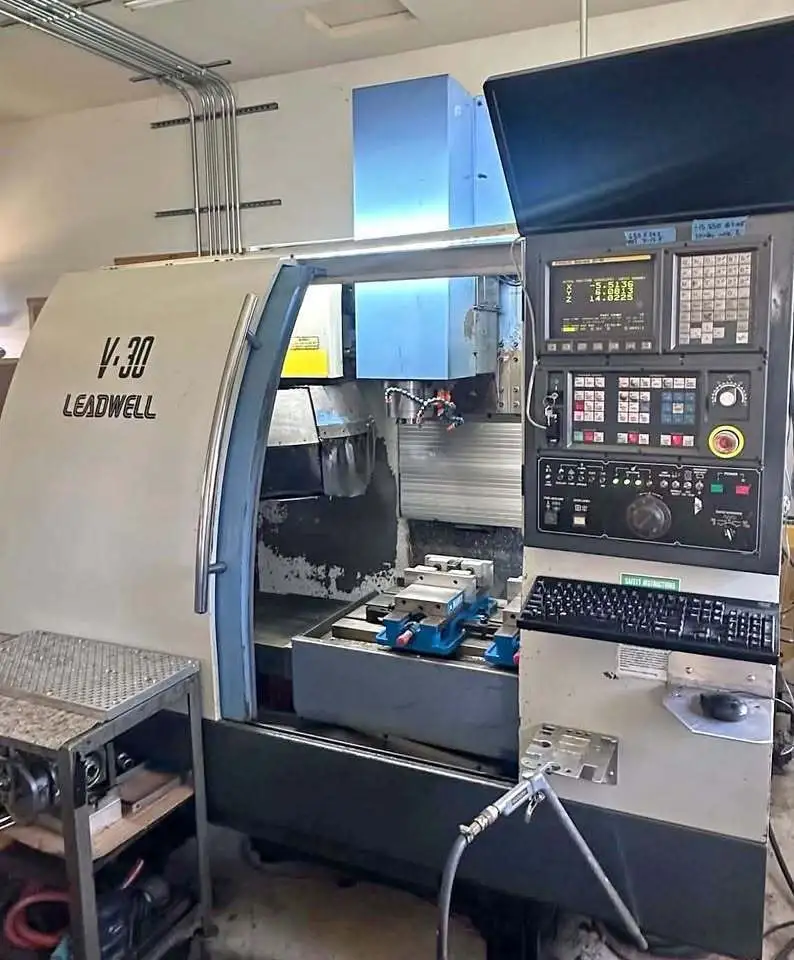

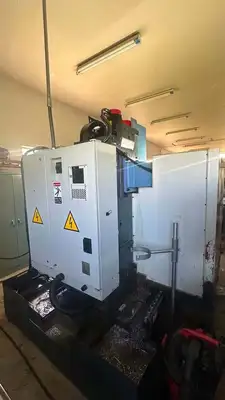

1999 LEADWELL V-30

• Table size: 890 × 400 mm (35” × 15.7”)
• Table load capacity: 300 kg (660 lbs)
• Table height: 780 mm (30.7”)
• Spindle nose to table: 130–540 mm (5”–21”)
• Spindle center to column: 438 mm (17”)
• Rapid feedrates (X/Y/Z): 20 / 20 / 15 m/min (787 / 787 / 590 ipm)
• Cutting feedrate: 0–5 m/min (0–196 ipm)
• Feed motors (Fanuc):
• X/Y/Z power: 1.0 / 1.0 / 2.1 kW
• Motor type: AC α-6 / AC α-6 / AC α-12
• ATC:
• Type: Armless (Drum)
• Capacity: 20 tools
• Tool shank: CAT 40
• Pull stud: Same stud as Haas
• Max tool diameter: 80 mm (3.1”)
• Max tool length: 250 mm (9.8”)
• Max tool weight: 7 kg (15 lbs)
• Tool-to-tool: 8 sec
• Chip-to-chip: 14 sec
• Pocket pitch: 95 mm (3.74”)
• Accuracy:
• Positioning: ±0.01 mm (full travel)
• Repeatability: ±0.005 mm
• Machine size:
• Footprint: 2250 × 2100 mm (88.5” × 82.7”)
• Height: 2368 mm (93”)
• Weight: 4500 kg (9900 lbs)
• Power requirement: 20 kVA
