| Swing | 24" | 609.6 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 4 | 4 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC | CNC |
-- 40 ATC
-- CHIP CONVEYOR
-- SUB-SPINDLE
-- LIVE MILLING - 10,000RPM
EXTERNAL COOLANT RECENTLY INSTALLED
-- WGT: 20,794
-- MAXIMUM SWING 24.01"
-- MAXIMUM SWING OVER CARRIAGE 17.71" -24.01"
-- MAX. BAR 3.0"
-- MAIN SPINDLE 35-3500 / 25HP
-- SECOND SPINDLE BORE 2.99"
-- SECOND SPINDLE SPEED 35-3500
-- MAGAZINE CAPACITY 40 ATC
-- ROTARY TOOL SPINDLE SPEED 6,000 RPM
-- ROTARY TOOL SPINDLE HORSEPOWER 20 HORSEPOWER
-- TRAVEL Y-AXIS / -4.13"
-- TRAVEL X-AXIS 22.83"
-- TRAVEL Z-AXIS 43.11"
-- CURRENTLY 480V
MAIN SPINDLE CHUCK – 12”

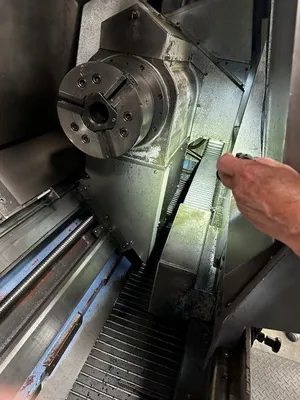

-- SUB-SPINDLE CHUCK - 10" - 3 JAW - KITAGWA B-210
This equipment has been sold. Similar equipment available now is shown below.
