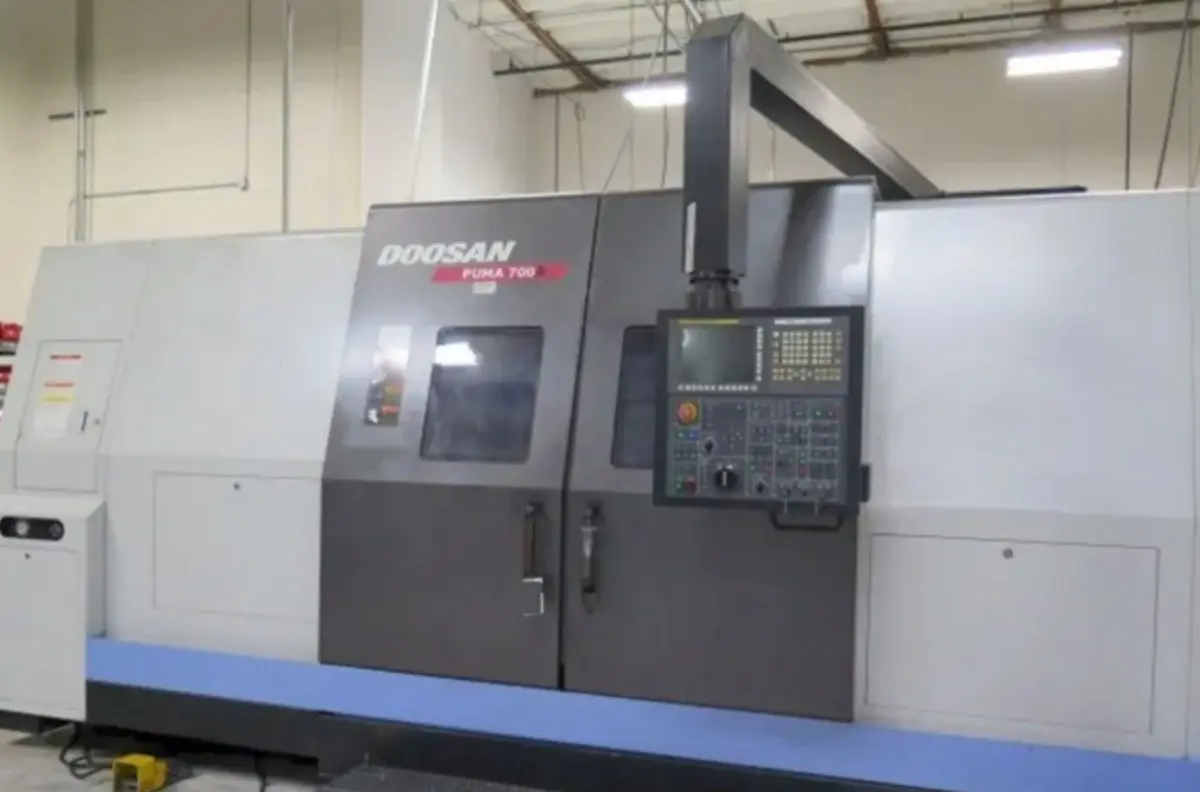

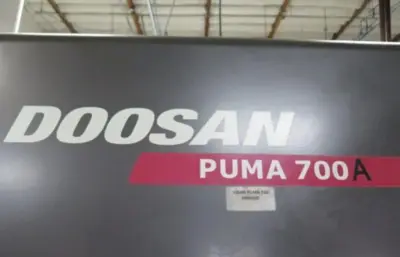

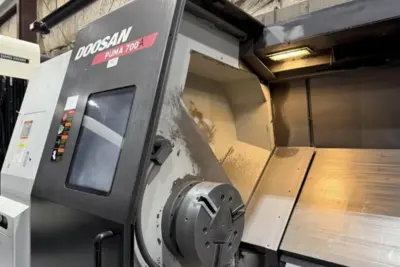

2013 DOOSAN Puma 700A

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Request Financing
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
DOOSAN
Model:
Puma 700A
Year:
2013
Stock #:
X3X3414
Status:
For Sale

Description

Used CNC Lathe features a 40.6" swing, 60" machining length, 18" chuck, and 6.5" bar capacity. Equipped with Fanuc Series 32i, hydraulic tailstock, tool presetter, and chip conveyor. Max RPM: 1,500. 60 hp power.

Swing40.6"1,031.2 mm
Machining Length60"1,524 mm
# Axis22

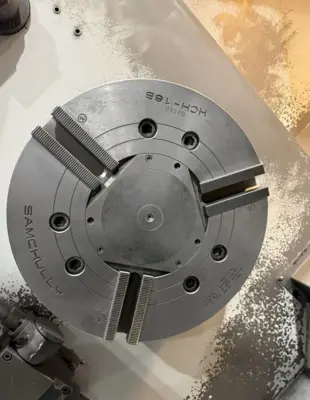

Chuck Size18"457.2 mm
Bar Capacity6.5"165.1 mm
Power60 hp44.7 kW
Max RPM1,500 RPM1,500 RPM
Turning Dia35.4"899.16 mm
TailstockYesYes
Live ToolingNoNo
Sub SpindleNoNo
ControlCNC (Fanuc)CNC (Fanuc)
Dimensions227" x 124" x 110"227" x 124" x 110"
Weight37,00037,000

Distance Between Centers 63"
Turning Diameter 35.4"
Power 60 hp
Max RPM 1,500 RPM
Hole Thru 7 in

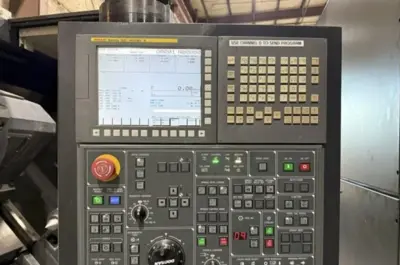

Fanuc Series 32i-Model A

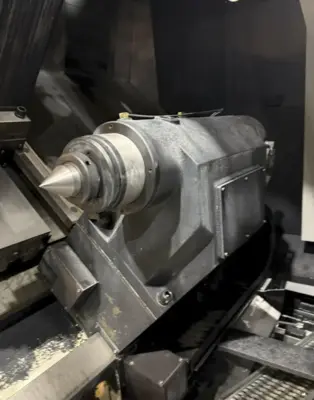

Hydraulic Tailstock
Tool Presetter

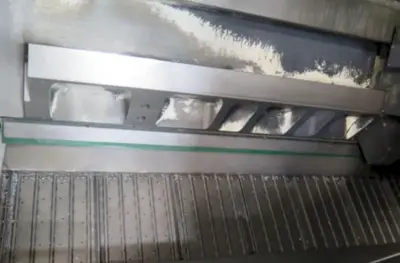

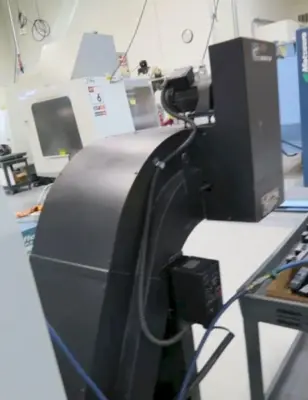

Chip Conveyor
