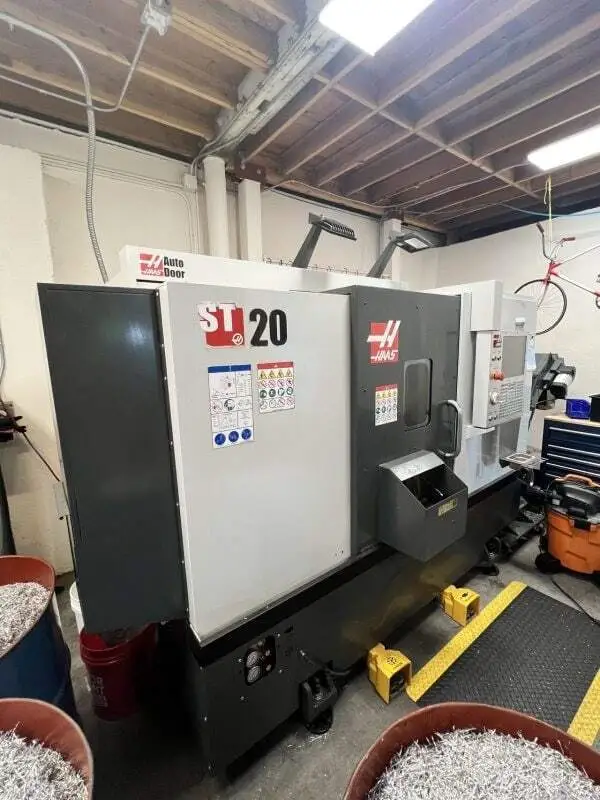

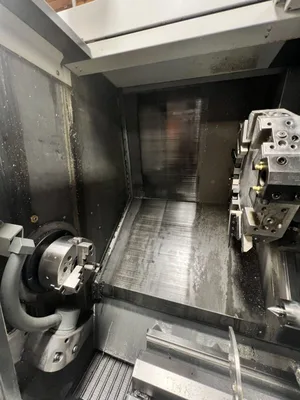

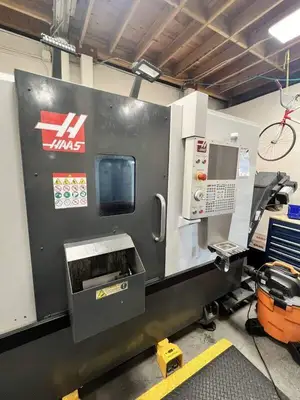

2020 HAAS ST-20
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, used. Features: 2.0″ bar capacity, 10″ chuck size, 4,000 RPM spindle speed, 20 HP motor, 12-station turret, and more. Equipped with Haas CNC Control, belt conveyor, lighting, parts catcher, and programmable tailstock.
Bar Capacity: 2.0″
Chuck Size: 10″
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X-Axis Travel: 8.4″
Z-Axis Travel: 22.5″
Rapid Rate Z-Axis: 945 IPM
Rapid Rate X-Axis: 472 IPM

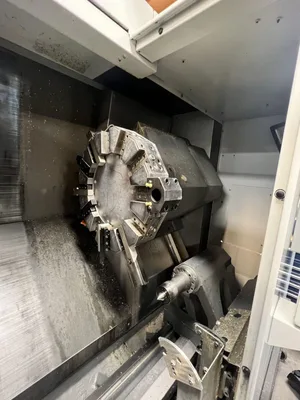

Turret Tools: 12 Station
Max Turning Length: 22.5″
Max Swing: 21.0″
Max Cutting Diameter: 11.8″
Approx Dimensions: 143″ x 90″ x 87″
Approx Weight: 10,500 Lbs.
Haas CNC Control
Belt Conveyor
High Intensity Lighting
Parts Catcher
Programmable Tailstock
