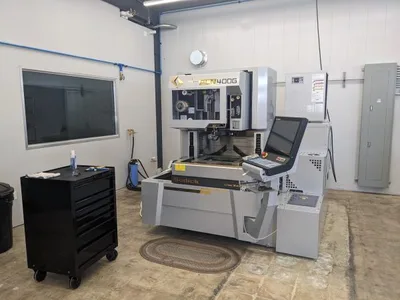

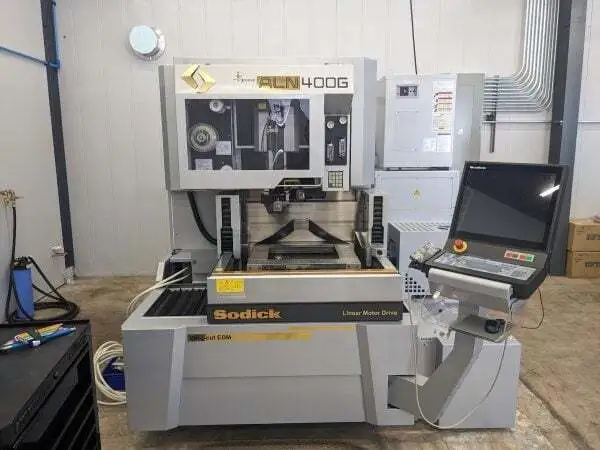

2022 SODICK ALN400G

Wire EDM
Manufacturer:
SODICK
Model:
ALN400G
Year:
2022
Stock #:
X3X3393
Wire EDM in used condition. Offers travel dimensions of X: 15.75”, Y: 11.81”, Z: 9.84”. Max workpiece size 23.6" x 18.5" and weight 1,102 lbs. Features Smart Control, Rotary Table, and more.
X15.75"400.05 mm
Y11.81"299.97 mm
Z9.84"249.94 mm
Dimensions87” x 96” x 87”87” x 96” x 87”
Weight7,500 LBS7,500 LBS

Max. Workpiece Size (Flushing): 23.6” x 18.5” x 9.4”
Max. Workpiece Weight (Flushing): 1,102 lbs
Max. Workpiece Size (Submerged): 23.6” x 18.5” x 9.0”
Max. Workpiece Weight (Submerged): 771 lbs
X-Axis Travel: 15.75”
Y-Axis Travel: 11.81”
Z-Axis Travel: 9.84”
U-Axis Travel: 5.91”
V-Axis Travel: 5.91”
Max. Taper Angle: + 25°
Wire Diameter Range (Min. ~ Max.): φ0.004” ~ 0.012”
Work Tank Dimensions: (W x D) 33.45” x 24.01”
Distance from Floor to Table Top: 39.17 ’’
Wire-Feed Speed (Max.): 16.5”/sec
Wire Bobbin Weight: 22 lbs
External Dimensions: (W x D x H) 87” x 96” x 87”
Machine Weight: 7,500 LBS

Sodick SPWE Smart Control

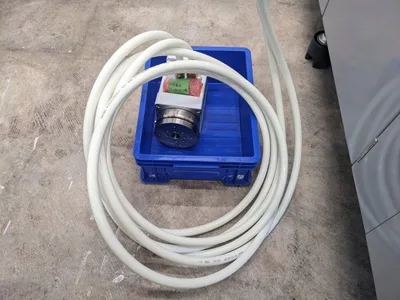

Sodick WS-4P Rotary Table
Table Interface
Taper Flex NEO
Rigid Precision Linear Motors (X, Y, U, V-Axes)
Absolute Glass Scales (X, Y, U, V-Axes)
TH COM (Thermal Displacement Compensation System)
iGroove – Wire Rotation Strategy
Fixed-Jet AWT (Automatic Wire Threader)

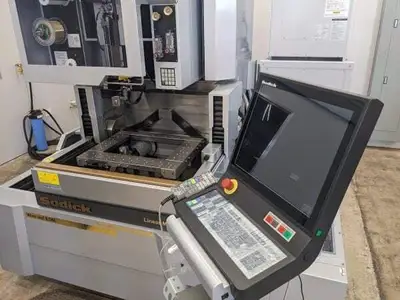

Remote Pendant
Water Deionizer
Automatic Voltage Regulator
Sodick LED Work Light

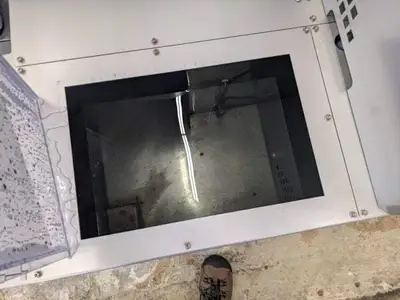

3-Sided Rise/Fall Work Tank

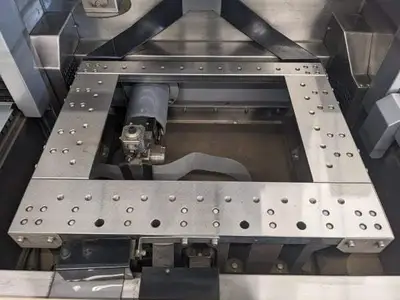

4-Sided Clamping Table
Z-Axis Automatic Fluid Level Control
Dielectric Cooling Unit (Chiller)

This equipment is currently unavailable. Similar equipment available now is shown below.
