2011 SODICK AQ600L
Have one to sell?
ConditionUsed
1 available

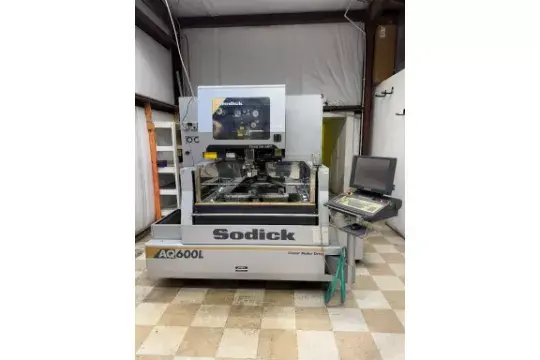

Used Wire EDM with 23.62" X-axis, 15.75" Y-axis, and 11.81" Z-axis travels. Equipped with LN2W Control, linear motor drives, and AWT. Submerged auto-threading, taper angle ±20°, supports wire diameter 0.006"-0.012".
X-Axis Travel 23.62″
Y-Axis Travel 15.75″
Z-Axis Travel 11.81″
U/V Axis Travel 3.15″ – 4.73″
Max Dimensions ( SUB) 31.1″ x 21.65″ x 9.84″
Max WP Weight (submerged) 1,741 lbs.
Work Tank Dimensions (inside) 44.68″ x 35.03″
Wire Diameter 0.006″ – 0.012″
Taper Angle ±20°
Wire Speed 16.53″ per sec (420 mm / sec)
Machine Dimensions 94.48″ x 115.35″ x 86.02″
Machine Tool Weight 10,648 lbs.
LN2W Control
Linear Motor Drives

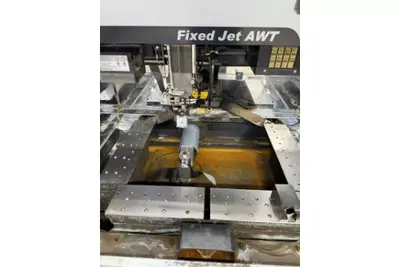

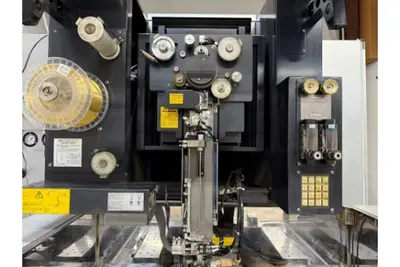

AWT
Dielectric System

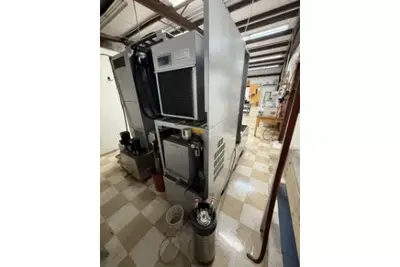

Chiller
Wire Chopper
