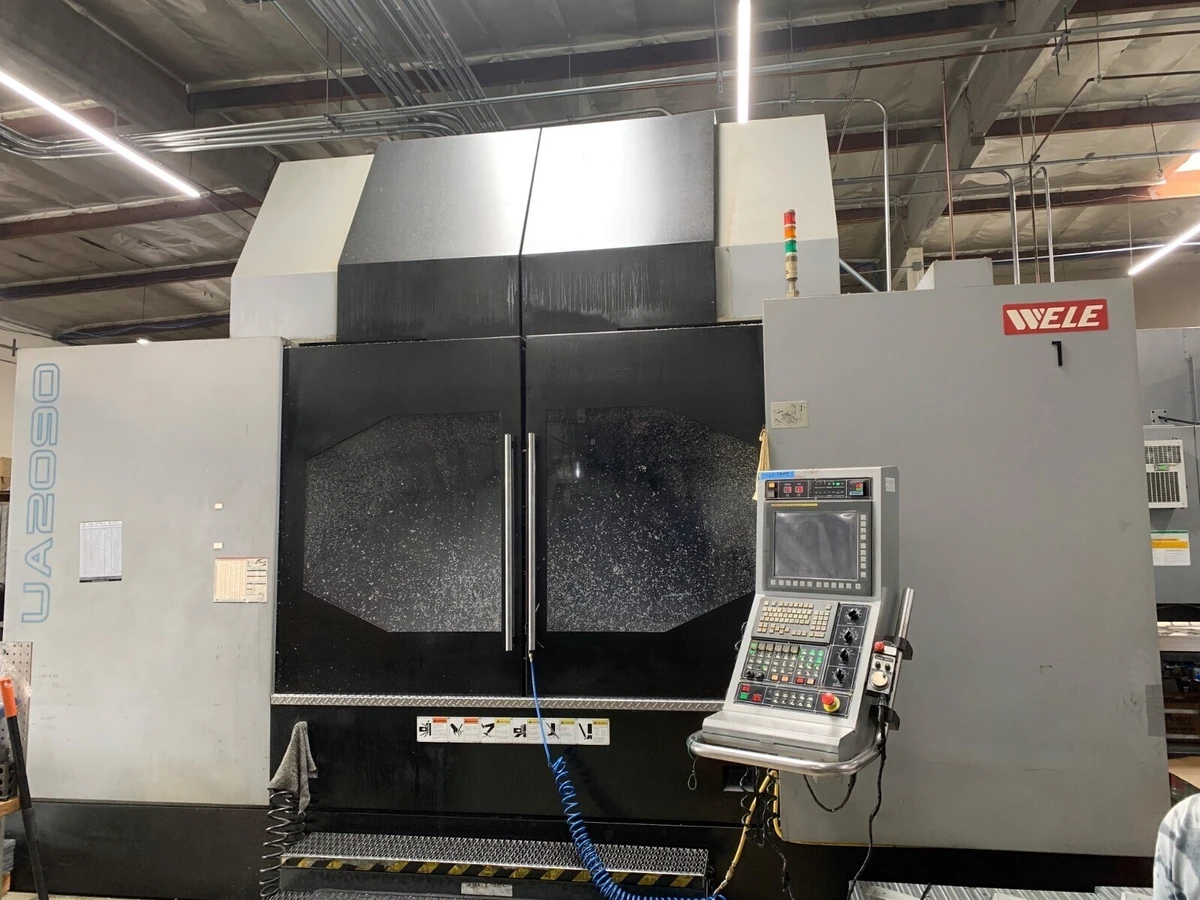

2014 TOYODA WELE UA2090
Have one to sell?
ConditionUsed
1 available

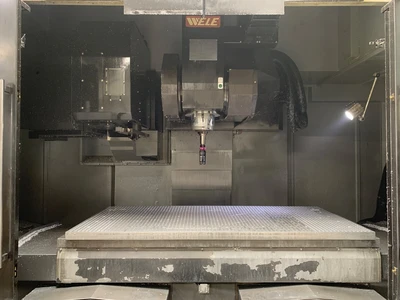

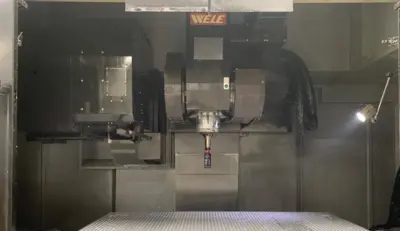

5-axis Vertical machining center, used, with 78.7"x35.4"x27.5" travel, ±40° A/B axis, 12,000 RPM HSK63A spindle, 48 tool ATC. Includes FANUC 31i B5, coolant system, chip conveyor, heat exchanger, and more.
CLAMPING AREA ........................84.6" X 35.4"
X-AXIS TRAVEL (TABLE MOVEMENT)..........78.7"
Y-AXIS TRAVEL (TABLE MOVEMENT)..........35.4"
Z-AXIS TRAVEL (HEADSTOCK MOVEMENT)......27.5"
DISTANCE FROM TABLE TOP TO
SPINDLE FACE IN VERTICAL POSITION ......3.1" TO 30.7"
A-AXIS SWIVELING RANGE................± 40°
B-AXIS ROTATING RANGE (TABLE).........± 40°
MAXIMUM TABLE LOAD......................4,850 LB
SPINDLE DRIVE MOTOR ....................40 HP
SPINDLE OUTPUT TORQUE ..................811 FT-LB
SPINDLE TAPER...........................HSK63A TAPER
SPINDLE SPEED ..........................12,000 RPM DIRECT DRIVE
SPINDLE TYPE............................DIRECT DRIVE
RAPID FEEDRATE (X AND Y AXES)...........944 IPM
RAPID FEEDRATE (Z AXIS).................708 IPM
MAXIMUM CUTTING FEEDRATE................394 IPM
TOOL STORAGE CAPACITY...................48 ATC
STANDARD FLOOR SPACE....................209" X 130" X 157"

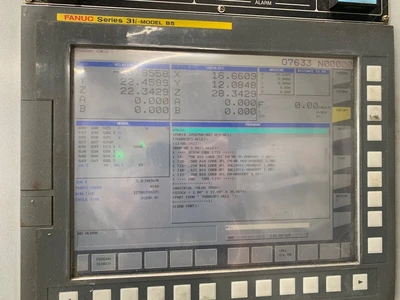

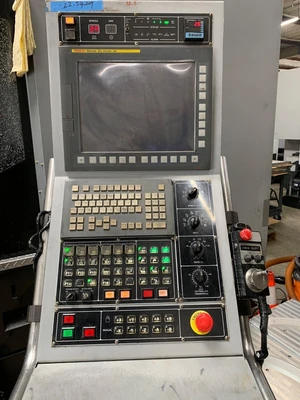

FANUC 31I B5
COOLANT SYSTEM AND TANK W/ 420 LTR. CAP.

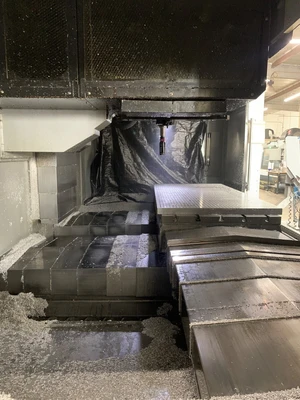

DRUM FILTER TYPE CHIP CONVEYOR
BED FLUSHING
FINISH AND ALARM LAMP
HEAT EXCHANGER
MPG REMOTE HANDWHEEL
MAGNETIC SCALE ON X, Y, AND Z AXES
WORK LIGHT
RS-232 INTERFACE
ROOF ENCLOSURE GUARDING SYSTEM
MAGNETIC ROTARY ENCODER OF A / B AXES
