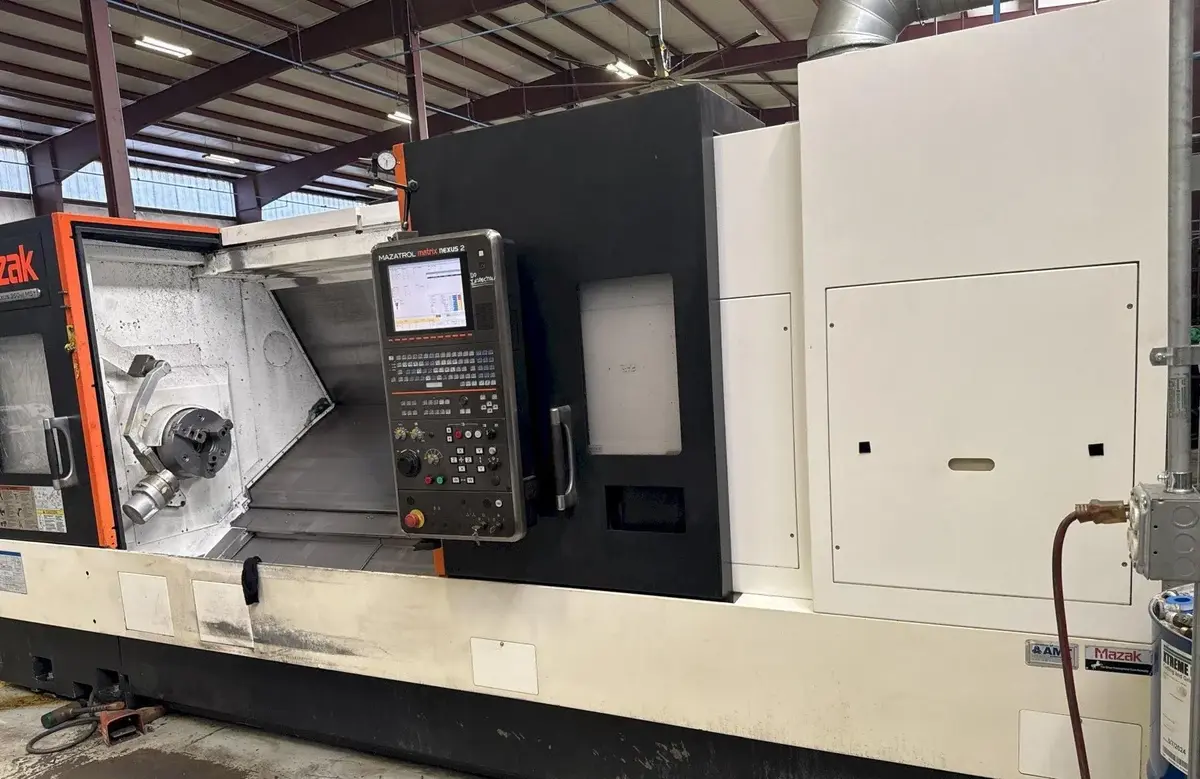

2014 Mazak QTN 350-II MSY CNC Lathe with Y-Axis, Sub Spindle
Have one to sell?
ConditionUsed
1 available

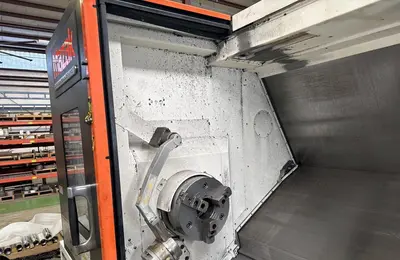

This 2014 Mazak QTN 350-II MSY CNC lathe pairs a Y-axis and 4,000 RPM live tooling with a sub spindle carrying a 10" chuck, all run by a Mazatrol Matrix Nexus 2 control. The main spindle has a 12" chuck, 4.05" bar capacity, 40 HP, and 3,500 RPM, with 32.68" of swing and a 16.6" turning diameter.
X-Axis Travel: 10.75"
Y-Axis Travel: 6.90"
Z-Axis Travel: 62.25"
Live Tooling Speed: 4,000 RPM

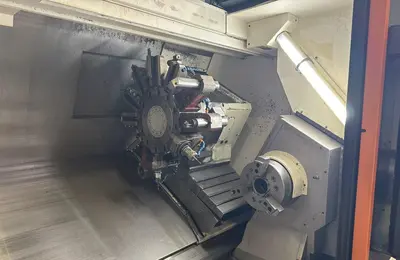

Turret Capacity: 12
Sub Spindle Chuck Size: 10"
Sub Spindle Bar Capacity: 2.55"
Sub Spindle Motor: 25 HP
Chip Conveyor
Coolant Tank & Pump

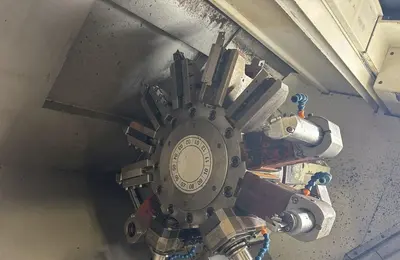

Misc Live and Static Holders

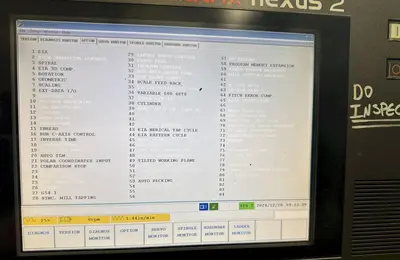

EIA/ISO Input Function
Mazak Tapping Boring Tornado
USB Interface
Milling Spindle Rigid Tapping
213 PSI High Power Coolant
Auto Tool Length Measurement
Scale Feedback
This 2014 Mazak QTN 350-II MSY CNC lathe pairs a Y-axis and 4,000 RPM live tooling with a sub spindle carrying a 10" chuck, all run by a Mazatrol Matrix Nexus 2 control. The main spindle has a 12" chuck, 4.05" bar capacity, 40 HP, and 3,500 RPM, with 32.68" of swing and a 16.6" turning diameter.
The Mazak QTN 350-II MSY, also searched as Mazak Quick Turn Nexus 350-II MSY, QTN-350II MSY, QTN 350 MSY, or QTN 350, is a CNC turning center with Y-axis live tooling and a sub spindle (mill-turn, twin spindle).
This 2014 machine has 10.75" of X-axis travel, 6.90" of Y-axis travel, and 62.25" of Z-axis travel, with a 12-station turret. The 25 HP sub spindle has a 2.55" bar capacity, and the machine comes equipped with 213 PSI high power coolant, auto tool length measurement, scale feedback, Mazak Tapping Boring Tornado, EIA/ISO input, a USB interface, a chip conveyor, and misc live and static holders.
All specifications are approximate, provided by the seller, and subject to buyer verification.
Imperial
| Swing | 32.68" |
| Machining Length | 62.2" |
| # Axis | 4 |
| Chuck Size | 12" |
| Bar Capacity | 4.05" |
| Power | 40 hp |
| Max RPM | 3,500 RPM |
| Turning Dia | 16.6" |
| Tailstock | No |
| Live Tooling | Yes |
| Sub Spindle | Yes |
| Control | CNC (Mazatrol Matrix Nexus 2) |
X-Axis Travel: 10.75"
Y-Axis Travel: 6.90"
Z-Axis Travel: 62.25"
Live Tooling Speed: 4,000 RPM
Turret Capacity: 12
Sub Spindle Chuck Size: 10"
Sub Spindle Bar Capacity: 2.55"
Sub Spindle Motor: 25 HP
Chip Conveyor
Coolant Tank & Pump
Misc Live and Static Holders
EIA/ISO Input Function
Mazak Tapping Boring Tornado
USB Interface
Milling Spindle Rigid Tapping
213 PSI High Power Coolant
Auto Tool Length Measurement
Scale Feedback
