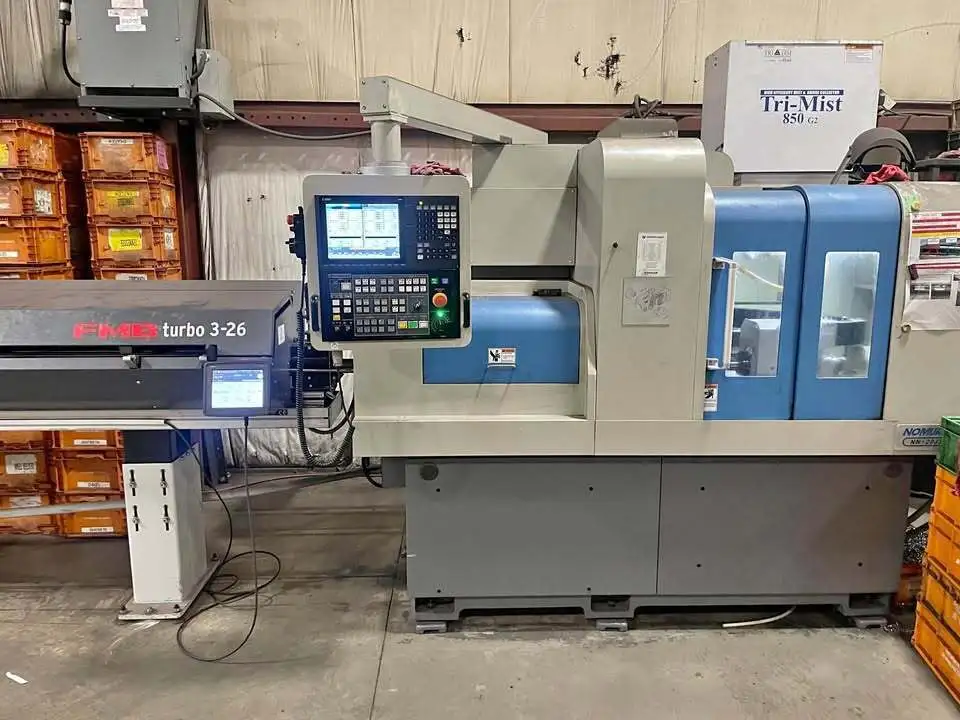

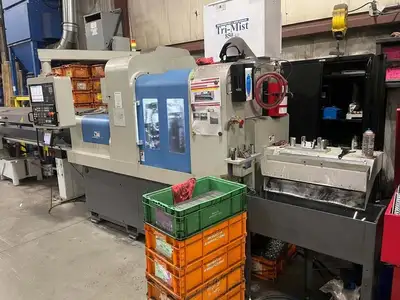

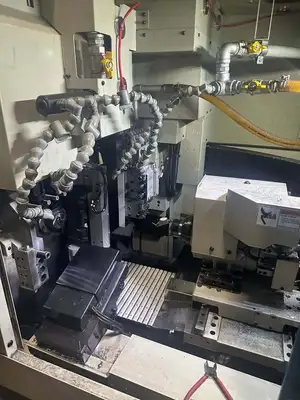

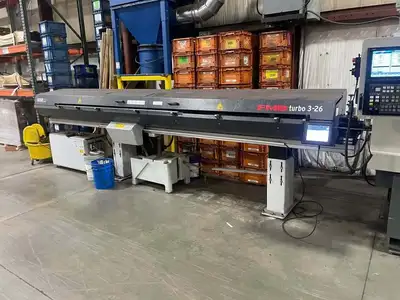

NOMURA NN-20J3XB

MACHINING CAPACITY
Max Machining Diameter.................... Ø20mm
Max Machining Length...... 200mm / 1 Chuck
Max Parts Unloading Length.................. 93mm

SPINDLE
Main Spindle Thru-Hole Dia............... Ø23mm
Spindle RPM (Main/Sub).............. 10,000 RPM
Sub Spindle Chucking Dia................... Ø20mm

TOOL
Max Number of Tools....................................... 28
Max Machining Drill............................... Ø10mm
Max Machining Tap......................................... M8

* MAIN
O.D. Tool................................. 6 (12.7x150 mm)
I.D. Tool........................... 4 (ER16) (OP: Rear 4)
Cross Drill................................................ 5 (ER16)
Cross Drill RPM................................ 6,000 RPM

* SUB
O.D. Tool....................... 2 (12.7x150 mm Max)
I.D. Fixed Tool........................................ 3 (ER16)
Cross Drill............................... 4 (ER16)(B2 Axis)
Cross Drill RPM................................. 6,000 RPM

FEED
Rapid Feed Rate... X1, Y1, X2, Y2: 28mm/min
Z1, Z2 : 30mm/min
Min Command Unit....................... 0.00001 mm
C-Axis Min Command Unit (Main/Sub).................... 0.00001°

MOTOR
Main Spindle Motor.......................... 3.7/1.5 kW
Cross Drill Motor..... 1.5/0.55 kW (Mitsubishi)
Sub Spindle Motor............................ 3.7/1.5 kW
Sub Rotary Motor... 1.5/0.55 kW (Mitsubishi)
Coolant Pump (Main/Sub)........... 0.25 kW x 2
Lubricant Pump...................................... 0.015 kW

DIMENSIONS, ETC.
Main Spindle Center Height........... 1,010 mm
Input Power Capacity.............................. 17 kVA
Air Pressure/Flow Rate........ 0.6 MPa.35L/min
Coolant Tank.................................................. 160 L
W x D x H................ 2,411 x 1,478 x 2,005 mm
Weight (Std Accessories Included)…. 2,800 kg

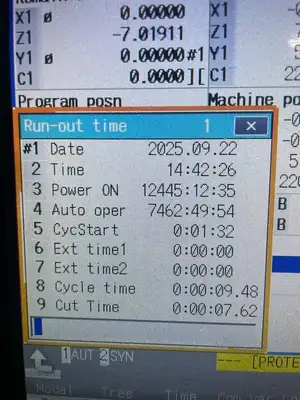

NC
NC Unit...................... M80 Type A (Mitsubishi)
NC Display........................... 10.4 Color TFT LCD
Memory Capacity............... 500KB (Mitsubishi)
No. of Tool Offset.......... 256 Sets (Mitsubishi)
