2004 HAAS TL-1
Have one to sell?
ConditionUsed
1 available

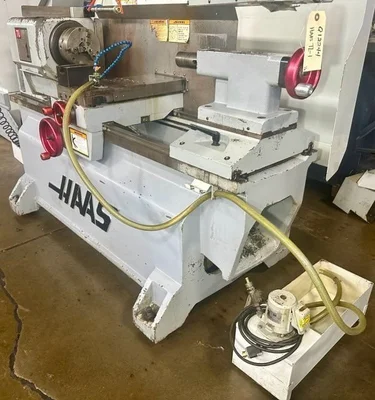

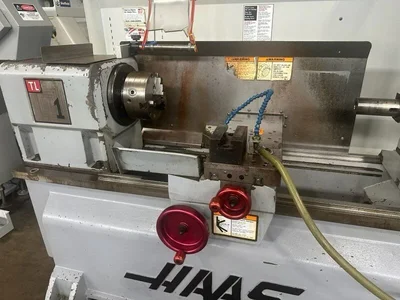

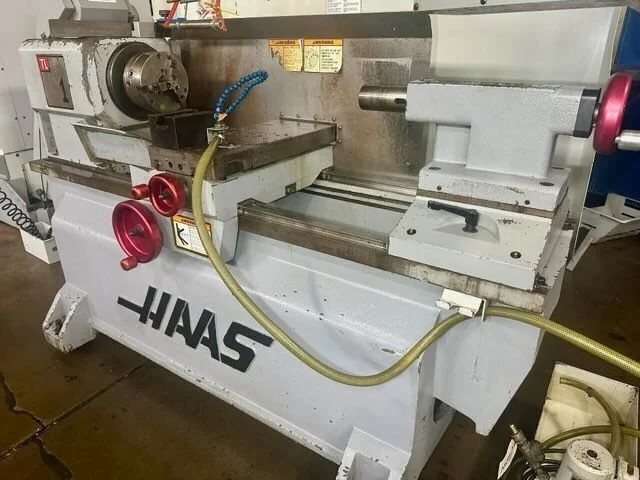

Used CNC Lathe offers a 16" max swing, 8" 3-jaw chuck, and 30" between centers. Equipped with Haas CNC Control, coolant tank, and full-length back splash. Measures 84"x94"x89", 4,100 lbs.
Max Swing Over Bed....................16"
Max Swing Over Cross Slide............ 9.5"
Chuck Size............................ 8" 3-Jaw
Max Distance Between Centers.......... 30"
Max Turning Diameter.................. 16"
X-Axis (Cross Travel)................. 8"
Z-Axis (Longitudinal Travel).......... 30"
X-Axis Rapid Traverse Rate............ 75 in/min.
Z-Axis Rapid Traverse Rate............ 150 in/min.
Spindle Nose.......................... A2-5
Spindle Bore.......................... 2.31"
Max Spindle Speed..................... 2,000 RPM
Spindle Power......................... 7.5 hp
Dimensions............................ 84" x 94" x 89"
Weight................................ 4,100 lbs
Haas CNC Control, 8" 3-Jaw Chuck, Full Length Back Splash, Coolant Tank with Pump
