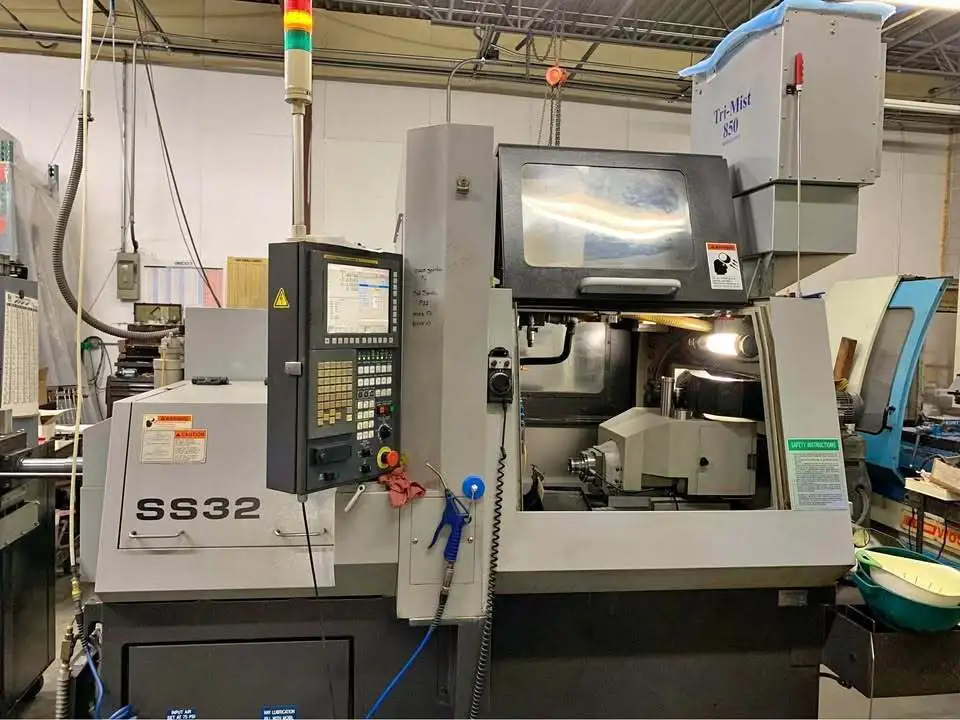

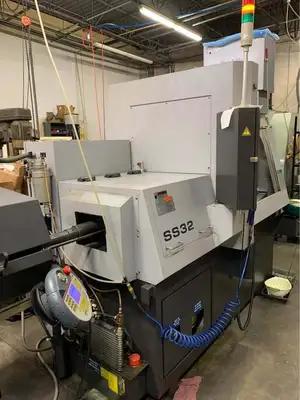

2012 TSUGAMI SS32
Have one to sell?
ConditionUsed
1 available
Used Swiss Type Automatic Screw Machine, bar capacity 32mm, max machining 320mm. Features Fanuc 32i control, FMB barfeed, chip conveyor, and high-pressure coolant. Live tool speeds up to 5,000 RPM.
Bar Capacity 32 mm
Max Machining Length 320 mm (12.6")
Max Drilling Diameter 0.47"
Max Tapping Diameter 0.39"
Max Back Spindle Chucking Diameter 1.25"
Max Back Spindle Drilling Diameter 0.39"
Max Back Spindle Tapping Diameter 0.31"
Tool Positions 24 Max
Live Tool Positions 6 Main
4 Sub
Live Tool Speed 5,000 RPM
Spindle Speeds (Main) 8,000 RPM
Spindle Speeds (Sub) 8,000 RPM
Main Spindle Motor 7.4 HP
Back Spindle Motor 5 HP
Machine Dimensions 79.5" x 66" x 79.5"
Weight 7,500 Lbs.
Fanuc 32i-Model B

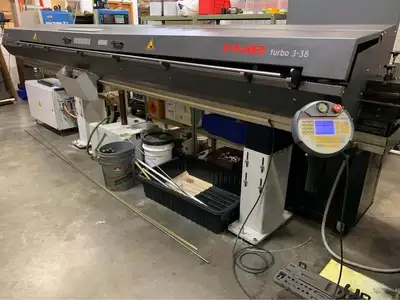

FMB Turbo 3-38 Barfeed
Chip Conveyor
Parts Catcher
Cool Jet High Pressure Coolant

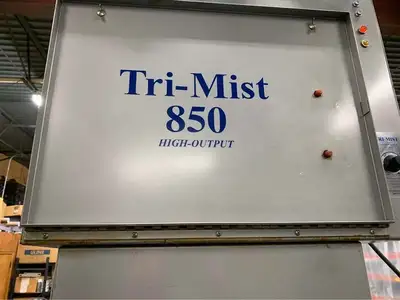

Tri Mist 850 Mist Collector
Misc Tooling
