2023 OMNITURN GT-75
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used, offers maximum 6” turning diameter, 12" X, 9" Z travel. Features include C axis, 5-C collet, 4000 RPM spindle, dual palm start, virtual factory training, and self-contained flood coolant system. 485 machine hours.
Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.
Tooling height- ½”

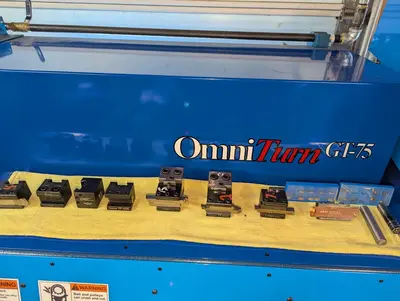

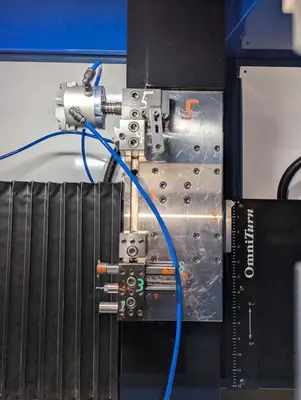

Tooling plate size- 6” x 14”
Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Interenal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.
Machines comes with 4 hours of factory training virtually
Machine hours- 485 Hours
C axis option

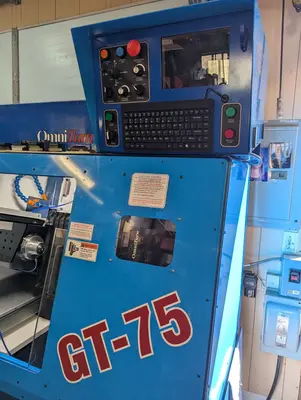

#G4 OMNI TURN PC based two-axis CNC & slide, RS-232 port, USB

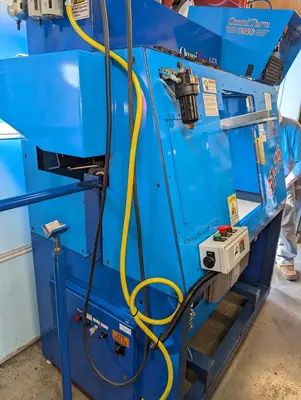

Pneumatic collet drawbar with regulator (M function controlled)

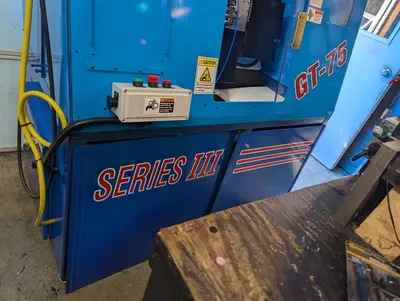

Operator station with dual palm cycle start buttons, collet control, and emergency stop
Spindle encoder for threading and IPR programing
Work light
Self-contained flood coolant system (M function controlled) Never used
Bar tube .825” capacity

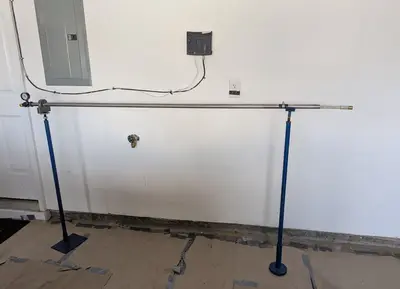

Simple rack loader

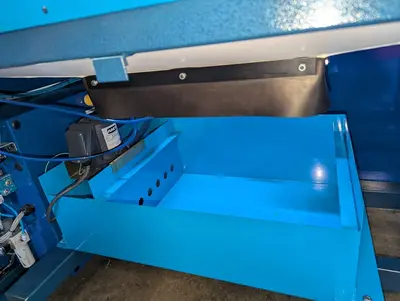

Removable chip pan

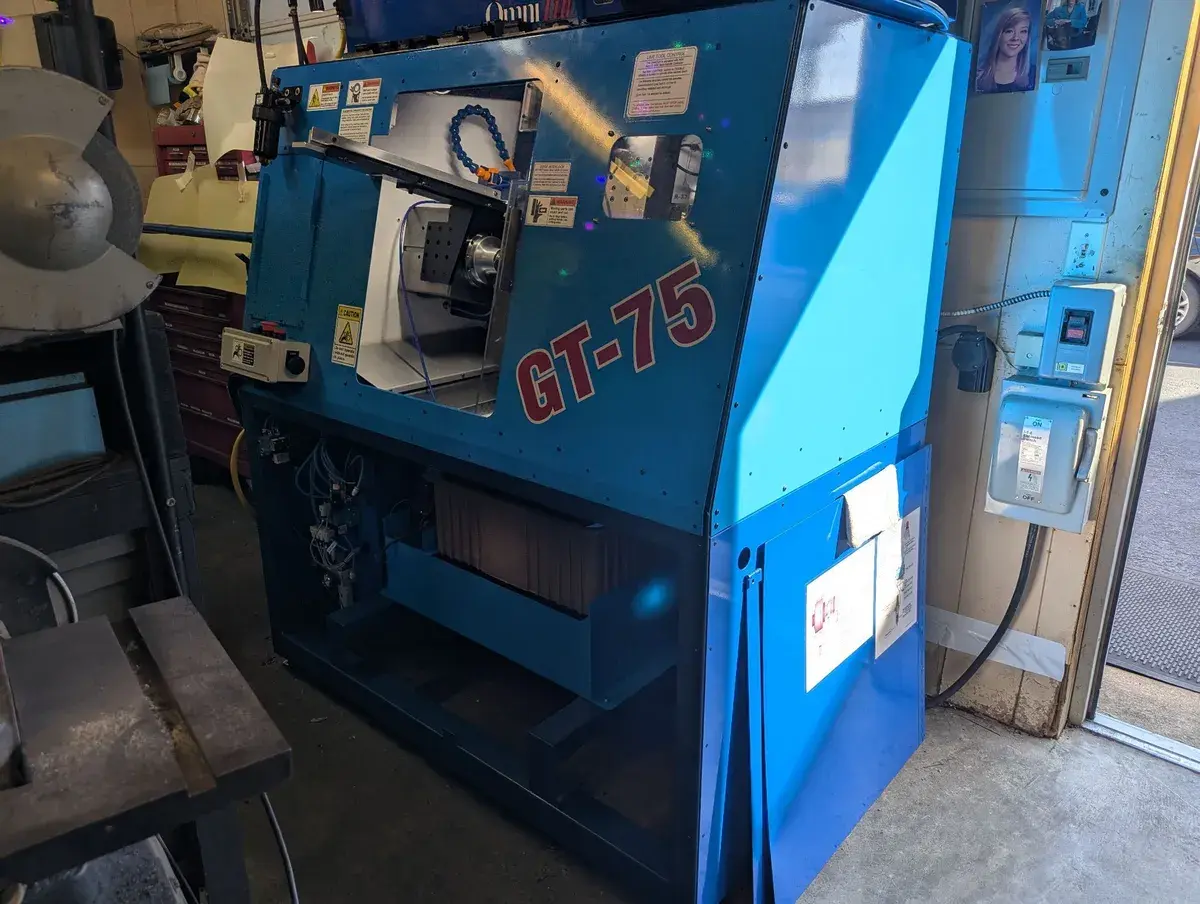

Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2000 Lbs.
Machine dimensions- 58” L x 36” W x 76” H
