Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.
Tooling height- ½”
Tooling plate size- 6” x 14”
Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Interenal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.
Machine hours- 82 (came out of a medical part mfg.)
#G4 OMNI TURN PC based two-axis CNC & slide, RS-232 port, USB

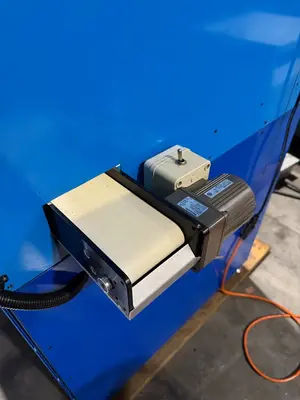

Parts conveyor option
Pneumatic collet drawbar with regulator (M function controlled)

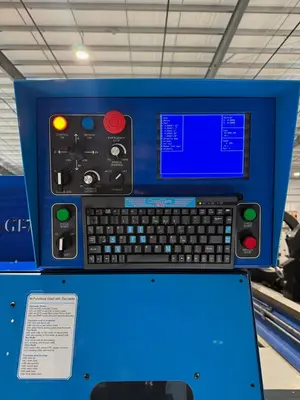

Operator station with dual palm cycle start buttons, collet control, and emergency stop
Spindle encoder for threading and IPR programing
Work light
Self-contained flood coolant system (M function controlled)

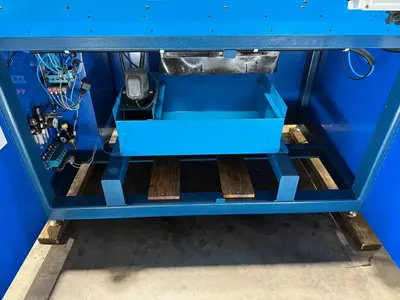

Removable chip pan

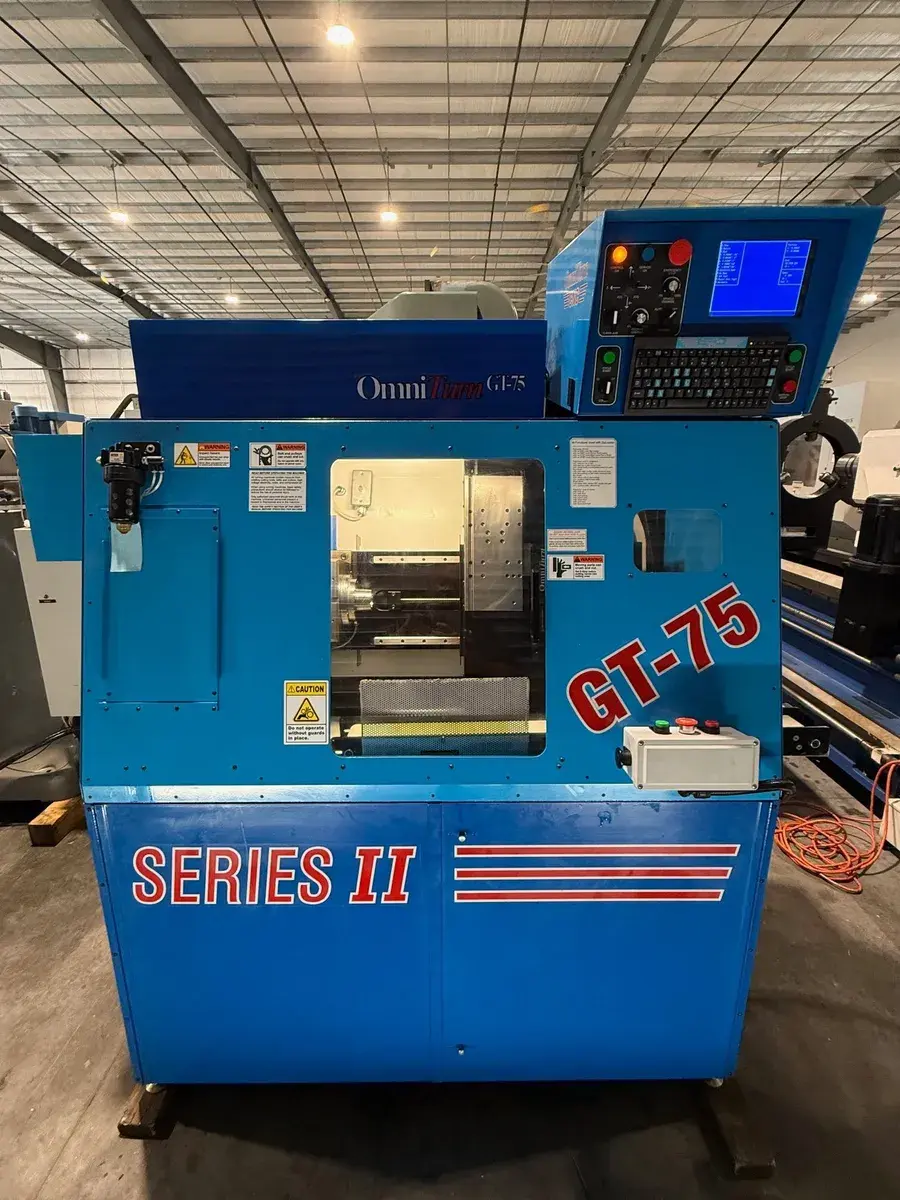

Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
This equipment is currently unavailable. Similar equipment available now is shown below.
