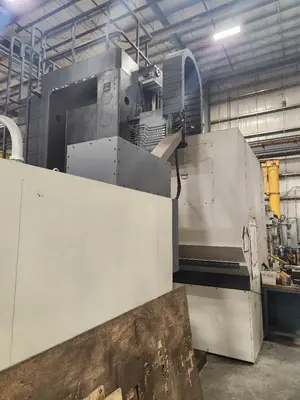

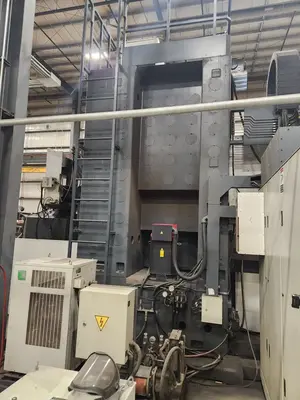

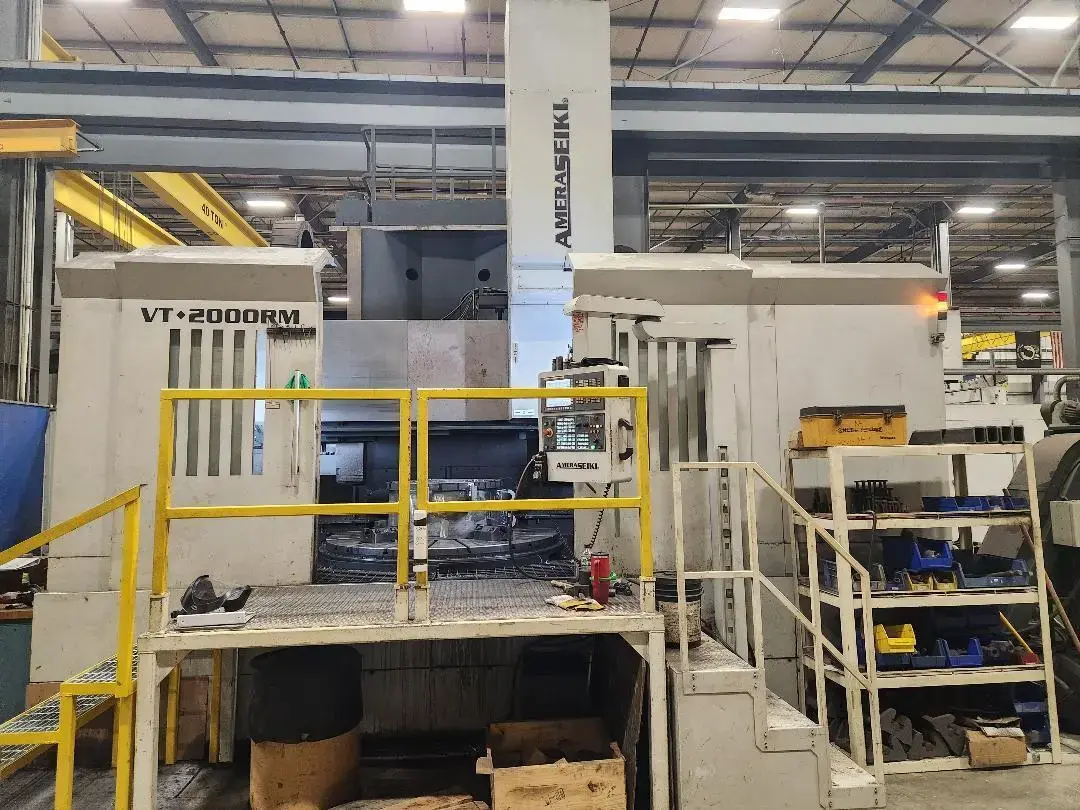

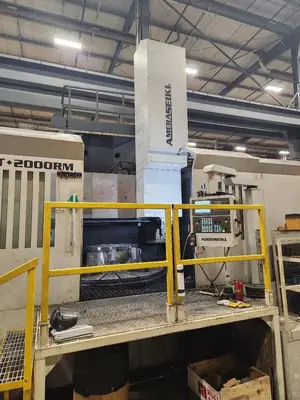

2018 AMERA SEIKI VT-2000R w/Live Tooling

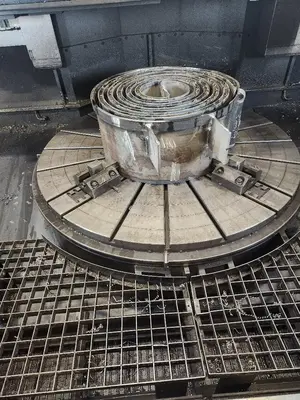

Table Diameter is a 4 jaw chuck mm (in.): 2000 (78.7)
Table Max. Swing Diameter mm (in.): 2100 (82.7)
Table Max. Cutting Diameter mm (in.): 2000 (78.7)
Table Max. Cutting Height mm (in.): 1600 (63)
Cross rail moving Height mm (in.): 1000 (6 step)
Table Max. Load kg (lbs.): 20,000 (44,000 lbs.)
Table Main Motor Hp.\Torque:(80\100HP) 29,480 Ft. Lbs.
Table Speed rpm: 10 ~ 450
Gear Box Speed Stages Range: 3 Speed
Live Tool Spindle Speed Rpm\Torque Hp.:3,000\353Ft. Lbs. 30Min
Live Spindle Power: 40/50 hp.

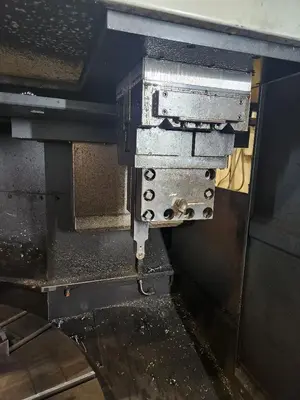

Ram Size mm2 (in2): 254 x 254 (10”x10”)

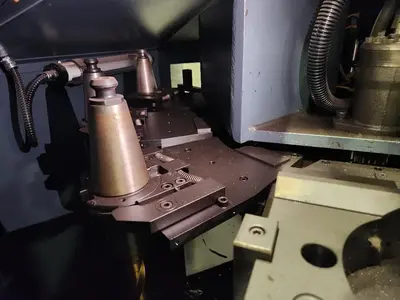

ATC Tool Number mm (in.): 12 / 24 (.47/.95)
Tool Specification mm (in.): Cat 50/Live tooling.
Tool Holder/Shank Specification mm (in.): 300x300 (11.8x11.8)
Rapid Feed Rate (X axis) m/min. (in./min.): 12 (472.4)
Rapid Feed Rate (Z axis) m/min. (in./min.): 12 (472.4)
Z Axis Ram Stroke Inches: 1250 (49.21)
X,Z Axis Motor kw/hp. αiF30: (7kw/10HP)
Horizontal Moving Travel X mm (in.): - 300 ~ 1700 (11.8~66.9)
Vertical Moving Travel Z mm (in.): 800 (31.5)
Cutting Feed Rate mm/rev (in./rev): 0.01 ~ 1000 (.0003 ~ 39.4)
Machine Weight Pounds: 122,041
Positioning Accuracy Inch: 0.0004”/40”
Repeatability Inch: 0.0002”
