2011 SAMSUNG SL 30
Have one to sell?
ConditionUsed
1 available

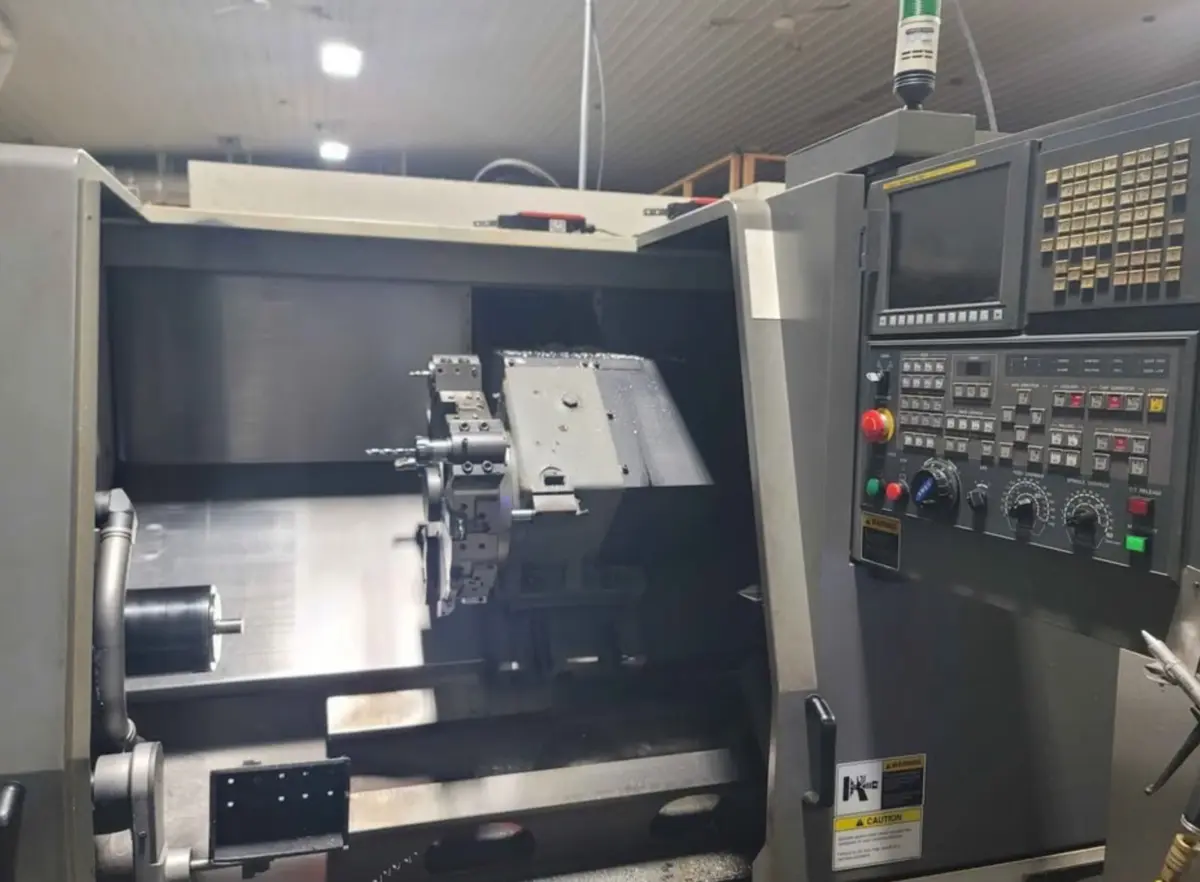

CNC Lathe, used condition. Features: 25.6" swing, 41.3" machining length, 2-axis, 12" chuck, 3.58" bar capacity, 30 hp, 2,500 RPM, includes Fanuc Oi-TD CNC, tailstock, chucks, and tool presetter.
Chuck Size: 12″
Bar Capacity: 3.5″
X-Axis Travel: 9.06″
Z-Axis Travel: 43.30″
Rapid Traverse (X/Z): 709 ipm / 945 ipm
Max Turning Diameter: 15.75″
Swing Over Bed: 25.59″
Swing Over Cross Slide: 18.90″
Maximum Turning Length: 41.34″
Spindle Speed: 2,500 RPM
Spindle Motor: 30 HP / 25 HP (cont./peak)
Spindle Nose: A2-8
Spindle Bore: 4.13″
Draw Tube ID: 3.58″
Guideways: Box way
Bed Type: 45° slant bed
Repeatability (X/Z): ±0.00012″ / ±0.00039″
Tool Stations: 12 (OD & ID capable)
Control Fanuc Oi-TD CNC, tailstock, 3″ thru spindle, tailstock, 10″ & 12″ Samschully chucks, S30 collet closer & pads, hard & soft jaws, spindle liners, parts catcher, chip conveyor, tool presetter, various tools and an Iemca barfeeder.
