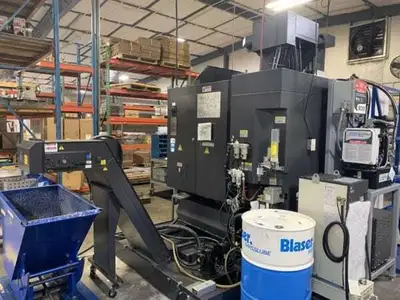

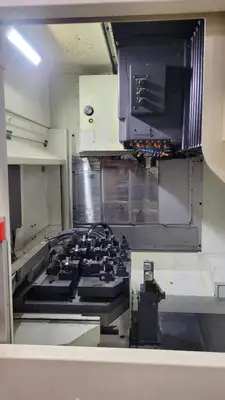

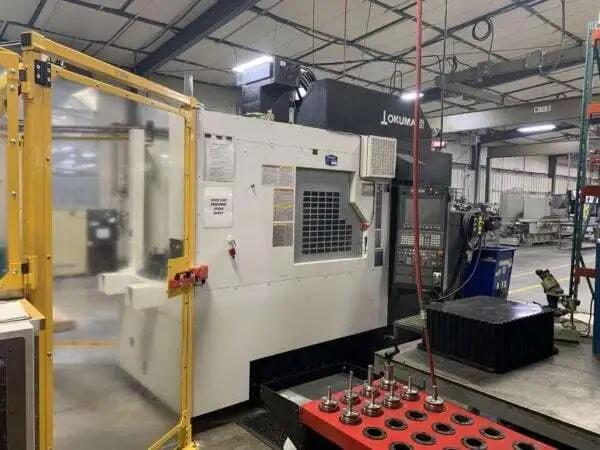

2019 OKUMA MF-46VA

TRAVEL
X‐axis travel (ram saddle right/left) 30.00 in
Y‐axis travel (table traverse F/R) 18.11 in (plus 100 mm APC travel)
Z‐axis travel (spindle up/down) 18.11 in
Spindle nose to table uppersurface ‐ (tapped pallet) 7.09 ‐ 25.02 in.
PALLET
Table Pallet Size: 29.92 x 18.11 in.
Pallet Top surface to floor height: USA std ‐ tapped 38.19
Pallet Load Capacity: Tapped hole – USA std. (tapped) 880 lb
SPINDLE
Spindle Speed Range: 35,000 RPM
Spindle Taper: HSK-F63
Max Output : 20 HP
Max Torque: 4.09 N.m
APC

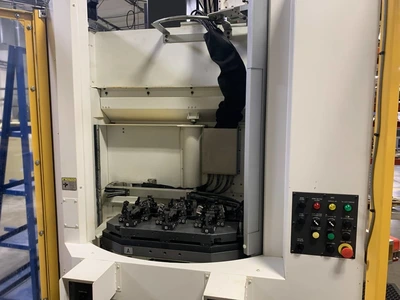

Pallet change system
USA Standard 2 pallet, rotary
APC Motor: OSP Servo Motor 2.7 hp
Pallet Change Time 7 seconds
ATC & MAGAZINE INCH METRIC
Tool magazine capacity: 48 ATC
FEED RATE INCH METRIC
Rapid traverse rate: X,Y 1,575 ipm
Rapid traverse rate: Z 1,259 ipm
Max Cutting feedrate/X‐/Y‐/Z‐axis 1,259 ipm
Jog Feed Rate 0.04 – 1,259 ipm
AXIS DRIVE
OTHER
Machine Height 116 in 2,946 mm
Floor Space 95 x 129 in 2,406 x 3,270 mm
Machine weight (with 20 station magazine ) 21,340 lb. 9,700 k
