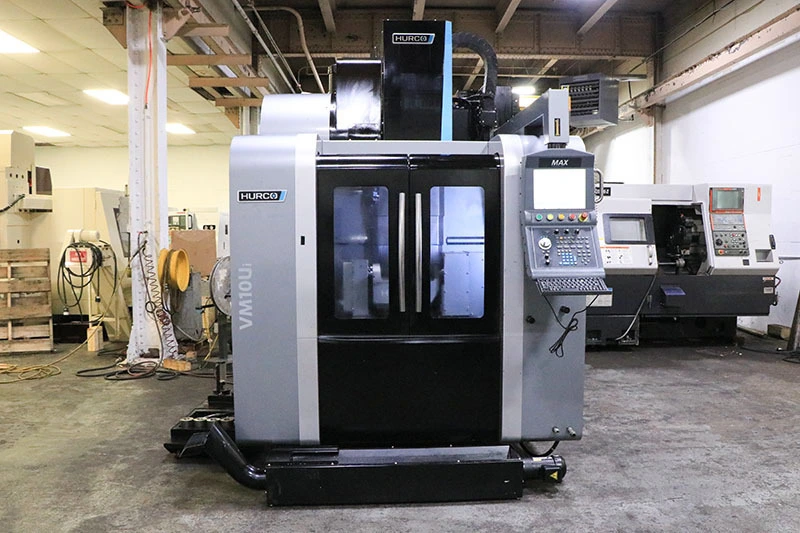

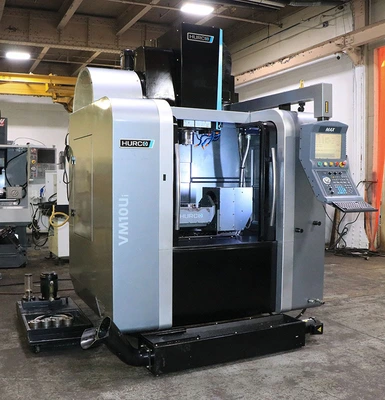

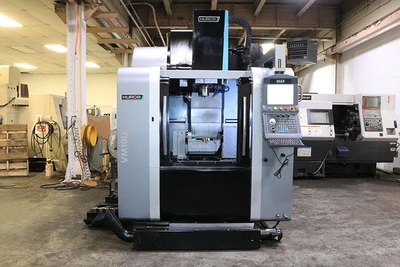

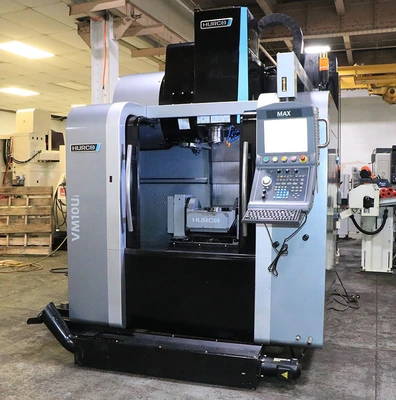

2013 HURCO VM10UI
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center, 5-Axis, 21"x16"x19" travel, 10,000 RPM, 20 ATC, CAT-40 taper. Features conversational control, 3D import, max 5-axis software, spindle chiller, coolant system.
PLATEN SIZE ........................... 7.8"
MAXIMUM WEIGHT ON TABLE ............... 330 LBS.
SPINDLE NOSE TO TABLE ................. 1.4" - 20.4"

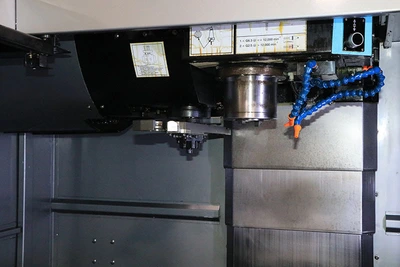

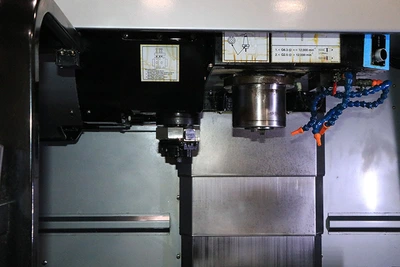

MAIN SPINDLE SPEEDS ................... 10,000 RPM
MAIN SPINDLE TAPER .................... 40 CT BIG PLUS
MAIN SPINDLE HORSE POWER .............. 15 HP
X - AXIS TRAVEL ....................... 21"
Y - AXIS TRAVEL ....................... 16"
Z - AXIS TRAVEL ....................... 19"

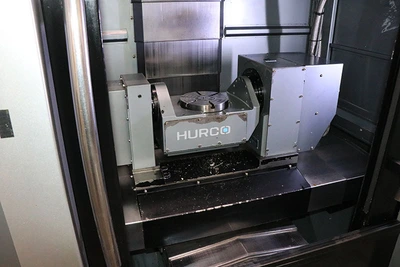

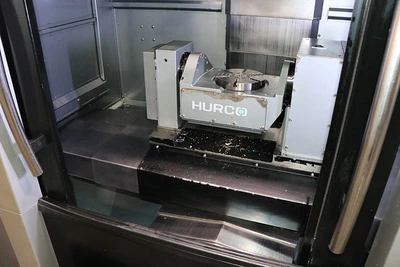

A - AXIS TRAVEL ....................... +30° / −110°
C - AXIS TRAVEL ....................... 360°
RAPID TRAVERSE RATE X, Y & Z AXIS ..... 945 IPM
RAPID TRAVERSE RATE A & C AXIS ........ 25 RPM
AUTOMATIC TOOL CHANGER ................ 20 ATC

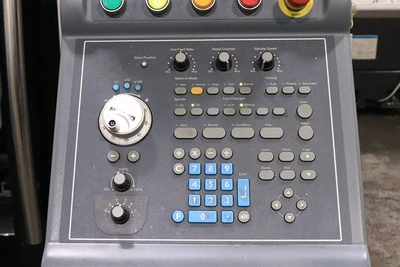

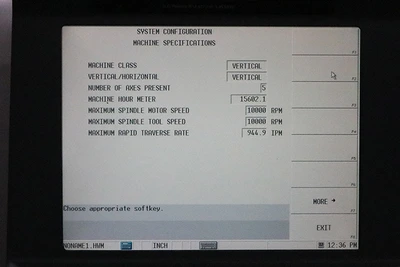

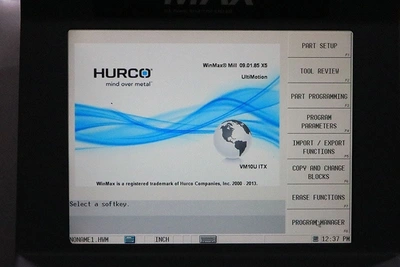

HURCO MODEL: MINMAX MILL CONVERSATIONAL CONTROL

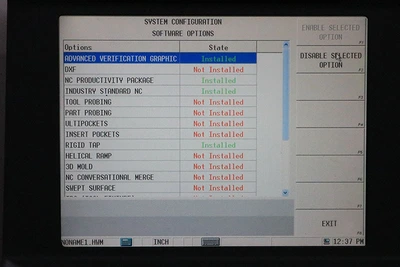

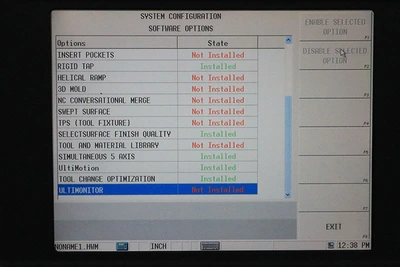

5-AXIS 5-SIDED SOFTWARE FEATURES-TOOL PATH LINEARIZATION
TOOL CENTER POINT MANAGEMENT, TRANFORM PLANE, 3D TOOL COMP
TOOL VECTOR INPUT & RETRACT, SHORTEST ANGULAR TRAVERSE
NC PRODUCTIVITY PACKAGE, RIGID TAPPING, ULTIMOTION

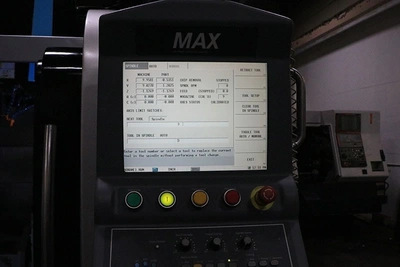

3D IMPORT, MAX5 W/ 19" LCD SCREEN
SPINDLE THERMAL CHILLER

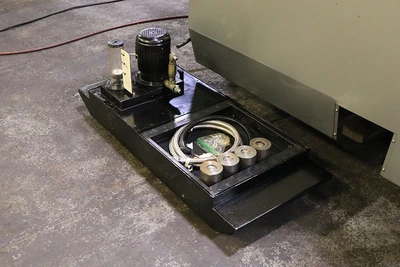

COOLANT SYSTEM
CHIP AUGE
