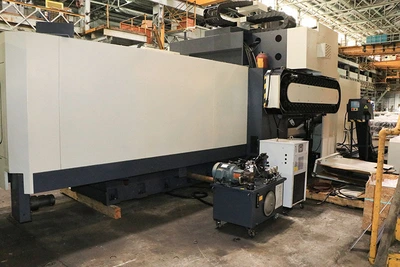

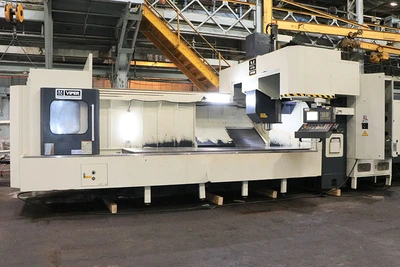

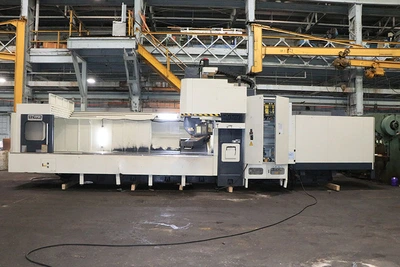

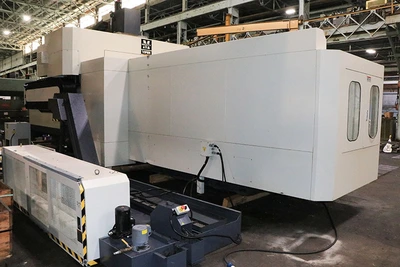

2017 MIGHTY PRO 4216AG
Have one to sell?
ConditionUsed
1 available

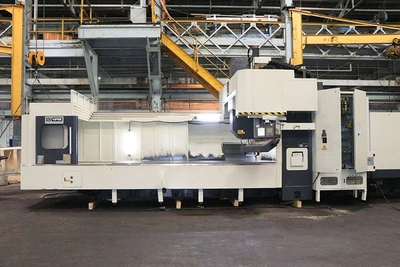

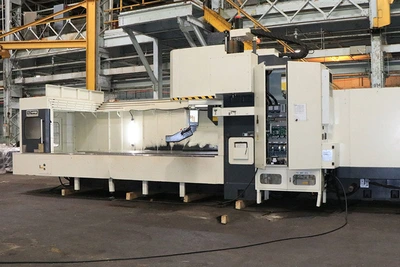

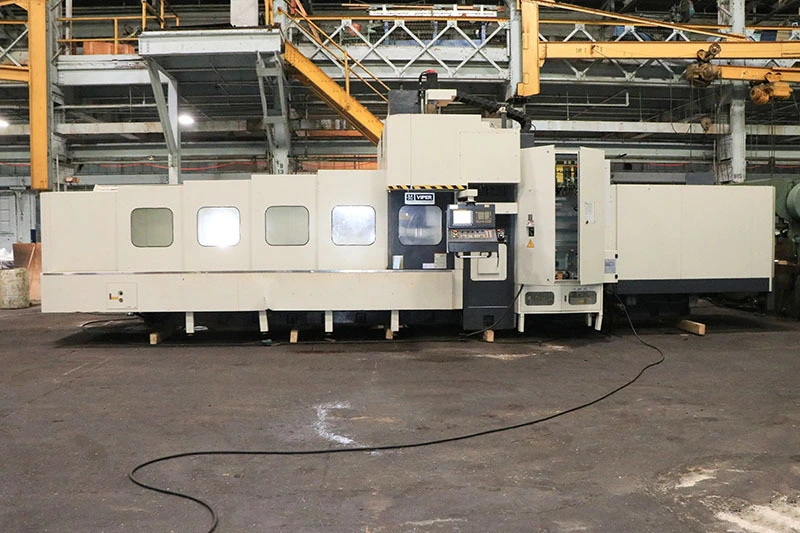

Gantry Machining Center. Used with 165"x63"x31.5" travel, 6,000 RPM spindle, 40 ATC, CAT 50 taper. Equipped with FANUC control, hydraulic counterbalance, spindle chiller, and coolant system.
LONGITUDINAL TRAVEL (X) AXIS ............ 165" / 4200mm
CROSS TRAVEL (Y) AXIS ................... 63" / 1600mm
VERTICAL TRAVEL (Z) AXIS ............... 31.5" / 800mm
TABLE TO SPINDLE MIN TO MAX ............. 5.9" / 37.4"
DISTANCE BETWEEN COLUMNS ................ 66.92" / 1700mm

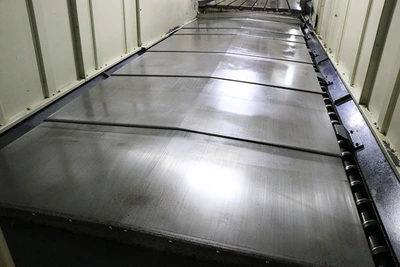

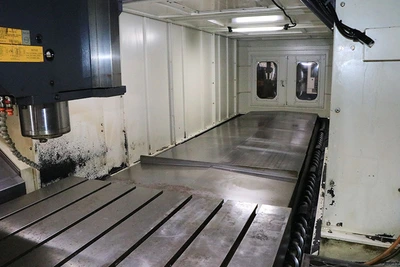

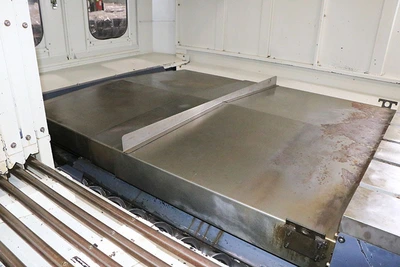

TABLE WORKING SURFACE ................... 86.6" X 43.3"
MAXIMUM WORKLOAD ON TABLE ............... 26,450 LBS
TABLE SURFACE ........................... GROUND / T-SLOTTED

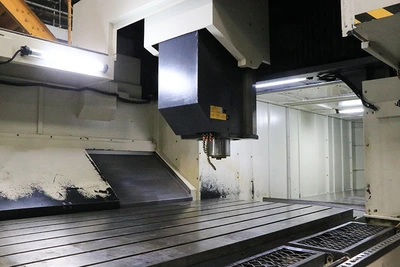

SPINDLE TAPER ........................... CT 50
SPINDLE SPEED TWO SPEED GERED HEAD ...... 0 - 6,000 RPM
TOOL STORAGE CAPACITY.................... 40 TOOLS
MAXIMUM TOOL LENGTH ..................... 15.74" / 400mm
MAXIMUM TOOL WEIGHT ..................... 44 LBS / 20 KG
MAX TOOL SIZE (NEXT SLOT EMPTY) ......... 9.64" / 245mm
TOOL SIZE (FULL TOOLS)................... 4.92 / 125mm
MACHINE WEIGHT (BASE MACHINE ONLY) ...... 62,500 LBS

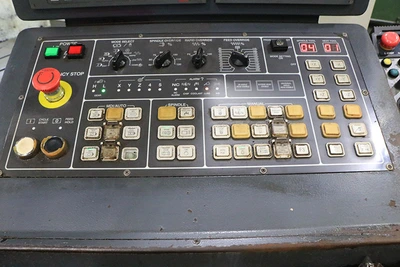

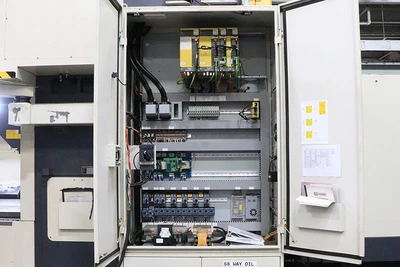

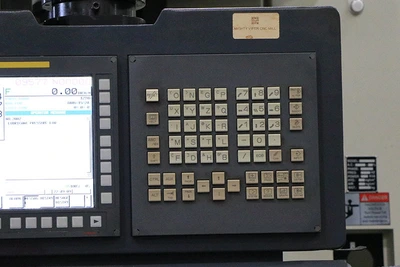

FANUC MODEL: 0I-MF FANUC CONTROL

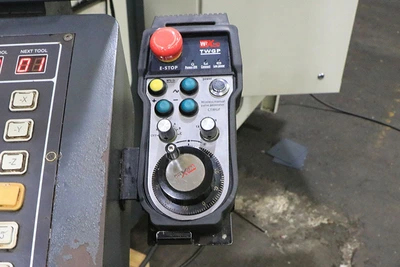

WIRELESS MANUAL PULSE GENERATOR (MPG)

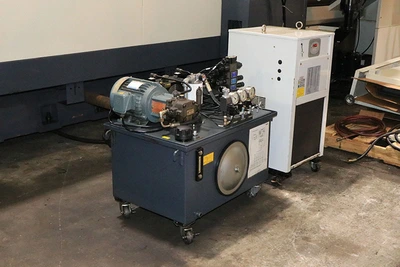

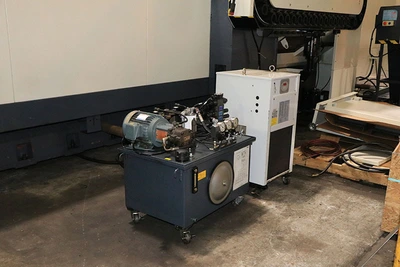

HYDRAULIC COUNTERBALANCE FOR HEADSTOCK
40 TOOL AUTOMATIC TOOL CHANGER
SPINDLE CHILLER

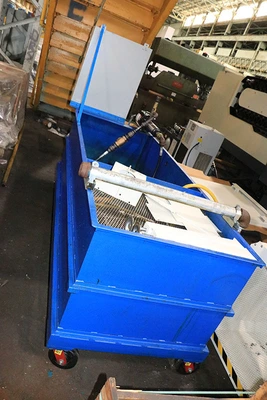

COOLANT SYSTEM

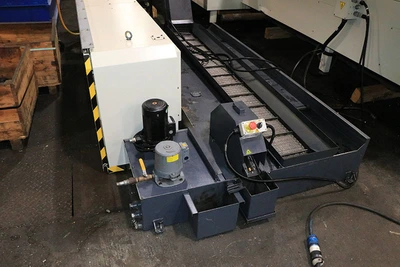

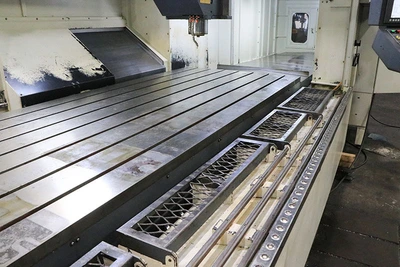

DUAL CHIP AUGERS TO SINGLE CHIP CONVEYOR

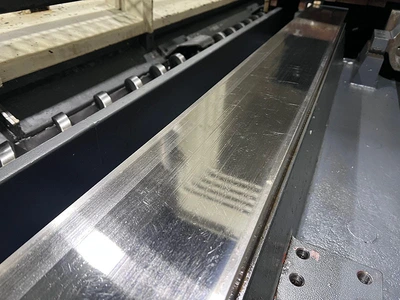

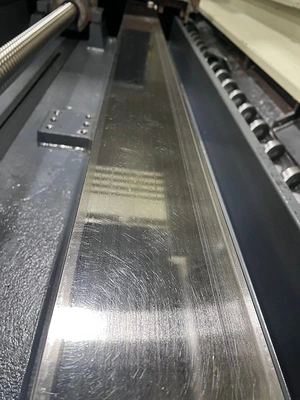

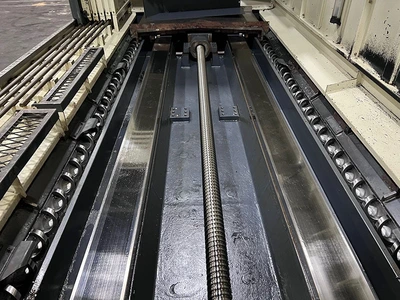

HARDENED & GROUND BOX WAYS
30 HORSE POWER SPINDLE MOTOR
